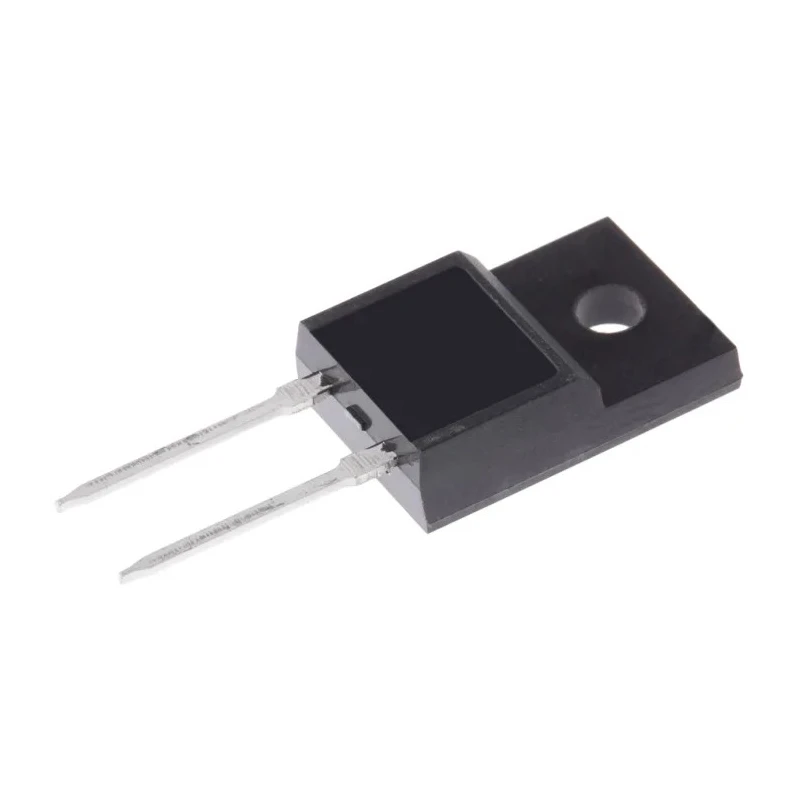

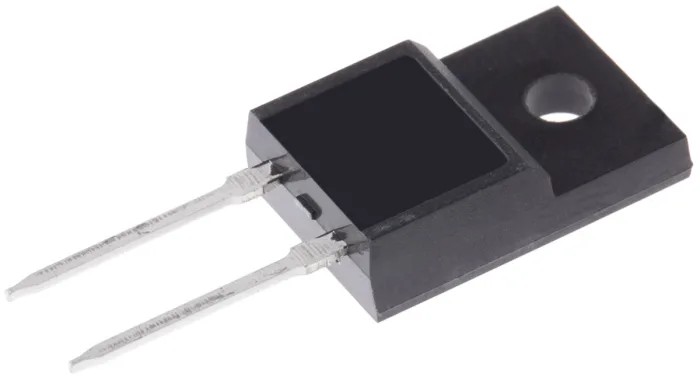

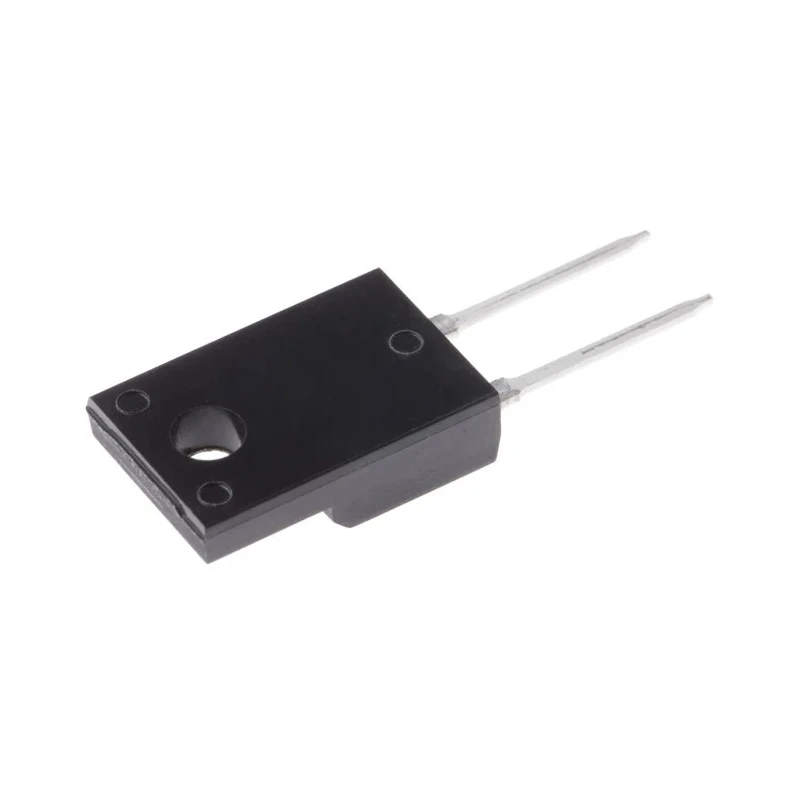

STMicroelectronics 600 V 5 A Single Switching Diode Through Hole TO-220 STTH5L06FP

The STMicroelectronics STTH5L06FP is a single switching diode designed for power electronic applications requiring high voltage and current handling capabilities. It is housed in a robust TO-220 package suitable for through hole mounting, providing ease of installation and excellent thermal dissipation.

Featuring a maximum continuous forward current of 5 amperes and a peak reverse repetitive voltage of 600 volts, this diode meets stringent requirements for switching and rectification tasks in industrial and electronic circuits.

Its fast recovery time of 95 nanoseconds minimizes switching losses, enhancing circuit efficiency in power management and converter systems. The diode’s peak non-repetitive forward surge current of 90 amperes enables it to withstand transient current surges without damage.

Designed to operate reliably in temperatures ranging from -65°C to 175°C, the STTH5L06FP is suitable for demanding environments including industrial automation, consumer electronics, and power supply units. The forward voltage drop of 1.3 volts helps reduce power dissipation, increasing overall system performance.

With a compact form factor including dimensions of approximately 10.4 mm length, 4.6 mm width, and 9.3 mm height, this component supports efficient layout designs. Its 2-pin configuration ensures straightforward integration in electronic assemblies.

This diode offers maximum continuous forward current of 5 amperes. It supports peak reverse repetitive voltage up to 600 volts. The switching rectifier diode has a fast recovery time of 95 nanoseconds. Designed for high surge currents with peak non-repetitive forward surge current rating of 90 amperes.

Operates over a temperature range from -65°C to 175°C for versatile environment tolerance. The diode features a low forward voltage drop of 1.3 volts to improve efficiency. Constructed in a TO-220 package suitable for through hole mounting applications.

Pin configuration includes 2 pins for easy integration in electronic circuits.

This diode is widely used in power supply rectifiers, switching regulators, and industrial electronic applications requiring reliable and efficient diode switching components. It is well suited for use in laboratory and manufacturing equipment, HVAC controls, and automotive electronics that demand robust semiconductor devices.
