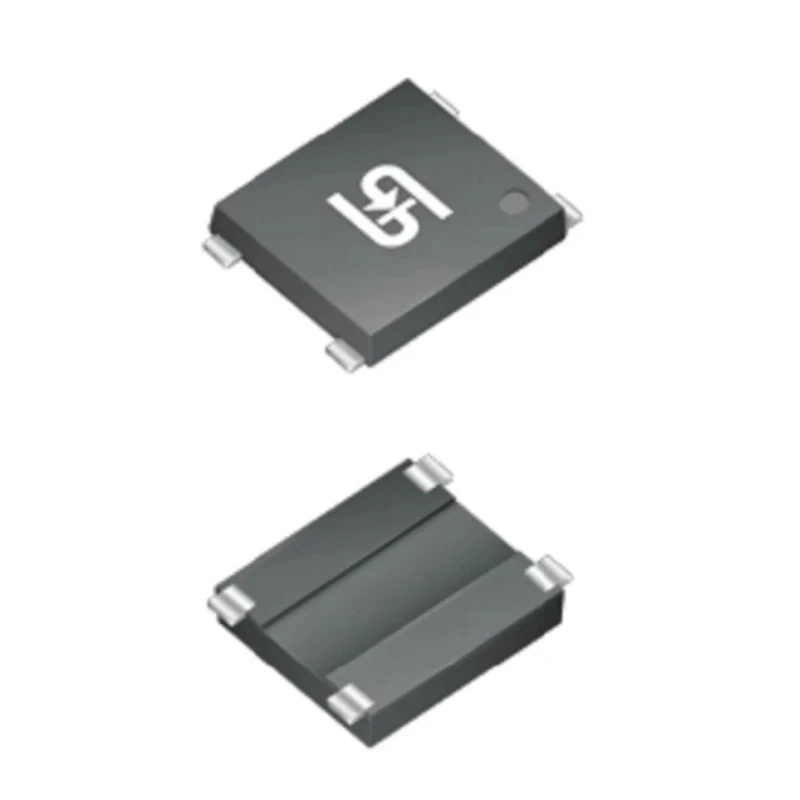

Taiwan Semiconductor Bridge Rectifier, Quad Configuration, 1000 V Peak Reverse Repetitive Voltage, 110 A Surge YBS3007G

Taiwan Semiconductor YBS3007G Bridge Rectifier is a high-performance semiconductor component designed for power rectification applications requiring up to 1000 V peak reverse repetitive voltage and high surge current capability of 110 A. This 4-pin quad configuration device uses a YBS package and surface mount type suitable for automated PCB assembly.

The device operates reliably within a temperature range of -55°C to 150°C and features a low peak forward voltage of 1 V to maximize efficiency and minimize power loss. Its glass passivated chip junction enhances stability and longevity, while the molded plastic construction offers robust protection and cost-effectiveness.

Fully RoHS compliant and certified to standards IEC 61249-2-21 and UL, the YBS3007G is suitable for industrial and commercial applications such as switching mode power supplies, power adapters, and lighting control units. The low moisture sensitivity level 1 classification supports automated placement and soldering procedures.

Other notable features include halogen-free materials according to IEC 61249-2-21 and high surge current tolerance, making it ideal for demanding electrical environments requiring durability and performance.

This bridge rectifier features a surface mount type with a YBS package. It supports a maximum operating temperature of 150°C and a minimum of -55°C. The quad configuration and 4-pin count are suitable for compact PCB designs.

With a peak forward voltage of 1 V and forward current rating of 3 A, it ensures efficient rectification. It complies with IEC 61249-2-21, RoHS, and UL standards, assuring quality and safety. The device uses a glass passivated chip junction for durability and stability.

Designed for applications such as switching mode power supplies, adapters, and lighting systems. Low moisture sensitivity level 1 as per J-STD-020 supports automated manufacturing processes. Explore more semiconductor components and Bridge Rectifiers at EnvMart to find compatible parts for your industrial, electronic, and commercial projects.
