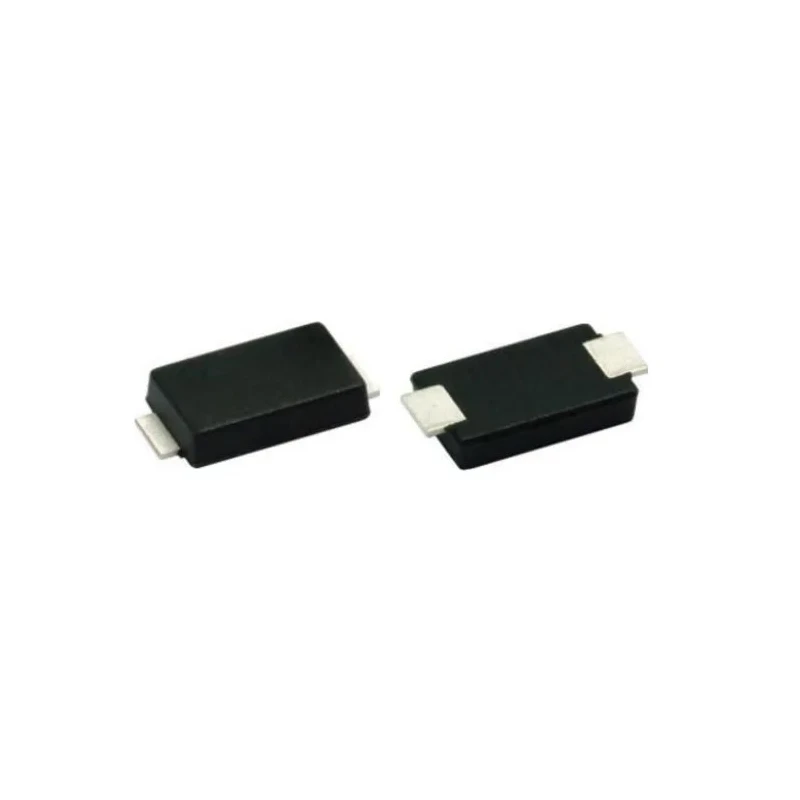

Vishay 100 V 3 A Surface Mount Rectifier & Schottky Diode DO-221AC VSSAF3M10HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 5.35mm |
| Model | VSSAF3M10HM3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | AEC-Q101, JESD 201 Class 2 whisker test, UL 94 V-0, RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 0.72V |
Key Features
- Features a surface mount package type DO-221AC for compact PCB integration.
- Utilizes trench MOS Schottky technology for low forward voltage drop and high efficiency.
- Rated for peak non-repetitive forward surge current of 80 A, suitable for surge applications.
- Operates reliably between -40°C and 175°C operating temperature range.
- Complies with automotive standard AEC-Q101 and industry standards including RoHS and UL 94 V-0.
- Single diode configuration ensures efficient rectification performance.
Product Description
Vishay VSSAF3M10HM3/H is a high-performance 100 V, 3 A surface mount Rectifier and Schottky Diode encased in the DO-221AC package. Designed with trench MOS Schottky technology, this device offers low forward voltage drop and high efficiency, reducing power losses in various electronic applications.
The diode supports a maximum continuous forward current of 3 A and withstands a peak reverse repetitive voltage of 100 V, making it ideal for low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits in commercial, industrial, and automotive environments.
This model is qualified to automotive standard AEC-Q101 and meets stringent reliability and quality standards including JESD 201 Class 2 whisker testing, UL 94 V-0 flammability rating, and RoHS compliance. It operates within a wide temperature range from -40°C to 175°C, ensuring durability under harsh conditions.
The compact dimensions of 5.35 mm length, 2.7 mm width, and 1 mm height allow for an ultra-low profile suitable for automated PCB assembly, especially beneficial for modern dense circuit designs.
Surface mount DO-221AC package ensures easy and reliable PCB integration. Trench MOS Schottky technology minimizes forward voltage drop and power dissipation. High peak non-repetitive forward surge current rating of 80 A for surge tolerance.
Wide operating temperature range from -40°C to 175°C supports diverse applications. Meets automotive and industrial standards assuring high quality and reliability. Single diode configuration designed for efficient rectification and protection.
Suitable for use in power supplies, automotive electronics, and DC/DC converter circuits.
This Vishay Schottky diode is ideal for industrial, automotive, electronic component manufacturing, and power management applications. Its low profile and robust construction make it suitable for advanced electronic designs requiring reliable and efficient rectification.
Explore similar Schottky diode products and other semiconductor components at EnvMart for all your electronics manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 3 A.
It withstands a peak reverse repetitive voltage of 100 V.
The dimensions of the DO-221AC package are 5.35 mm in length, 2.7 mm in width, and 1 mm in height.
This diode operates reliably within a temperature range of -40°C to 175°C.
The peak non-repetitive forward surge current rating is 80 A.
It complies with automotive standard AEC-Q101, UL 94 V-0, and RoHS, and has passed JESD 201 Class 2 whisker testing.
This model features a surface mount design, specifically in the DO-221AC package.
The maximum forward voltage drop is 0.72 V.
It has a single diode configuration, designed for efficient rectification performance.
This diode is suitable for use in low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits.
The peak reverse current is 200 μA.
It utilizes trench MOS Schottky technology, which provides low forward voltage drop and high efficiency.
