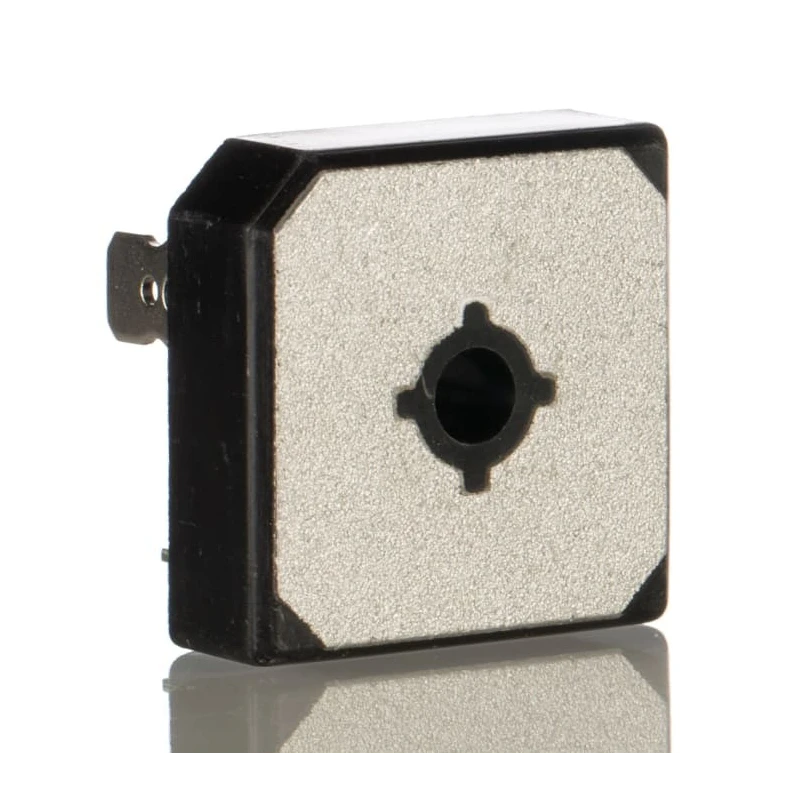

Vishay Bridge Rectifier 100 V 420 A 4-Pin Single VS-26MB10A

Name: Vishay Bridge Rectifier 100 V 420 A 4-Pin Single VS-26MB10A
Brand: Vishay
SKU: 308054
Price: 890.53 INR
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	9.8mm
Length	28.5mm
Model	VS-26MB10A
Width	28.5mm
Mount Type	Screw
Series	VS-26MB
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-34
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	100V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Forward Current If	25A
Peak Forward Voltage Vf	1.25V
Universal, 3 way terminals	push-on, wrap around, or solder
Vishay Bridge Rectifier, 400 V 420 A, 4-Pin SingleBrand	Vishay

Key Features

Operates efficiently with a forward current rating of 25 A.
Encapsulated D-34 package ensures compact size and excellent thermal conductivity.
High surge current tolerance with peak non-repetitive forward surge current of 420 A.
Operates in temperature range of -55°C to 150°C for robust industrial use.
Nickel plated solderable terminals support lead-free soldering at 260°C to 275°C.
Electrically insulated case with center hole fixing for easy installation.
Peak forward voltage of 1.25 V minimizes losses during operation.
Low peak reverse current of 10 μA ensures efficient blocking capabilities.

Product Description

Vishay VS-26MB10A Bridge Rectifier is a single-phase, single-configuration, 4-pin discrete semiconductor device designed for converting alternating current (AC) to direct current (DC) in full-wave rectification applications. It supports a peak reverse repetitive voltage (Vrrm) of 100 V and a maximum surge current capacity of 420 A, ensuring dependable operation in demanding industrial environments.

The rectifier comes in a compact D-34 package featuring high thermal conductivity and an electrically insulated case with a center hole, facilitating efficient heat dissipation and secure mounting options. Its universal 3-way terminals - push-on, wrap around, or solder - provide versatile installation methods to suit different assembly processes.

Operating temperature ranges from -55°C to 150°C make this model suitable for rigorous industrial conditions. Nickel-plated terminals comply with lead-free soldering standards (Sn/Ag/Cu SAC305 solder alloy), withstanding soldering temperatures between 260°C and 275°C.

This bridge rectifier is ideal for use in general power electronic circuits, instrumentation, power supplies, and industrial equipment where full-wave rectification and high surge current tolerance are required. The low forward voltage drop of 1.25 V and minimal reverse leakage current of 10 μA optimize efficiency and reduce thermal losses during operation.

Reliable single-phase full-wave rectification in industrial and instrumentation applications. Compact encapsulated D-34 package with excellent power-to-volume ratio. Flexible mounting options with universal 3-way terminals.

High surge current rating for transient tolerance. Wide operating temperature range for harsh environments. Lead-free solderable nickel-plated terminals for durability and compliance. Electrically insulated case enhances safety and installation convenience.

This product is part of Vishay's VS-26MB series of bridge rectifiers known for industrial-grade reliability and performance. Suitable for electronics manufacturing, HVAC systems, power supply units, and other industrial machinery requiring robust rectification components.

Browse more semiconductor Bridge Rectifiers and related electronic components on EnvMart for comprehensive sourcing solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The peak reverse repetitive voltage (Vrrm) of the VS-26MB10A is 100 V.

It has a maximum surge current capacity of 420 A, making it suitable for high transient applications.

The D-34 package has a height and width of 28.5 mm and a height of 9.8 mm.

The bridge rectifier operates efficiently with a forward current rating of 25 A.

The operating temperature range for the VS-26MB10A is from -55°C to 150°C.

It features universal 3-way terminals that can be push-on, wrap around, or soldered for versatile installation.

The peak forward voltage drop is 1.25 V, which minimizes losses during operation.

The peak reverse current (Ir) is rated at 10 μA, ensuring efficient blocking capabilities.

The mounting type for the VS-26MB10A is screw, allowing for secure installation.

Yes, it has an electrically insulated case which enhances safety and installation convenience.

This model is suitable for general power electronic circuits, instrumentation, power supplies, and industrial equipment requiring full-wave rectification.

The country of origin for the VS-26MB10A is India.
