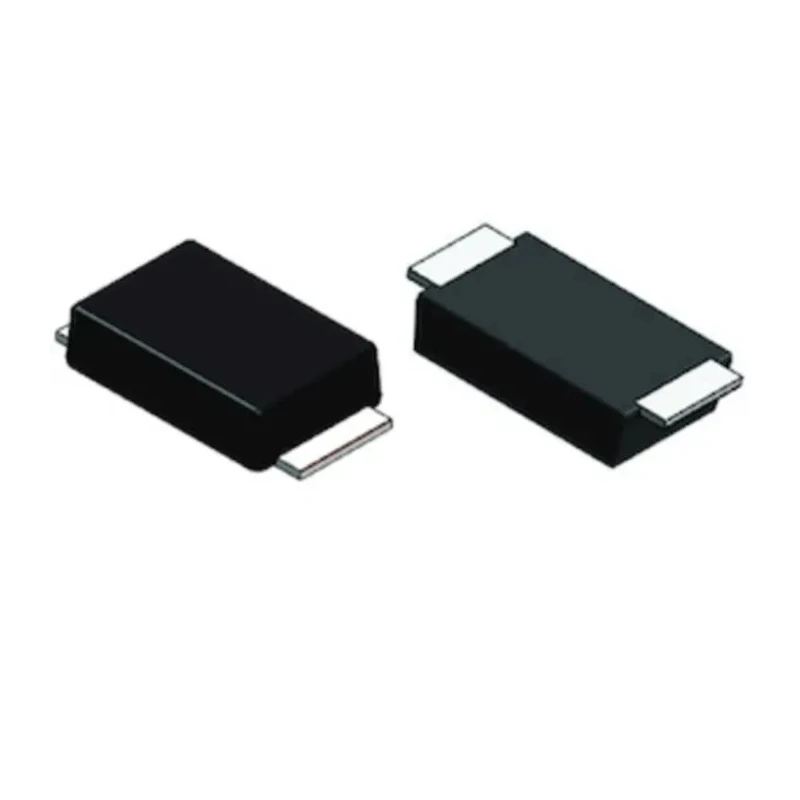

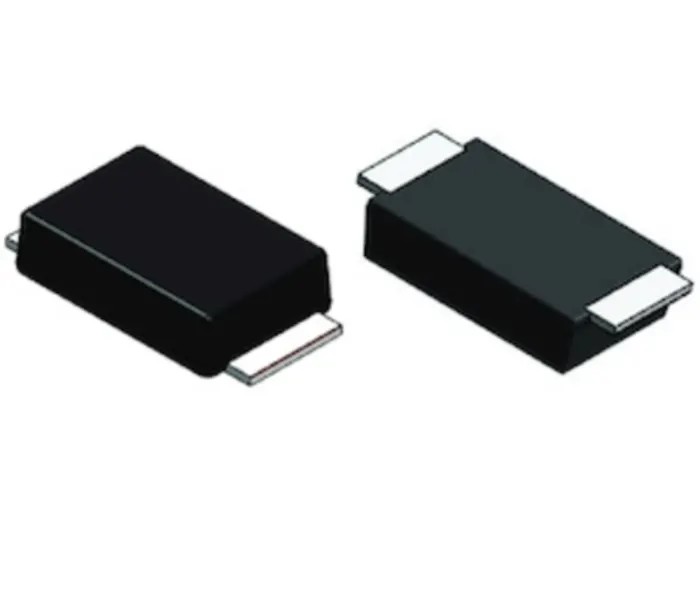

Vishay 100 V 3 A General Purpose Surface Mount Diode DO-221AD VS-3EYH01-M3/H

Vishay VS-3EYH01-M3/H is a general purpose single diode designed for surface mount applications in a compact DO-221AD package. Rated for a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 100 V, it provides reliable operation in demanding environments.

This diode exhibits a low forward voltage drop of 0.79 V which helps reduce power loss and increase overall efficiency in electronic circuits. Its fast recovery time of 16 ns makes it suitable for use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

The device supports a wide operating temperature range from -55°C to 175°C, making it suitable for industrial, automotive, and commercial electronics design. The small 2-pin DO-221AD package with dimensions of 2.7 mm in height and 5 mm in length enables automated placement and supports compact PCB layouts.

With a peak non-repetitive forward surge current of 70 A and low leakage current, the VS-3EYH01-M3/H diode is a high performance component for power rectification and switching tasks. It belongs to Vishay's eSMP series of hyper-fast rectifier diodes optimized for fast switching speeds and low power losses.

Manufactured in China, this diode delivers dependable performance under harsh operating conditions and is RoHS compliant. It is ideal for use in industrial control systems, automotive electronic subsystems, power supplies, and consumer electronics requiring effective power management.

Set yourself up for success with Vishay's VS-3EYH01-M3/H diode for versatile electronic circuit applications demanding speed, low voltage drop, and thermal reliability. Provides low forward voltage drop of 0.79 V to minimize power losses.

Capable of maximum continuous forward current of 3 A. Withstands peak reverse repetitive voltage of 100 V for reliable operation. Features peak non-repetitive forward surge current of 70 A. Operates efficiently in temperature range from -55°C to 175°C.

Offers fast recovery time of 16 ns, suitable for high-frequency circuits. Designed as single diode configuration in the eSMP series. Ideal for use in industrial, automotive, and commercial electronics. Compact 2.7 mm height and 5 mm length package for automated placement.

Low leakage current ensures energy efficiency in DC/DC converters and polarity protection. Explore a wide range of Vishay semiconductor components available at EnvMart for industrial and commercial applications.
