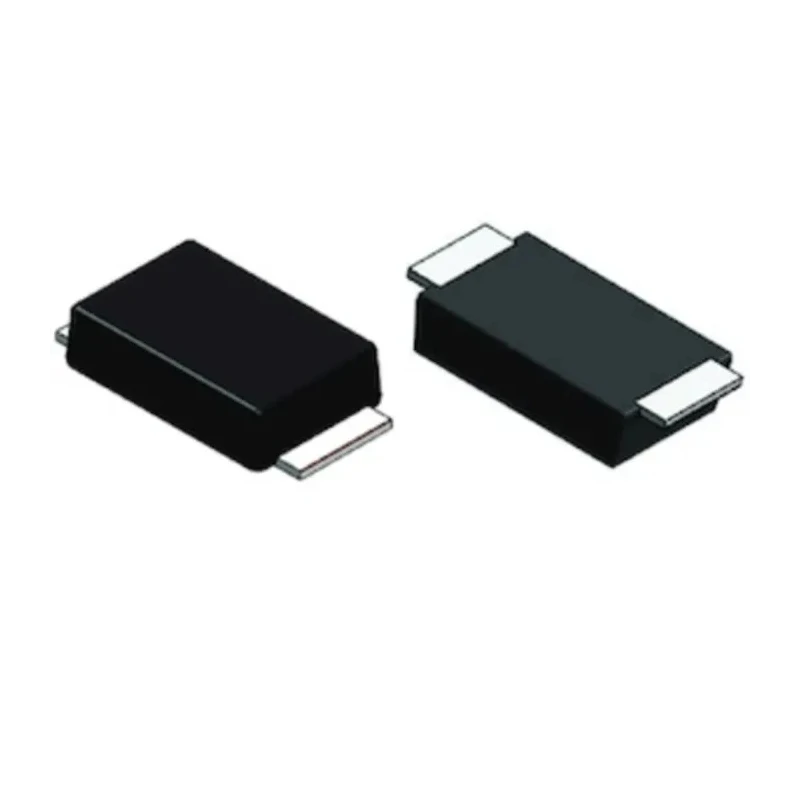

Vishay 200 V 3 A General Purpose Diode Surface Mount DO-221AD VS-3EYH02-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VS-3EYH02-M3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 0.71V |
| Peak Reverse Recovery Time trr | 16ns |
Key Features
- Designed for general purpose rectification and switching applications.
- Features low forward voltage drop of 0.71 V for efficient power handling.
- Peak non-repetitive forward surge current up to 70 A ensures robustness.
- Operating temperature range from -55°C to 175°C for wide environmental conditions.
- Fast recovery time of 16 ns supports high frequency operation.
- Low leakage current with peak reverse current at 2 μA to minimize losses.
- Compact dimensions with 5 mm length and 2.7 mm height in DO-221AD package.
- Suitable for use in industrial, commercial, automotive, and power electronics circuits.
Product Description
Vishay VS-3EYH02-M3/H is a general purpose diode designed for efficient rectification and switching in various applications. It supports a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 200 V, packaged in a compact surface mount DO-221AD form factor. This diode features a low forward voltage drop of 0.71 V, minimizing power losses in high frequency inverter circuits, DC/DC converters, freewheeling, and polarity protection setups.
The device operates reliably over a temperature range from -55°C to 175°C, making it suitable for harsh industrial and automotive environments. Its peak non-repetitive forward surge current rating of 70 A ensures it can withstand transient current spikes. The fast recovery time of 16 ns enables efficient switching and reduces switching losses.
The diode’s minimal leakage current with a peak reverse current of only 2 μA enhances efficiency. Its 2-pin DO-221AD package with dimensions of 5 mm length and 2.7 mm height is optimized for automated surface mount assembly on PCBs.
This Vishay diode series is ideal for use in power supplies, motor drives, industrial automation, and automotive electronic circuits requiring robust, reliable rectification and protection solutions.
General purpose rectifier suitable for power electronics applications. Low forward voltage drop reduces power dissipation. High surge current tolerance for transient protection. Wide operating temperature range for varied environments.
Fast switching capability with short recovery time. Low leakage current minimizes efficiency loss. Compact surface mount package enhances mounting flexibility. Applications include inverters, DC/DC converters, and polarity protection.
Manufactured according to industry standards with China as country of origin. Discover more Vishay semiconductor components and explore our complete range of Diodes at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-3EYH02-M3/H is 3 A.
This model has a peak reverse repetitive voltage rating of 200 V.
The diode features a low forward voltage drop of 0.71 V.
The peak non-repetitive forward surge current rating is 70 A.
It operates reliably within a temperature range from -55°C to 175°C.
The diode has a fast recovery time of 16 ns.
The dimensions of the DO-221AD package are 5 mm in length and 2.7 mm in height.
The peak reverse current is 2 μA, which helps minimize losses.
This diode is designed for surface mounting.
It is suitable for use in inverters, DC/DC converters, and polarity protection, among other applications.
The diode has a pin count of 2.
This model belongs to the eSMP series of diodes.
