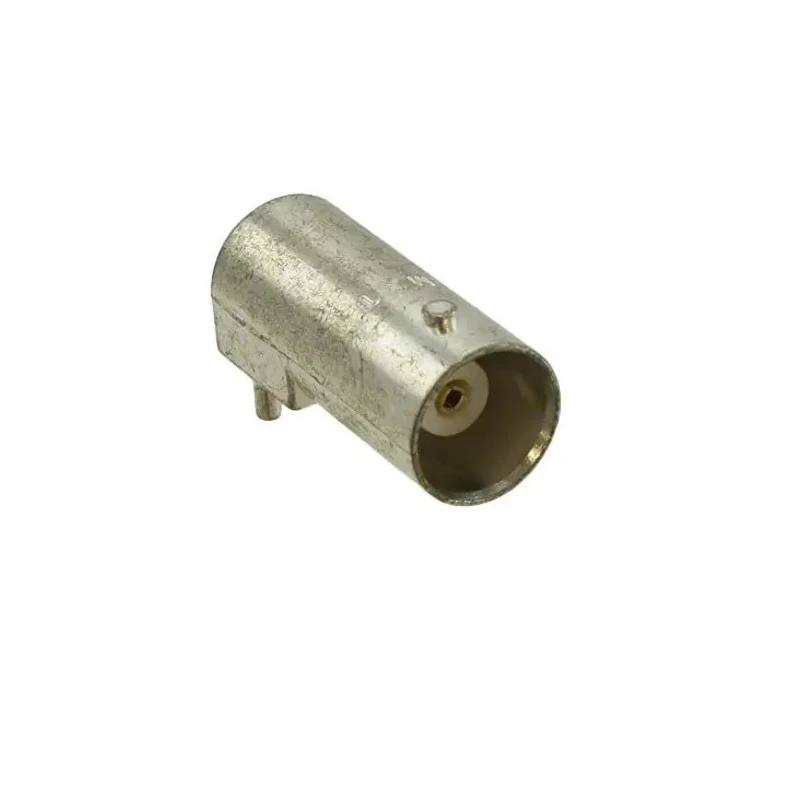

Molex 73101 Series Coaxial Connector BNC Female 50 Ω Right Angle Body Through Hole 731000154
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Molex |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Operating Frequency | 2GHz |
| Series | 73101 |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 230°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | EU RoHS China RoHS Compliant |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Tin Plated |
Key Features
- Right angle orientation optimizes PCB layout space.
- Tin plated zinc alloy body provides corrosion resistance.
- Through hole mount ensures secure mechanical and electrical connection.
- Operates reliably at temperatures up to 230°C.
- Conforms to EU RoHS and China RoHS environmental standards.
- Maintains 50 Ω impedance for consistent signal integrity.
- Female BNC connector suitable for high-frequency applications.
- Standard size compatible with common coaxial cable assemblies.
Product Description
Molex 731000154 is a 73101 Series coaxial connector featuring a BNC type female connector with a right angle body designed for through hole mounting. It supports impedance of 50 Ω, making it ideal for high frequency signals up to 2 GHz.
The connector body is made of zinc alloy with tin plating which provides effective corrosion resistance, ensuring durability and stable performance in various industrial and electronic applications.
This connector is rated for maximum operating temperatures of 230°C, suitable for demanding environments including telecommunications equipment, laboratory instrumentation, and RF test setups.
With a standard size and normal polarity, it offers ease of installation in printed circuit boards requiring reliable coaxial connections. The through hole termination type guarantees a strong mechanical and electrical mounting.
The product complies with EU and China RoHS directives, making it environmentally friendly and safe for use in modern electronic systems. Right angle orientation optimizes PCB layout space. Tin plated zinc alloy body provides corrosion resistance.
Through hole mount ensures secure mechanical and electrical connection. Handles operating frequencies up to 2 GHz for RF applications. Rated for maximum temperature of 230°C ensuring reliability. Standard size and normal polarity for compatibility.
Female BNC connector guarantees quality signal connection. Compliant with EU RoHS and China RoHS standards. Manufactured in Taiwan ensuring high product quality.
This Molex coaxial connector finds extensive use in industrial electronics, communication infrastructure, laboratory equipment, and other commercial RF connectivity applications. It offers a robust solution for signal transmission requiring stable and precise connection, supporting system integrity.
Explore more high-quality Coaxial Connectors and related electronic components in the Molex series at EnvMart for diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of 2 GHz, making it suitable for high-frequency applications.
It maintains a 50 Ω impedance, which is essential for consistent signal integrity in RF applications.
The connector is rated for a maximum operating temperature of 230°C, ensuring reliability in demanding environments.
This model features a through hole mount type, ensuring a secure mechanical and electrical connection.
It has a right angle orientation, which optimizes PCB layout space for efficient design.
Yes, it conforms to EU RoHS and China RoHS environmental standards, making it safe for use in modern electronic systems.
The body is made of zinc alloy with tin plating, providing effective corrosion resistance.
This connector features a female BNC type, suitable for a variety of RF connectivity applications.
It is suitable for use in telecommunications equipment, laboratory instrumentation, and RF test setups.
It is classified as a standard size, ensuring compatibility with common coaxial cable assemblies.
This model has a normal polarity, which is typical for BNC connectors.
It is manufactured in Taiwan, ensuring high product quality.
