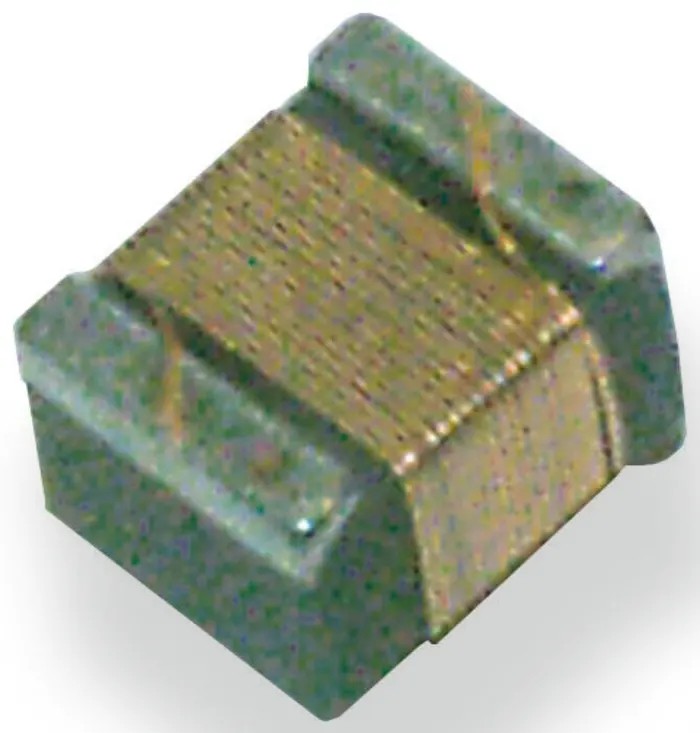

TE Connectivity Wirewound Surface Mount Inductor 0805 Case 300 nH ±5% Inductance 330 mA Max DC Current Q 36502AR30JTDG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Height | 1.52mm |
| Length | 2.29mm |
| Model | 36502AR30JTDG |
| Depth | 1.73mm |
| Packaging | Tape & Reel |
| Series | 3650 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 300nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 330mA |
| Maximum DC Resistance | 1.2Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 620MHz |
| Minimum Quality Factor | 48 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with wirewound technology for stable inductance.
- Maximum DC current rating of 330 mA ensures reliable operation.
- High quality factor (Q) of 48 for efficient signal processing.
- Compact 0805 surface mount package with dimensions 2.29 mm length, 1.52 mm height, and 1.73 mm depth.
- Operating temperature range from -40°C to 125°C for diverse applications.
- Maximum DC resistance of 1.2 Ohms to minimize power loss.
- Maximum self-resonant frequency of 620 MHz suitable for high-frequency circuits.
- RoHS compliant and manufactured in Taiwan, Province Of China.
Product Description
TE Connectivity model 36502AR30JTDG is a wirewound surface mount inductor designed in an industry-standard 0805 package, providing precise inductance of 300 nH with a tolerance of ±5%. This high-performance inductor supports a maximum DC current of 330 mA, ideal for use in power conditioning, signal filtering, and impedance matching applications in electronic circuits.
Constructed using wirewound technology, it ensures excellent stability and a high quality factor (Q) of 48, making it suitable for RF and high-frequency applications up to a maximum self-resonant frequency of 620 MHz. The compact size features a length of 2.29 mm, height of 1.52 mm, and depth of 1.73 mm, fitting directly onto printed circuit boards using the surface mount termination style.
Operating reliably over a wide temperature range from -40°C to 125°C, this inductor is RoHS compliant and meets environmental standards for electronic manufacturing. Its maximum DC resistance of 1.2 Ohms aids in reducing power losses, enhancing efficiency in sensitive electronic designs.
The product is supplied on tape and reel packaging, facilitating automated assembly and production efficiency in manufacturing environments.
Typical industrial uses include electronics manufacturing, telecommunications, computing systems, automotive electronics, and power management devices. TE Connectivity is a renowned brand in electronic components, ensuring high quality and reliability in demanding industrial settings.
Constructed with wirewound technology for stable inductance. Maximum DC current rating of 330 mA ensures reliable operation. High quality factor (Q) of 48 for efficient signal processing. Compact 0805 surface mount package with dimensions 2.29 mm length, 1.52 mm height, and 1.73 mm depth.
Operating temperature range from -40°C to 125°C for diverse applications. Maximum DC resistance of 1.2 Ohms to minimize power loss. Maximum self-resonant frequency of 620 MHz suitable for high-frequency circuits. RoHS compliant and manufactured in Taiwan, Province Of China.
Termination style is surface mount for PCB assembly. Packaging supplied on tape and reel format for automated placement. For additional components and detailed technical data, explore more TE Connectivity inductors and Passive Components in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 300 nH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 330 mA.
The dimensions of the 0805 case are 2.29 mm in length, 1.52 mm in height, and 1.73 mm in depth.
The maximum self-resonant frequency is 620 MHz, making it suitable for high-frequency circuits.
The operating temperature range for this inductor is from -40°C to 125°C.
The maximum DC resistance is 1.2 Ohms, which helps minimize power loss.
This inductor uses a surface mount termination style for PCB assembly.
The quality factor (Q) of this model is 48, indicating efficient signal processing capabilities.
It is supplied on tape and reel packaging, facilitating automated assembly.
Yes, this inductor is RoHS compliant, meeting environmental standards for electronic manufacturing.
Typical applications include power conditioning, signal filtering, and impedance matching in electronic circuits.
This inductor is manufactured in Taiwan, Province Of China.
