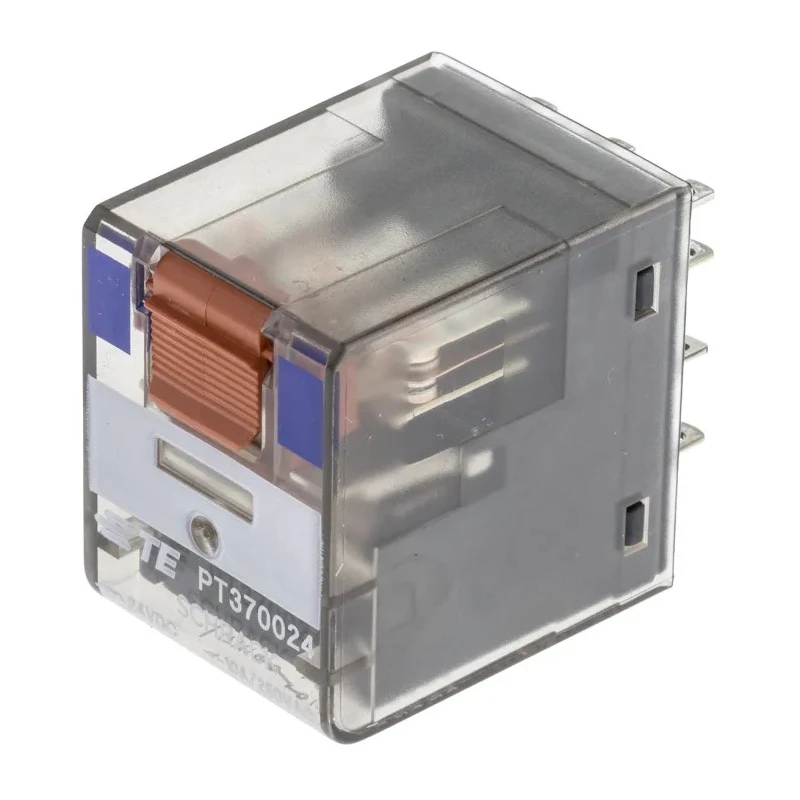

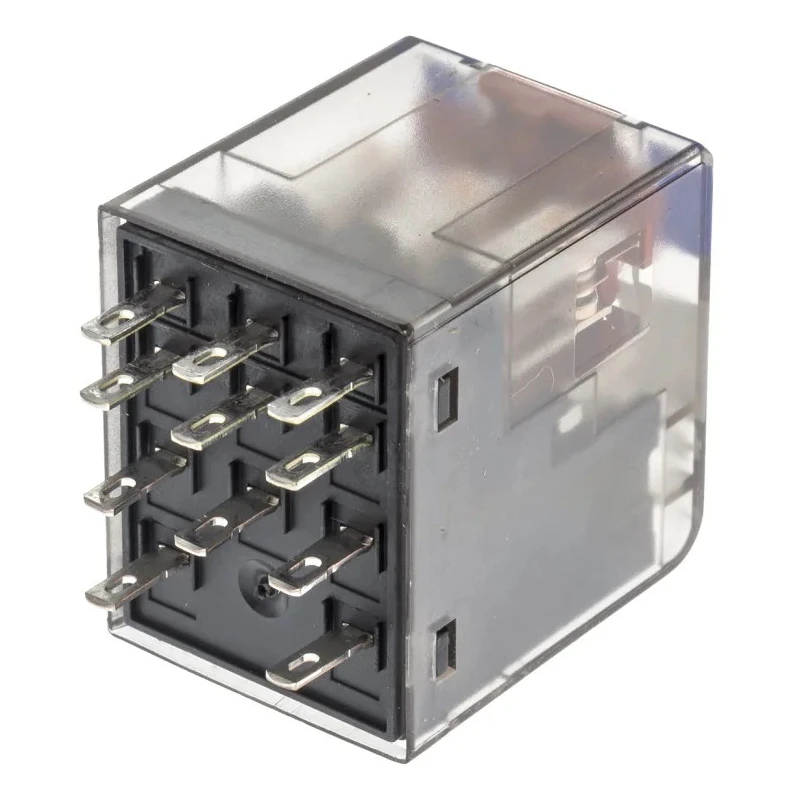

TE Connectivity PCB Power Relay, 24V dc Coil Voltage, 10A Switching Current, 3PDT Contact Configuration PT370024 6-1419111-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT370024 6-1419111-1 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | UL, RoHS, IEC, VDE |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Isolation Coil To Contact | 2.5kV(ac) |
| Finder Relay, 24V dc Coil, 10A Switching Current, 3PDTBrand | Finder |
Key Features
- The relay supports a 10A switching current suitable for various electronic control circuits.
- Compact dimensions with a width of 22.5mm, length of 28mm, and height of 35mm.
- Equipped with silver nickel alloy contacts ensuring durability and effective conductivity.
- Designed for PCB mounting with quick connect terminal type for easy integration.
- Operating temperature range from -40°C to 70°C ensures performance under diverse conditions.
- Isolation voltage between coil and contact up to 2.5kV (AC) enhances electrical safety.
- Compliance with UL, RoHS, IEC, and VDE standards guarantees quality and safety.
Product Description
TE Connectivity PT370024 6-1419111-1 is a high-quality PCB Power Relay engineered for industrial and automation control systems requiring robust switching capabilities. Its 24V dc coil voltage and 10A switching current enable reliable operation in sensitive electronic devices and power control applications.
This 3PDT contact configuration relay incorporates silver nickel alloy contacts that provide excellent conductivity and long service life. The relay is designed for easy PCB mounting and features quick connect terminals to facilitate swift installation and maintenance.
The relay operates efficiently within a temperature range of -40°C to 70°C, ensuring dependable performance in varied environments. Its coil resistance is 777 ohms and the device withstands switching AC voltages up to 400V AC, enabling it to manage significant electrical loads securely.
Electrical isolation between coil and contacts is rated up to 2.5kV (AC), ensuring superior protection against voltage surges and electrical noise. This product complies with international standards including UL, RoHS, IEC, and VDE, endorsing its suitability for rigorous industrial and electrical applications.
Typical industries employing this relay include industrial automation, HVAC systems, manufacturing controls, and electrical power distribution. The compact size with dimensions of 22.5mm (W) x 28mm (L) x 35mm (H) allows seamless integration into space-constrained assemblies.
The PT Series relay also features a mechanical indicator and manual test lock facility enhancing user feedback and maintenance safety. This relay is cadmium-free, supporting environmental sustainability efforts.
The relay supports a 10A switching current suitable for various electronic control circuits. Compact dimensions with a width of 22.5mm, length of 28mm, and height of 35mm. Equipped with silver nickel alloy contacts ensuring durability and effective conductivity.
Designed for PCB mounting with quick connect terminal type for easy integration. Operating temperature range from -40°C to 70°C ensures performance under diverse conditions. Isolation voltage between coil and contact up to 2.5kV (AC) enhances electrical safety.
Compliance with UL, RoHS, IEC, and VDE standards guarantees quality and safety.
Explore the extensive range of industrial relays and power control devices available in the Electronics & Electricals category at EnvMart to find complementary solutions for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V dc.
This model can handle a maximum switching current of 10A.
The dimensions of the relay are 22.5mm in width, 28mm in length, and 35mm in height.
This relay features a 3PDT contact configuration.
The operating temperature range for this relay is from -40°C to 70°C.
The contacts of this relay are made from silver nickel alloy.
This relay is designed for PCB mounting and features quick connect terminals for easy integration.
The isolation voltage between the coil and contacts is rated up to 2.5kV (AC).
This relay complies with UL, RoHS, IEC, and VDE standards.
The coil resistance of this relay is 777 ohms.
This relay is suitable for industrial automation, HVAC systems, manufacturing controls, and electrical power distribution.
The relay can handle a maximum switching AC voltage of 400V AC.
