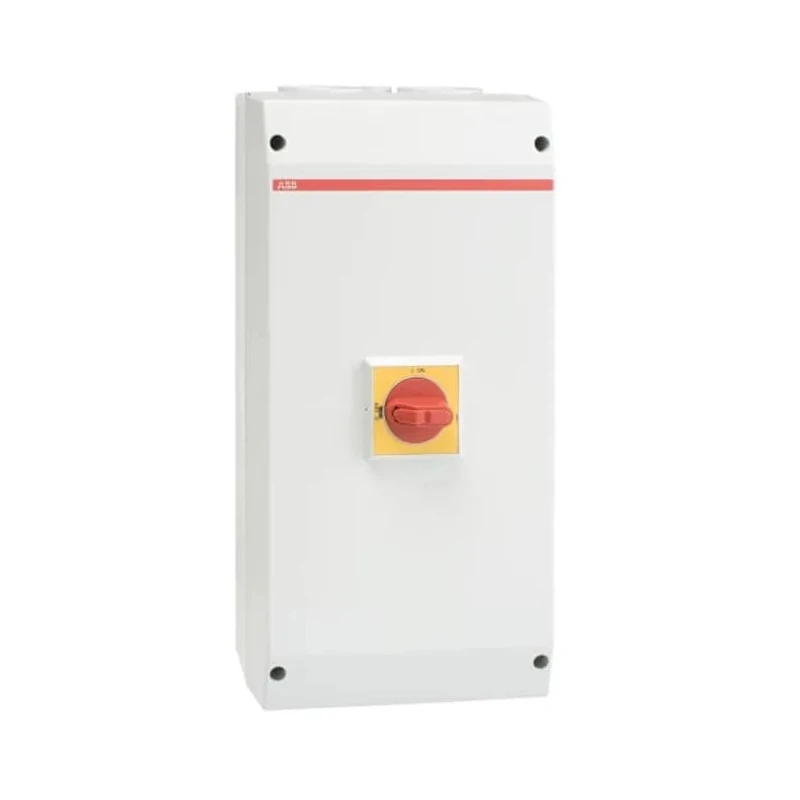

ABB 4-Pole Switch Disconnector, IP65 Rated, 125A, 45 kW, OTP Series, Screw Clamp Terminal, Padlock Compatible

ABB 1SCA022812R3860 4-Pole Switch Disconnector from the OTP series is a robust device engineered for industrial and commercial electrical isolation applications. It features a high-quality enclosure constructed from rigid glass reinforced polycarbonate, providing excellent UV resistance and mechanical strength.

The enclosure is rated IP65, offering protection against dust ingress and low-pressure water jets, making it suitable for harsh indoor and outdoor environments. Its design includes threaded cable entries with knock-out holes accommodating two parallel cables and a control cable from both top and bottom, providing versatile installation options.

This switch disconnector operates safely at a switching current of 125A and switching power of 45 kW with a maximum voltage of 750V AC. The handle is color-coded red and yellow for clear visibility, is padlock compatible with accommodation for up to three padlocks, enhancing safety during maintenance or isolation tasks. The cover is interlocked to prevent accidental access; however, this interlock can be bypassed for thermographic inspections.

The device supports a 5-wire system including separate fixed neutral and protective earth (PE) terminals. Up to two auxiliary contacts can be mounted to enhance the switching and control capabilities.

Compact in size with dimensions 400mm length x 200mm width x 140mm depth, this model complies with IEC 60947-1 standards, guaranteeing adherence to international electrical safety and performance requirements. The screw clamp terminal type ensures reliable and secure conductor connections.

Ideal for industrial automation, electrical distribution, and commercial building applications requiring robust isolation switches with safety lockout features. The product is manufactured in Finland, reflecting stringent quality standards.

The enclosure is made from rigid glass reinforced polycarbonate with UV protection. Designed for both indoor and outdoor use with protection against low-pressure water jets. Features a red and yellow padlockable handle allowing up to three padlocks.

Includes threaded cable entries with knock-out holes for multiple cables. The cover is interlocked with bypass functionality for thermographing. Suitable for 5-wire systems with fixed neutral and PE terminals. Operating voltage rated for up to 750V AC with auxiliary contacts available.

Terminal type is screw clamp ensuring secure wiring connections. Compact size with dimensions 400mm length, 200mm width, and 140mm depth. Complies with IEC 60947-1 standards, ensuring safety and reliability. Explore more high-quality switch disconnectors and electrical isolation solutions from ABB in the Electronics & Electricals category on EnvMart.
