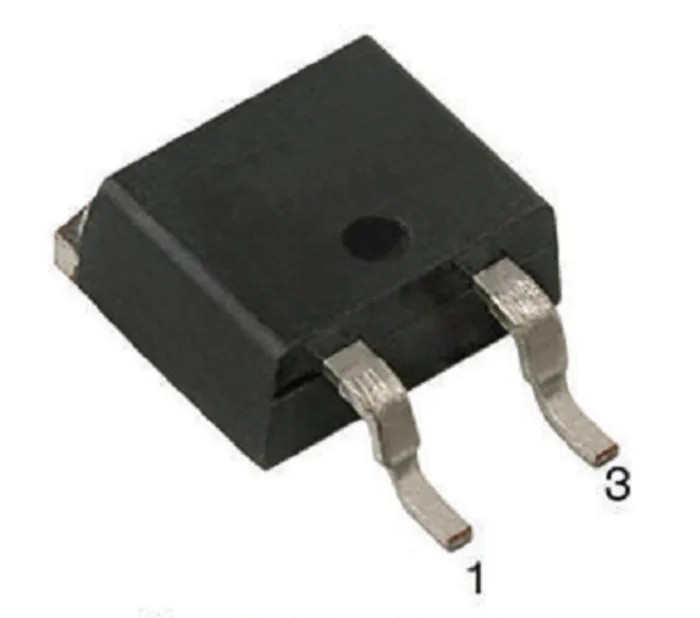

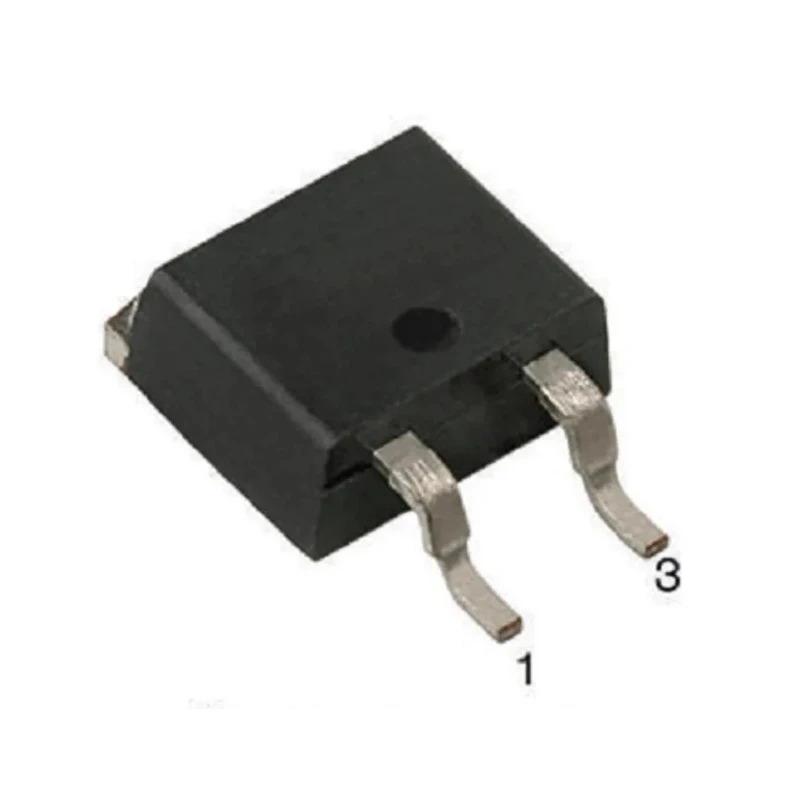

Vishay 1200 V 30 A General Purpose Rectifier & Schottky Diode Surface Mount TO-263 Package VS-E5TX3012S2LHM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5TX3012S2LHM3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 2.1V |
Key Features
- Designed for high frequency converters with soft switched and resonant operation.
- Features low conduction and switching losses ensuring efficient performance.
- Optimized for power factor correction and output rectification in EV and HEV battery chargers.
- Constructed with a TO-263 surface mount package for easy PCB integration.
- Operates reliably at junction temperatures up to 175°C.
- Complies with RoHS standards and is AEC-Q101 qualified for automotive applications.
- Polyimide passivation enhances device durability and resistance.
- Meets MSL level 1 according to J-STD-020 with a maximum peak of 245 °C.
Product Description
Vishay VS-E5TX3012S2LHM3 is a general purpose rectifier and Schottky diode designed to deliver high performance in power electronics applications. With a maximum continuous forward current of 30 A and peak reverse repetitive voltage of 1200 V, this device supports demanding operational environments including automotive and industrial sectors.
This diode's hyperfast switching and low forward voltage drop reduce power losses, making it ideal for high frequency power converters such as power factor correction circuits and output stages in electric vehicle battery chargers, hybrid electric vehicles, and solar inverters. The robust TO-263 surface mount package supports reliable thermal and electrical performance.
Engineered for operating temperatures ranging from -55 °C to 175 °C junction temperature, the device offers excellent reliability under harsh thermal conditions. It features polyimide passivation for enhanced protection and achieves MSL level 1 compliance, ensuring ease of manufacturing and longevity.
Additionally, the diode is AEC-Q101 qualified, meeting automotive industry quality and reliability standards including JESD 201 class 2 whisker testing. This certification makes it well-suited for automotive electronic systems requiring stringent performance criteria.
Low conduction and switching losses for efficient power conversion. Optimized reverse recovery charge (Qrr) for high-speed switching systems. High surge current capacity (110 A peak non-repetitive forward surge). Certified RoHS compliant and built to withstand automotive-grade stress tests.
Ideal for integration in EV/HEV charging stations, solar inverter boosters, and uninterrupted power supplies (UPS).
This component supports industrial, automotive, renewable energy, and general power electronics applications requiring a reliable high-current rectifier diode with excellent efficiency and durability. Explore more Vishay products in Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 30 A.
This diode has a peak reverse repetitive voltage rating of 1200 V.
It operates reliably within a temperature range of -55 °C to 175 °C.
The diode is constructed in a TO-263 surface mount package.
Yes, it is AEC-Q101 qualified, meeting automotive industry quality and reliability standards.
The maximum forward voltage drop for this diode is 2.1 V.
It can handle a peak non-repetitive forward surge current of 110 A.
Yes, it features polyimide passivation for enhanced durability and resistance.
This model complies with RoHS standards and is MSL level 1 according to J-STD-020.
It is optimized for power factor correction and output rectification in EV and HEV battery chargers, as well as high frequency power converters.
This diode belongs to the FRED Pt series.
The country of origin for this model is India.
