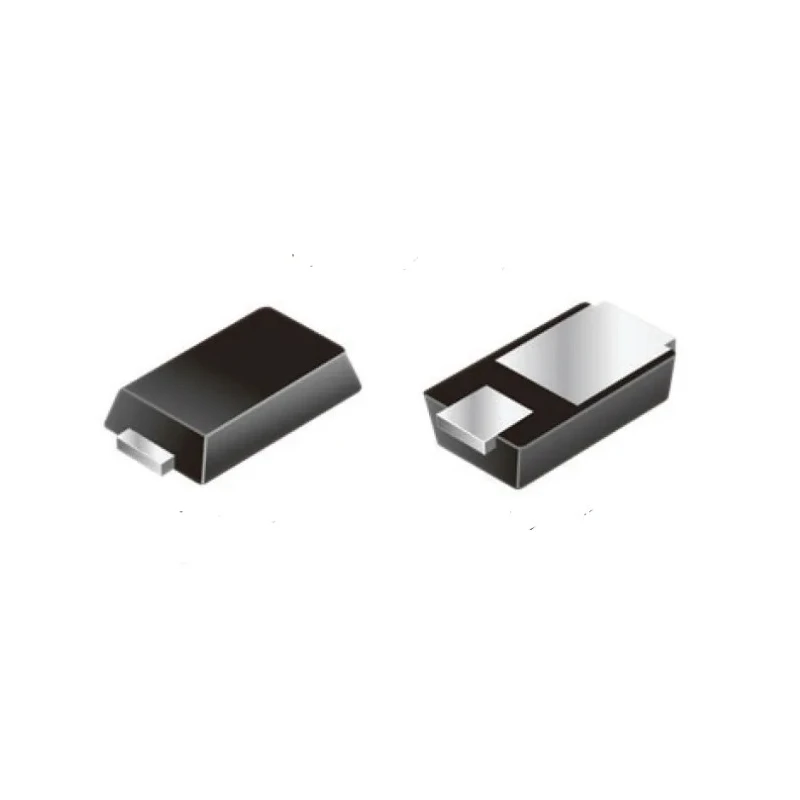

Vishay 200 V 2 A Surface Mount Rectifier & Schottky Diode MicroSMP VS-2EQH02HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-2EQH02HM3/H |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | MicroSMP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.82V |
Key Features
- Designed for high-frequency and freewheeling applications in industrial and automotive systems.
- Low forward voltage drop reducing power loss and heat generation.
- Very low profile with a typical height of 0.65 mm for compact PCB layouts.
- Qualified to automotive standard AEC-Q101 ensuring reliability under harsh conditions.
- Operates reliably between -55°C and 175°C temperature range.
- Supports peak non-repetitive forward surge current of 30 A.
- Compliant with RoHS directives for environmental safety.
- Meets MSL level 1 for moisture sensitivity and reflow soldering.
Product Description
The Vishay VS-2EQH02HM3/H is a surface-mount rectifier and Schottky diode designed for general-purpose applications including power factor correction, DC/DC converters, freewheeling diodes, and snubber circuits in industrial and automotive electronics.
This MicroSMP package diode supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 200 V. Its low forward voltage (0.82 V typical) ensures minimal power dissipation and enhanced efficiency.
The ultra-low profile of 0.65 mm is optimized for automated PCB assembly and high-density layouts. The device exhibits a wide operating temperature range from -55°C to 175°C and can handle peak surge currents up to 30 A, making it suitable for high transient performance demands.
It is qualified to the automotive industry standard AEC-Q101, indicating compliance with strict reliability and quality standards, and meets RoHS requirements ensuring it is environmentally safe.
Designed for high-frequency, freewheeling, and DC/DC converter applications. Very low forward voltage drop for reduced power losses. Low leakage current enhances efficiency. Ideal for automated placement in manufacturing.
Meets moisture sensitivity level 1, withstands peak solder temperatures of 260°C. Use this diode in industrial controls, automotive electronics, power supplies, and other systems requiring efficient rectification with a compact form factor.
Explore similar semiconductor components and Vishay products in the EnvMart catalog for comprehensive electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-2EQH02HM3/H is 2 A.
This model has a peak reverse repetitive voltage rating of 200 V.
It operates reliably between -55°C and 175°C.
The typical forward voltage drop is 0.82 V.
The package type is MicroSMP, which is designed for surface mounting.
It can handle a peak non-repetitive forward surge current of up to 30 A.
Yes, it is qualified to the automotive standard AEC-Q101.
It is designed for general-purpose applications including power factor correction, DC/DC converters, and freewheeling diodes in industrial and automotive electronics.
It meets RoHS directives for environmental safety.
It meets moisture sensitivity level 1, suitable for reflow soldering.
The typical height of this model is 0.65 mm, making it suitable for compact PCB layouts.
It is classified as a general-purpose rectifier.
