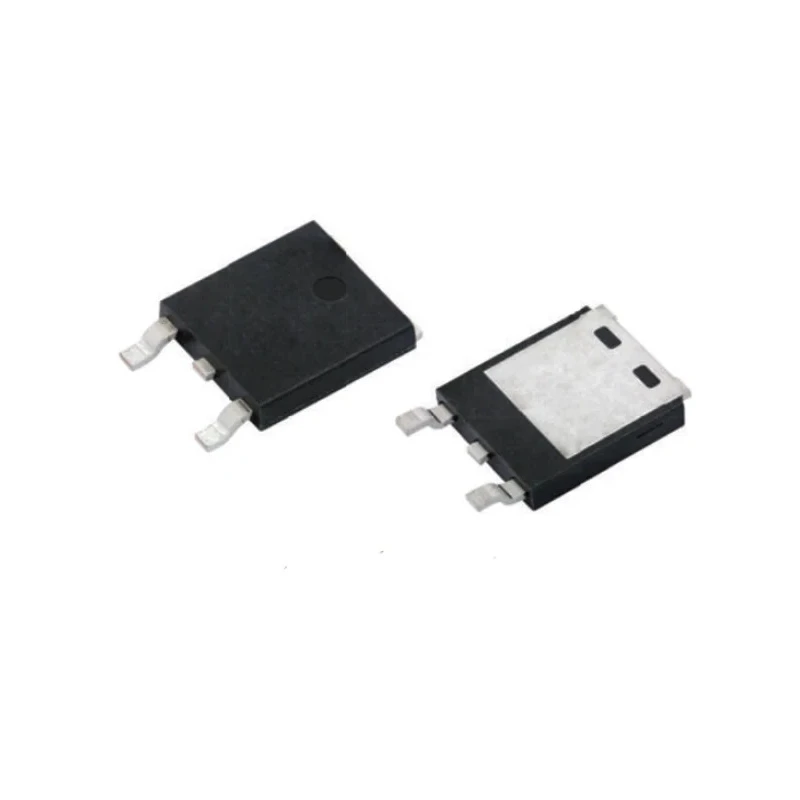

Vishay 150 V 35 A Schottky Barrier Schottky DPAK Surface Mount Rectifier V35PWM153HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V35PWM153HM3/I |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 0.71V |
Key Features
- Utilizes Trench MOS Barrier Schottky technology for low forward voltage and high efficiency.
- Compact design with a typical height of 1.3 mm allows space-saving PCB layouts.
- Ideal for low voltage high frequency DC/DC converter applications and polarity protection.
- High surge current capability with a peak non-repetitive forward surge current of 260 A.
- Wide operating temperature range from -40°C to 175°C for industrial and automotive use.
- Compliant with RoHS and meets automotive AEC-Q101 qualification.
- Designed for automated placement processes enhancing production efficiency.
- Single diode configuration supporting reliable rectification performance.
Product Description
Vishay V35PWM153HM3/I is a high current density Schottky Barrier Rectifier designed for surface mount applications in advanced power electronics. It features a maximum continuous forward current of 35 A and a peak reverse repetitive voltage of 150 V, packaged in a TO-252 DPAK suitable for automated assembly lines.
This rectifier utilizes Trench MOS Barrier Schottky (TMBS) technology, delivering very low forward voltage drop and reduced power losses, thus improving overall efficiency in DC/DC converters and freewheeling diode circuits. The device's typical profile height of 1.3 mm supports compact PCB designs, making it ideal for space-constrained applications.
The V35PWM153HM3/I supports harsh environmental conditions with an operating temperature range from -40°C to 175°C, making it suitable for automotive systems (AEC-Q101 qualified) and industrial environments requiring reliability under thermal stress. The diode withstands a peak non-repetitive forward surge current of 260 A, ensuring robust transient tolerance.
Compliance with RoHS and adherence to automotive standards provide assurance of quality and environmental responsibility. The single diode configuration provides straightforward use in polarity protection and high-frequency rectification tasks.
Trench MOS Schottky technology for low forward voltage drop and high efficiency. TO-252 DPAK surface mount package with a profile height of 1.3 mm. Maximum continuous forward current of 35 A and peak reverse voltage of 150 V.
Operating temperature range suitable for industrial and automotive applications. Peak forward surge current of 260 A for transient tolerance. RoHS compliant and AEC-Q101 automotive standard qualified. Optimized for automated placement in production.
Single diode configuration for rectification and polarity protection.
This rectifier is used widely in industrial, automotive, and electronics manufacturing environments, including DC/DC converters, freewheeling diodes, and polarity protection applications. It offers engineers a reliable and efficient component for high frequency and high current designs.
Explore our Electronics & Electricals sections for a wide range of Schottky diodes and other semiconductor components tailored to your design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay V35PWM153HM3/I Schottky rectifier is 35 A.
This model has a peak reverse repetitive voltage rating of 150 V.
The maximum forward voltage drop for the V35PWM153HM3/I is 0.71 V.
It can withstand a peak non-repetitive forward surge current of 260 A.
The operating temperature range for this rectifier is from -40°C to 175°C.
The V35PWM153HM3/I is packaged in a TO-252 DPAK format.
Yes, it is RoHS compliant and meets the AEC-Q101 automotive standard.
This rectifier is suitable for applications in DC/DC converters, freewheeling diodes, and polarity protection.
The diode configuration for this model is single, which supports reliable rectification performance.
It utilizes Trench MOS Barrier Schottky (TMBS) technology for low forward voltage and high efficiency.
The typical height of the V35PWM153HM3/I is 1.3 mm, allowing for space-saving PCB layouts.
The country of origin for the Vishay V35PWM153HM3/I is India.
