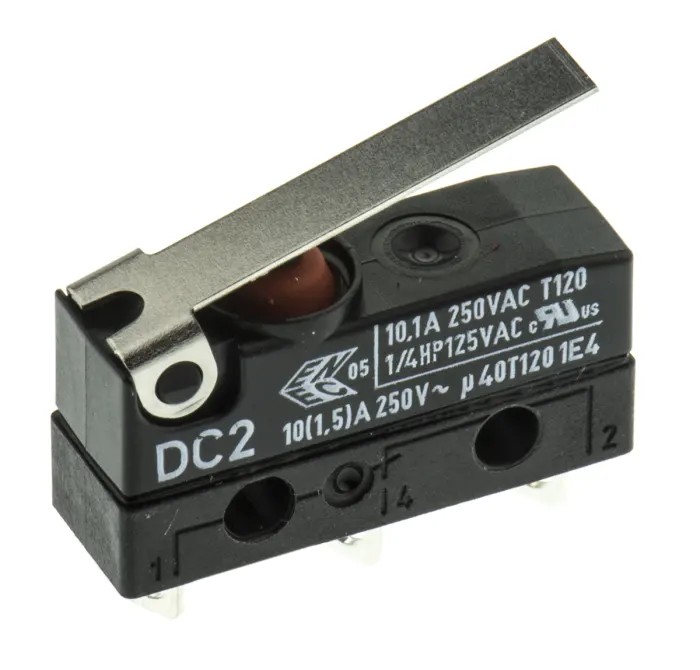

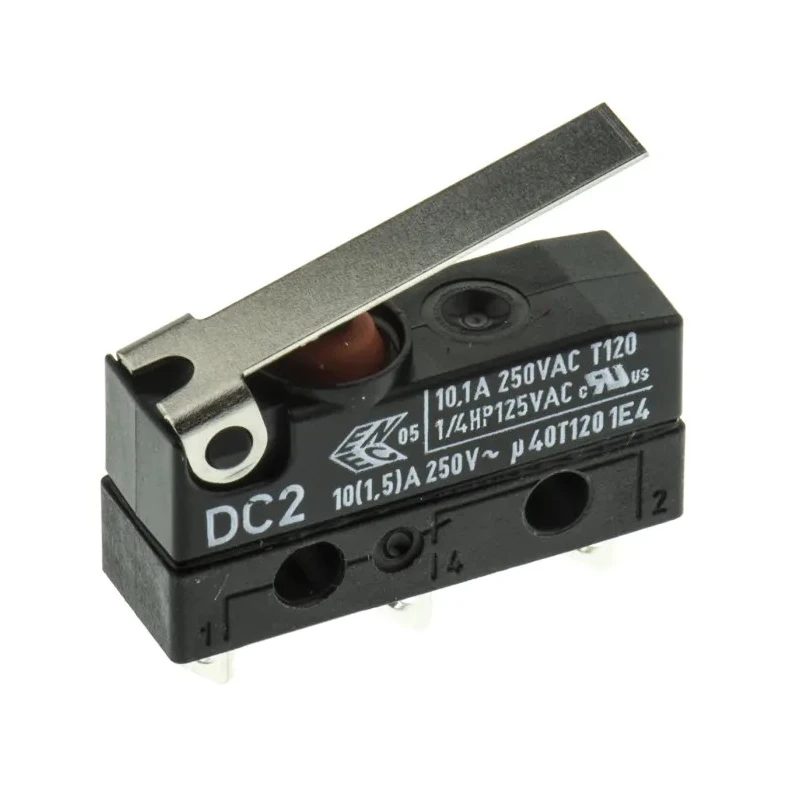

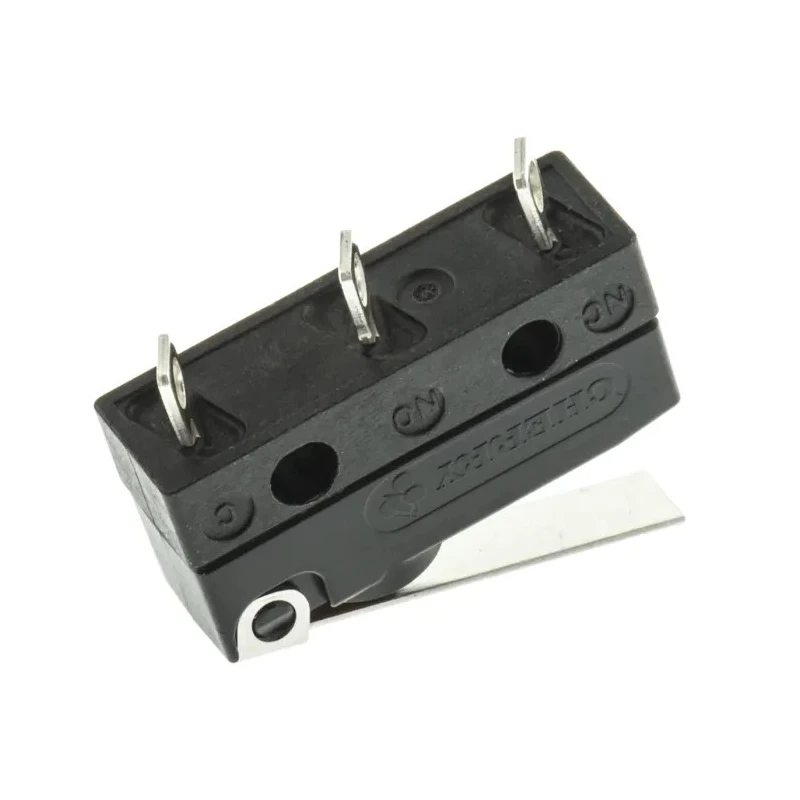

ZF Hinge Lever Micro Switch, Solder Terminal, 10.1A, 250 V AC, SPDT, IP6K7 DC2C-A1LB

ZF DC2C-A1LB Hinge Lever Micro Switch with solder terminal is engineered for demanding industrial and automation applications. This subminiature microswitch supports a contact current of 10.1A at 250 V AC and features a SPDT (Single Pole Double Throw) contact configuration, making it suitable for reliable switching in precise control systems.

The hinge lever actuator provides mechanical ease and consistency during operation, requiring only 1.47 Newtons of force. The housing is constructed from high-quality polyethylene terephthalate and polybutylene terephthalate materials, ensuring durability and resistance to harsh industrial environments. Rated with an IP6K7 ingress protection, the switch is highly resistant to dust and water immersion, enhancing its reliability in critical applications.

Operating temperature ranges allow the switch to function reliably from -40°C to 120°C, suitable for a wide range of industrial, laboratory, HVAC, and manufacturing settings. The mechanical life expectancy reaches 1,000,000 operations, affirming its longevity where frequent switching is required.

This product adheres to RoHS standards, ensuring compliance with environmental and safety regulations. It is ideal for applications requiring precise and rugged switching such as industrial automation, control panels, and electrical machinery.

The actuator type is a durable hinge lever suitable for precise mechanical control. Switch terminal type is solder for secure and reliable connections. Contact rating is 10.1A at 250 V AC for high current applications. Housing material: Polyethylene terephthalate and polybutylene terephthalate provide thermal and mechanical strength.

IP rating IP6K7 offers robust protection against dust and water immersion. Mechanical life of 1,000,000 operations ensures long service life. Operating force 1.47N enables smooth switch activation. Wide operating temperature range from -40°C to 120°C suits diverse environments.

SPDT contact configuration for versatile electrical switching. RoHS compliance guarantees environmental safety standards.

This microswitch is essential for engineers and technicians looking for durable, precise control components. It is widely used across electrical, automation, HVAC, water treatment, and manufacturing industries. Browse EnvMart’s extensive catalog for related switches and components to complement your control systems.
