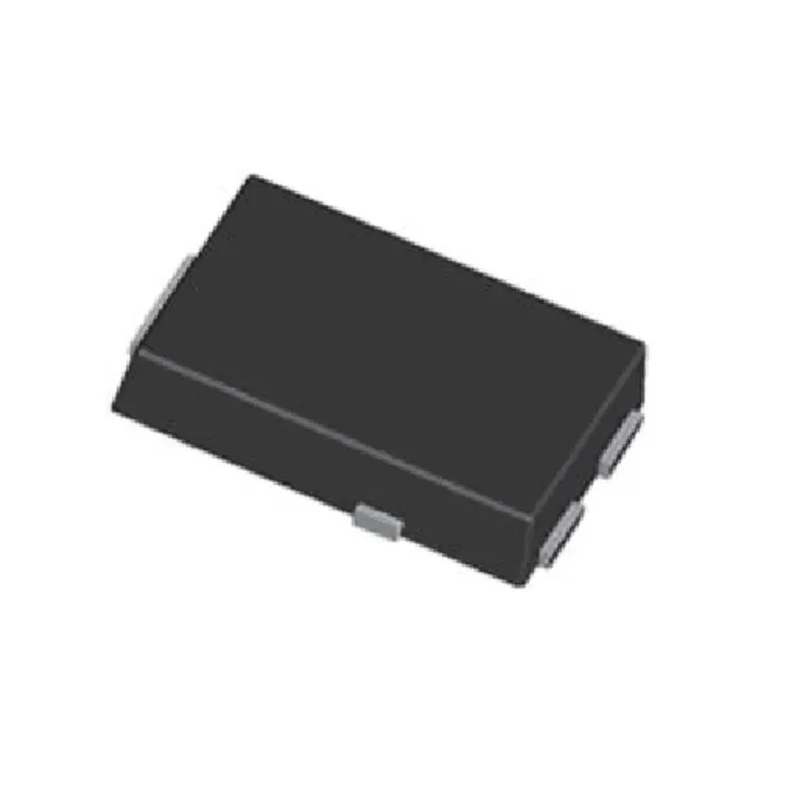

Vishay 150 V 12 A Schottky Barrier Schottky Diode Surface Mount TO-252 Package V12PM153HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V12PM153HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- Employs trench MOS barrier Schottky technology for low forward voltage drop.
- Provides high efficiency operation with low power losses.
- Surface mount device with a low profile typical height of 1.3 mm.
- Encapsulated in TO-252 package for compact automated placement.
- Capable of withstanding peak non-repetitive forward surge current of 200 A.
- Operating temperature range from -65°C to 150°C for versatile applications.
- Qualified to automotive standard AEC-Q101 ensuring reliability.
- RoHS compliant with environmentally friendly manufacturing processes.
Product Description
Vishay V12PM153HM3/H is a high current density Schottky Barrier diode designed for surface mount applications, featuring a TO-252 package type. With a maximum continuous forward current of 12 A and a peak reverse voltage of 150 V, this diode is ideally suited for low voltage, high frequency DC/DC converters, freewheeling diodes, and polarity protection roles.
The device utilizes advanced trench MOS barrier Schottky technology, providing low forward voltage drop of 0.62 V which enhances overall power efficiency and reduces losses during operation. Its very low profile with a typical height of 1.3 mm supports automated placement on printed circuit boards, optimizing manufacturing productivity.
Capable of handling severe transient conditions, it can sustain peak non-repetitive forward surge currents up to 200 A without degradation. The diode is qualified to automotive standard AEC-Q101 and meets RoHS compliance, making it suitable for automotive and environmentally conscious industrial use.
The operating temperature range from -65°C to 150°C enables reliable performance across demanding thermal environments. Its single diode configuration provides straightforward integration into power management circuits.
Applications include switching power supplies, DC/DC converters, polarity protection circuits, and as freewheeling diodes in inductive load driving systems in industrial, automotive, and electronics manufacturing fields.
Employs trench MOS barrier Schottky technology for low forward voltage drop. Provides high efficiency operation with low power losses. Surface mount device with a low profile typical height of 1.3 mm. Encapsulated in TO-252 package for compact automated placement.
Capable of withstanding peak non-repetitive forward surge current of 200 A. Operating temperature range from -65°C to 150°C for versatile applications. Qualified to automotive standard AEC-Q101 ensuring reliability. RoHS compliant with environmentally friendly manufacturing processes.
Ideal for DC/DC converters, freewheeling diodes, and polarity protection circuits. Explore related Schottky Diodes & Rectifiers in EnvMart for broader component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 12 A.
The peak reverse repetitive voltage rating is 150 V.
The maximum forward voltage drop is 0.62 V.
The operating temperature range is from -65°C to 150°C.
This diode is encapsulated in a TO-252 package.
It can withstand a peak non-repetitive forward surge current of 200 A.
Yes, this diode is RoHS compliant, ensuring environmentally friendly manufacturing processes.
This diode is qualified to automotive standard AEC-Q101.
It has a single diode configuration.
This diode is suitable for applications such as DC/DC converters, freewheeling diodes, and polarity protection circuits.
It employs trench MOS barrier Schottky technology for low forward voltage drop.
The typical height of this surface mount device is 1.3 mm.
