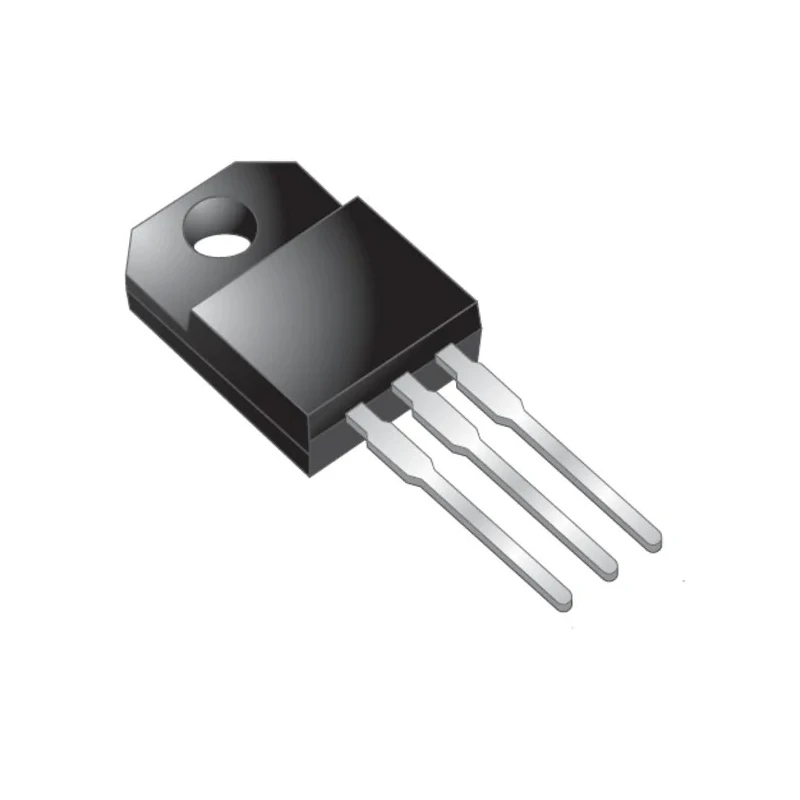

Vishay Schottky Barrier Diode 100 V 5 A Surface Mount ITO-220AB MBRF10100CT-M3/4W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | MBRF10100CT-M3/4W |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 150°C |
| Package Type | ITO-220AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.75V |
Key Features
- Utilizes Trench MOS Schottky technology for high efficiency.
- Exhibits low forward voltage drop to reduce power losses.
- Supports high forward surge current of up to 120 A.
- Operates reliably between -65°C to 150°C temperature range.
- Ideal for switching mode power supplies, DC/DC converters, and polarity protection.
- Features a 2x common cathode diode configuration.
- The package type is ITO-220AB, suitable for surface mounting.
- Complies with RoHS standards for environmental safety.
Product Description
Vishay MBRF10100CT-M3/4W is a high-performance Schottky Barrier Diode with a maximum continuous forward current of 5 A and peak reverse repetitive voltage of 100 V. It features advanced Trench MOS Schottky technology to lower power losses and provide high efficiency in electronic applications.
This diode uses a 2x common cathode pair configuration and is housed in an ITO-220AB surface mount package, optimized for compact PCB designs. Its maximum forward voltage drop of 0.75 V reduces heat generation, making it suitable for high frequency rectifier circuits and switching mode power supplies.
Operating within a temperature range of -65°C to 150°C, this diode endures demanding industrial conditions. With a peak non-repetitive forward surge current rating of 120 A, it is capable of handling transient current spikes without damage.
Typical applications encompass DC/DC converters, freewheeling diodes, and polarity protection in electronic circuits. The diode complies with RoHS environmental standards, ensuring safe use in various commercial and industrial electronic assemblies.
Utilizes Trench MOS Schottky technology for enhanced efficiency. Low forward voltage drop reduces power dissipation. High forward surge current supports robust transient handling. Wide operating temperature range suits industrial applications.
Surface mount ITO-220AB package facilitates automated assembly. 2x common cathode diode configuration provides versatile circuit integration. RoHS compliant ensuring environmental safety. Peak reverse voltage rating of 100 V for high durability.
Optimal for switching mode power supplies and DC/DC converters.
This Vishay Schottky Barrier Diode is an essential component in industrial, laboratory, manufacturing, and commercial electronic sectors. It provides reliable, efficient performance in demanding electronic rectification and protection applications. Browse Vishay components and other advanced semiconductor devices on EnvMart for your next project.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 5 A.
The peak reverse repetitive voltage rating is 100 V.
It operates reliably between -65°C and 150°C.
This diode is housed in an ITO-220AB surface mount package.
The maximum forward voltage drop is 0.75 V.
It can handle a peak non-repetitive forward surge current of up to 120 A.
It features a 2x common cathode diode configuration.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for applications such as switching mode power supplies, DC/DC converters, and polarity protection.
It utilizes Trench MOS Schottky technology for high efficiency and low power losses.
The country of origin for this diode is India.
This diode belongs to the FRED Pt series.
