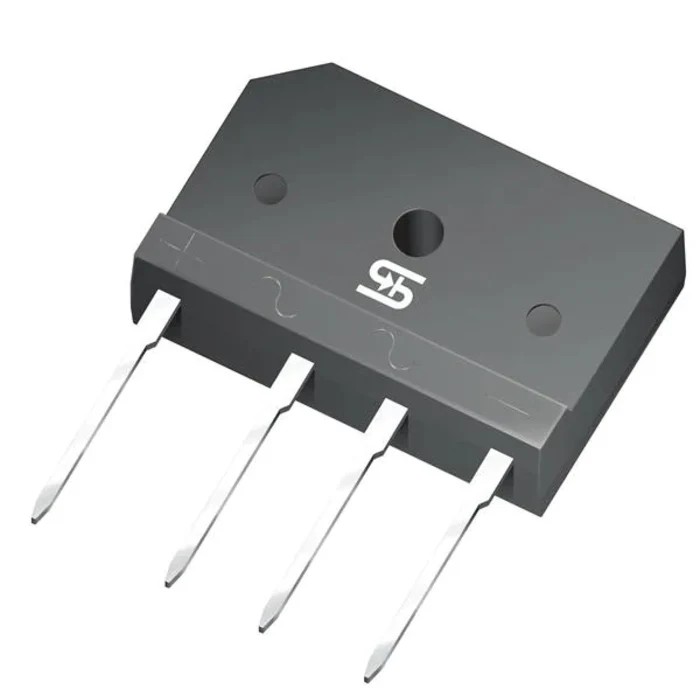

Taiwan Semiconductor Bridge Rectifier, Quad Configuration, 4-Pin TS-6PL Package, 800 V Peak Reverse Voltage, 208 T15JA06G-K

Taiwan Semiconductor T15JA06G-K Bridge Rectifier is a high-performance semiconductor device engineered for demanding electronic applications requiring robust surge current capacity and reliable operation.

This 4-pin bridge rectifier features a quad configuration within a TS-6PL through-hole mount package, facilitating ease of integration on printed circuit boards. It is designed to handle a peak reverse repetitive voltage (VRRM) of 800 volts and a peak non-repetitive forward surge current (IFSM) of 208 amperes, ensuring durability under transient conditions.

Operating from -55°C up to a maximum of 150°C, it withstands harsh thermal environments. The device exhibits a low peak forward voltage of 1.1 volts which minimizes conduction losses and improves efficiency. Its glass passivated chip junction enhances device stability and longevity, making it suitable for extensive industrial use.

This bridge rectifier is RoHS compliant, halogen-free in accordance with IEC 61249-2-21, and UL recognized (File # E-326243), complying with global standards for safety and environmental regulations.

Typical applications include switching mode power supplies (SMPS), electrical adapters, and lighting applications, where it provides reliable rectification with high surge current capacity. The component supports single-phase circuits with a 4-pin, quad diode assembly delivering compactness and efficiency in power electronics.

This bridge rectifier supports a peak reverse repetitive voltage of 800 volts. It features a maximum forward current of 15 amperes suitable for power electronics. The device can withstand peak non-repetitive forward surge current up to 208 amperes.

Perfect for printed circuit board mounting with through-hole TS-6PL package type. Operates within temperature range from -55°C to 150°C with a peak forward voltage of 1.1 volts. Glass passivated chip junction ensures device reliability and longevity.

Compliant with RoHS, IEC 61249-2-21, and UL standards. Ideal for applications in switching mode power supplies, adapters, and lighting systems. Halogen-free material construction enhances environmental safety. UL recognized with File number E-326243 ensuring certified quality.

This bridge rectifier is a trusted component for industrial, electronic manufacturing, power management, and HVAC equipment, providing consistent and reliable rectification under high electrical load conditions.
