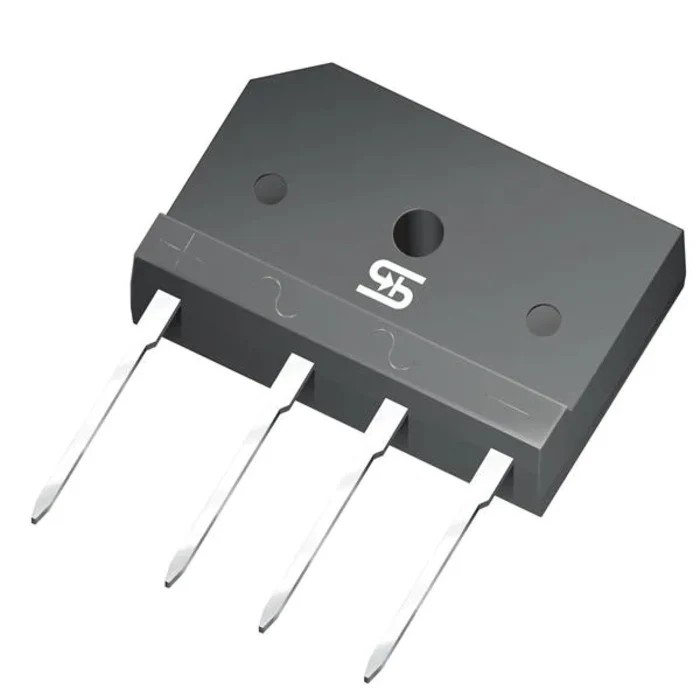

Taiwan Semiconductor Bridge Rectifier 800 V Peak Reverse Voltage, 208 A Peak Surge Current, 4-Pin Quad T15JA06G-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 30mm |
| Length | 29.3mm |
| Model | T15JA06G-K |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | TS-6PL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, IEC 61249-2-21, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 208A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Peak reverse repetitive voltage of 800 V ensures reliable voltage handling.
- Maximum peak non-repetitive forward surge current of 208 A supports high surge tolerance.
- Forward current rating of 15 A suitable for power switching applications.
- Through hole mount type provides easy PCB installation.
- Compact TS-6PL package with 29.3mm length and 30mm height.
- Operating temperature range from -55°C to 150°C for industrial use.
- Glass passivated chip junction ensures durability and performance stability.
- Ideal for SMPS, adapters, and lighting applications.
Product Description
Taiwan Semiconductor T15JA06G-K Bridge Rectifier offers a robust solution for high voltage and current industrial and electronic applications. This 4-pin quad device is housed in a compact TS-6PL package suitable for through-hole mounting on PCBs. It delivers a peak reverse repetitive voltage of 800 V and a peak non-repetitive forward surge current of 208 A, ensuring reliable performance under surge conditions. The bridge rectifier has a forward current rating of 15 A and maintains efficiency with a peak forward voltage of 1.1 V.
It operates over a wide temperature range from -55°C to 150°C, supporting demanding environments such as industrial power supply circuits and lighting control systems. The glass passivated chip junction enhances durability and moisture resistance. This product is RoHS compliant and halogen-free, conforming to IEC 61249-2-21 for environmental safety. It is also UL recognized, providing quality assurance for use in professional applications.
Commonly used in switching mode power supplies (SMPS), adapters, and lighting applications, this bridge rectifier ensures smooth conversion from AC to DC power with minimal loss. Its reliable design helps maintain electrical performance and prolong the lifespan of the hosted equipment.
Peak reverse voltage of 800 V for high voltage applications. High surge current capability of 208 A for transient conditions. Forward current rating of 15 A supports various power supplies. Through-hole mounting aids straightforward PCB assembly.
Compact dimensions optimize space-constrained designs. Wide operational temperature range for industrial environments. Glass passivated junction provides enhanced protection. Compliant with RoHS and IEC halogen-free standards.
UL recognized for quality and safety compliance. Ideal for SMPS, lighting, and adapter power supplies.
This bridge rectifier is categorized under Electronics & Electricals, Semiconductors, specifically in the Bridge Rectifier segment. For more semiconductor components and electronic parts, continue exploring EnvMart’s comprehensive industrial-grade portfolio.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 800 V, ensuring reliable voltage handling for high voltage applications.
This bridge rectifier can handle a maximum peak non-repetitive forward surge current of 208 A, supporting high surge tolerance.
The forward current rating of this model is 15 A, making it suitable for various power switching applications.
It features a through-hole mount type, which facilitates easy installation on PCBs.
The dimensions of this model are 29.3 mm in length and 30 mm in height, housed in a compact TS-6PL package.
It operates over a wide temperature range from -55°C to 150°C, making it suitable for industrial environments.
The peak forward voltage of this model is 1.1 V, which helps maintain efficiency during operation.
This unit is RoHS compliant and conforms to IEC 61249-2-21, as well as being UL recognized for quality assurance.
It is commonly used in switching mode power supplies (SMPS), adapters, and lighting applications, ensuring smooth AC to DC power conversion.
This model features a 4-pin configuration, which is typical for quad bridge rectifiers.
It utilizes a glass passivated chip junction, which enhances durability and performance stability.
The country of origin for this bridge rectifier is India.
