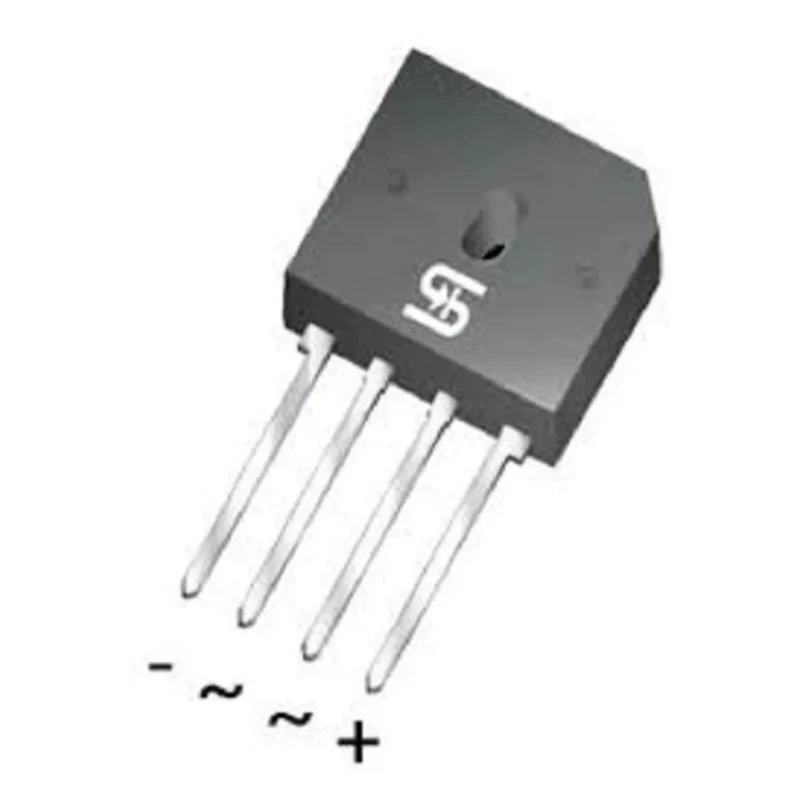

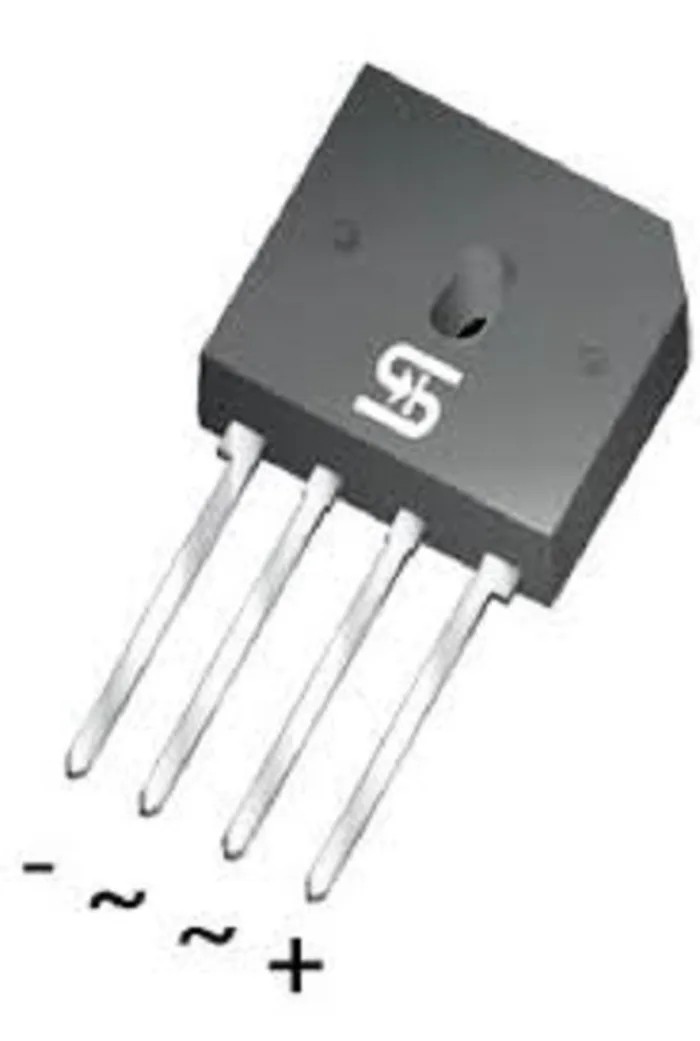

Taiwan Semiconductor Bridge Rectifier 800 V 220 A 4-Pin Quad GBU1506
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 22.3mm |
| Length | 36.8mm |
| Model | GBU1506 |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | IEC 61249-2-21, RoHS, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Constructed for through-hole mounting for robust PCB integration.
- High surge current capability of 220 A ensuring superb transient protection.
- Operating temperature range from -55°C to 150°C for reliable performance.
- Quad configuration with 4 pins suitable for varied circuit designs.
- Low forward voltage drop of 1.1 V optimizes efficiency in power applications.
- Maximum forward current rating at 15 A for sustained power delivery.
- Complies with IEC 61249-2-21 and RoHS standards ensuring environmental safety.
- UL recognized component providing industrial reliability and quality assurance.
Product Description
Taiwan Semiconductor GBU1506 Bridge Rectifier 4-Pin Quad model offers an 800 V peak reverse voltage and a peak surge current of 220 A, designed for efficient rectification in power and electronic applications.
This bridge rectifier utilizes a through-hole mount type with a GBU package, ensuring sturdy and reliable installation on printed circuit boards (PCBs). The device supports a forward current of 15 A and operates effectively within a temperature range from -55°C up to 150°C, making it suitable for demanding environments.
The quad pin configuration allows for effective current flow conversion, ideal for applications such as switching mode power supplies (SMPS), adapters, and display systems including TVs and monitors.
Featuring a low forward voltage drop of 1.1 V, it enhances power efficiency and reduces energy losses. The device is compliant with IEC 61249-2-21 standards and RoHS directives, confirming its eco-friendly manufacturing process.
UL recognition (File # E-326243) further endorses this component's quality and safety for industrial use.
This Bridge Rectifier is optimally designed for industrial electronics, laboratory equipment, HVAC controls, manufacturing machinery, and water treatment systems requiring stable and high-efficiency diode bridge solutions.
Constructed for through-hole mounting for robust PCB integration. High surge current capability of 220 A ensuring superb transient protection. Operating temperature range from -55°C to 150°C for reliable performance. Quad configuration with 4 pins suitable for varied circuit designs.
Low forward voltage drop of 1.1 V optimizes efficiency in power applications. Maximum forward current rating at 15 A for sustained power delivery. Complies with IEC 61249-2-21 and RoHS standards ensuring environmental safety.
UL recognized component providing industrial reliability and quality assurance. Explore the extensive range of semiconductor components on EnvMart for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GBU1506 has a peak reverse voltage rating of 800 V, making it suitable for various electronic applications requiring high voltage rectification.
This model has a maximum forward current rating of 15 A, allowing for sustained power delivery in its applications.
It can handle a peak non-repetitive forward surge current of 220 A, providing excellent transient protection.
The operating temperature range for the GBU1506 is from -55°C to 150°C, ensuring reliable performance in demanding environments.
The forward voltage drop for this model is 1.1 V, which helps optimize efficiency in power applications.
This bridge rectifier is designed for through-hole mounting, providing robust integration on printed circuit boards (PCBs).
The GBU1506 features a quad configuration with 4 pins, suitable for varied circuit designs.
It complies with IEC 61249-2-21 and RoHS standards, ensuring environmental safety and compliance.
The GBU1506 has a height of 22.3 mm and a length of 36.8 mm, making it compact for electronic applications.
This bridge rectifier is ideal for applications such as switching mode power supplies (SMPS), adapters, and display systems including TVs and monitors.
The GBU1506 is manufactured in India, ensuring compliance with various quality standards.
This model comes in a GBU package type, which is designed for effective thermal management and electrical performance.
