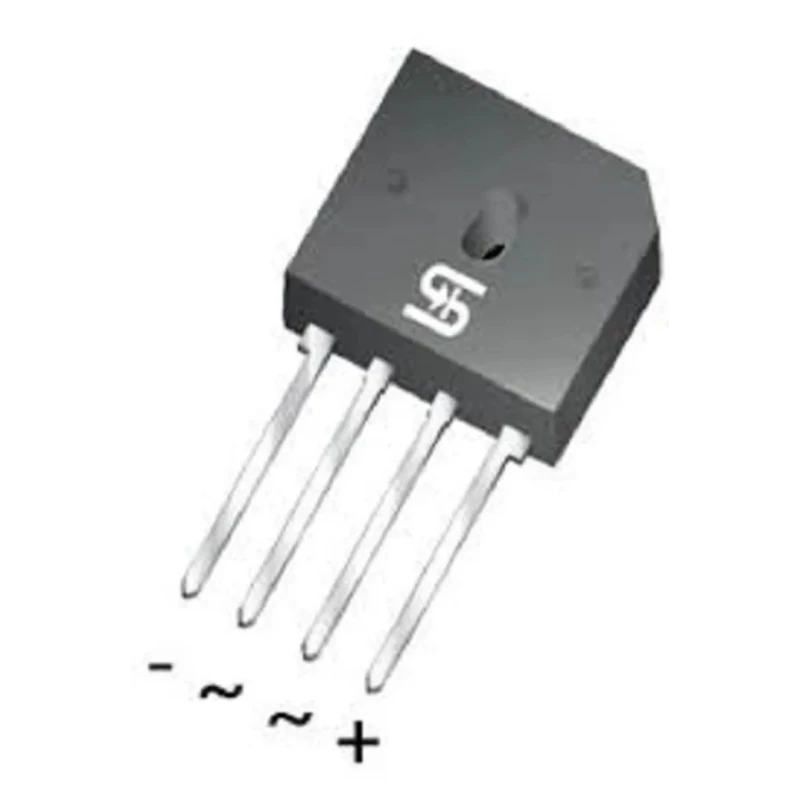

Taiwan Semiconductor Bridge Rectifier 800 V 220 A Quad 4-Pin Through Hole GBU Type GBU1506
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 22.3mm |
| Length | 36.8mm |
| Model | GBU1506 |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | IEC 61249-2-21, RoHS, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- This bridge rectifier offers a maximum operating temperature of 150°C.
- It supports a peak non-repetitive forward surge current of 220 A.
- Compliant with IEC 61249-2-21, RoHS, and UL standards.
- Features a peak forward voltage drop of 1.1 V and minimal peak reverse current of 5 μA.
- Ideal for switching mode power supplies, adapters, TVs, and monitors.
- The package length is 36.8 mm and height is 22.3 mm.
- Halogen-free and environmentally compliant per IEC standards.
Product Description
The Taiwan Semiconductor GBU1506 Bridge Rectifier is an industrial-grade component designed for high reliability in power electronics applications. Featuring a sturdy through-hole GBU package with a 4-pin quad configuration, it supports a peak reverse repetitive voltage (Vrrm) of 800 volts and handles a continuous forward current of 15 amperes, ensuring efficient rectification with minimal power loss.
The device operates reliably across a wide temperature range from -55°C to a maximum of 150°C, making it suitable for harsh industrial environments. It sustains peak non-repetitive forward surge currents (Ifsm) of up to 220 A, allowing for robust handling of transient electrical surges typical in power supply circuits. The forward voltage drop (Vf) is specified at a low 1.1 V, enhancing efficiency, while the peak reverse current leakage is minimal at 5 μA, reducing unwanted power dissipation.
Certified to meet IEC 61249-2-21, RoHS, and UL standards, this bridge rectifier is halogen-free, supporting eco-friendly manufacturing initiatives. Its proven reliability and performance are ideal for incorporation in switching mode power supplies (SMPS), adapter circuits, televisions, and monitor power management systems.
The physical dimensions of the component measure 36.8 mm in length and 22.3 mm in height, compatible with standard printed circuit boards (PCB) designed for through-hole mounting. This ensures ease of integration into existing designs and facilitates mechanical stability.
With its combination of durability, compliance, and technical specifications, the Taiwan Semiconductor GBU1506 bridge rectifier is well-suited for industrial, commercial, and consumer electronics applications requiring robust AC to DC conversion with high efficiency and reliable surge tolerance.
This Bridge Rectifier supports high surge current capabilities ensuring circuit protection. Its quad configuration enhances performance in multi-phase rectification applications. The device is UL recognized (File # E-326243), assuring quality and safety.
Ideal for a broad range of electrical and electronic manufacturing and repair jobs. Halogen-free construction supports regulatory compliance and sustainability.
Explore more semiconductor components and related electronic parts in our detailed EnvMart catalog to find suitable products for your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GBU1506 bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 800 volts.
This model can operate at a maximum temperature of 150°C.
It can handle a continuous forward current of 15 amperes.
The peak non-repetitive forward surge current for this bridge rectifier is 220 A.
The physical dimensions of the GBU1506 are 36.8 mm in length and 22.3 mm in height.
The peak forward voltage drop (Vf) is specified at 1.1 V.
The minimum operating temperature for the GBU1506 is -55°C.
This bridge rectifier is compliant with IEC 61249-2-21, RoHS, and UL standards.
It uses a through-hole mounting type.
The peak reverse current leakage (Ir) is minimal at 5 μA.
The GBU1506 features a quad configuration with 4 pins.
This model is ideal for switching mode power supplies, adapters, televisions, and monitor power management systems.
