| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54LS-QYL |
| Mount Type | Surface |
| Series | BAT54LS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

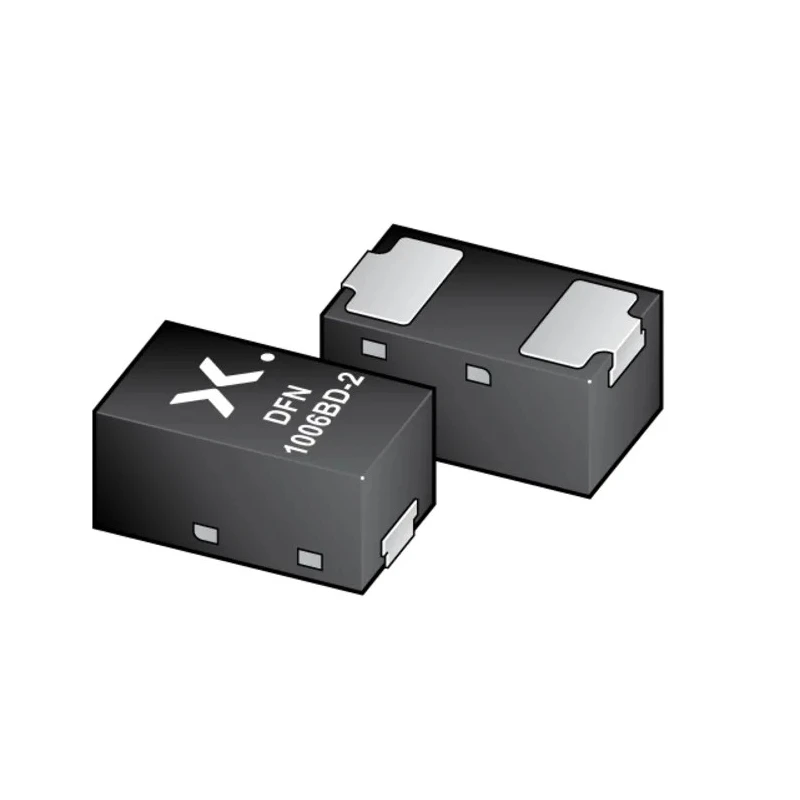

Nexperia BAT54LS-QYL is a high performance 30 V Schottky Barrier Diode designed for efficient low-voltage rectification and switching applications. Featuring a maximum continuous forward current of 200 mA and peak reverse voltage of 30 V, this diode is well suited for electronic circuits requiring fast response and low forward voltage drop.
Packaged in a surface mount DFN1006BD-2 plastic package with side-wettable flanks and a low height of 0.5 mm, it enables compact electronics design and automatic optical inspection during assembly. The device exhibits a maximum forward voltage of 380 mV, contributing to lower conduction loss, and operates reliably over a wide temperature range from -55°C to 150°C.
This diode is fully RoHS compliant and qualifies to the automotive AEC-Q101 standard, making it ideal for demanding automotive and industrial electronic environments. Its single diode configuration supports various low power rectifier and protection circuit applications in consumer electronics, power supplies, and telecommunications.
The diode comes in a leadless ultra small SMD package to facilitate efficient PCB layout. Low forward voltage ensures improved energy efficiency. Wide operating temperature range allows use under harsh conditions. Automotive qualification ensures high reliability.
Surface mount design suits automated manufacturing lines.
Intended for use in industrial, automotive, and electronic component manufacturing sectors, the BAT54LS-QYL provides an optimal balance of performance and form factor in Schottky diode technology.
