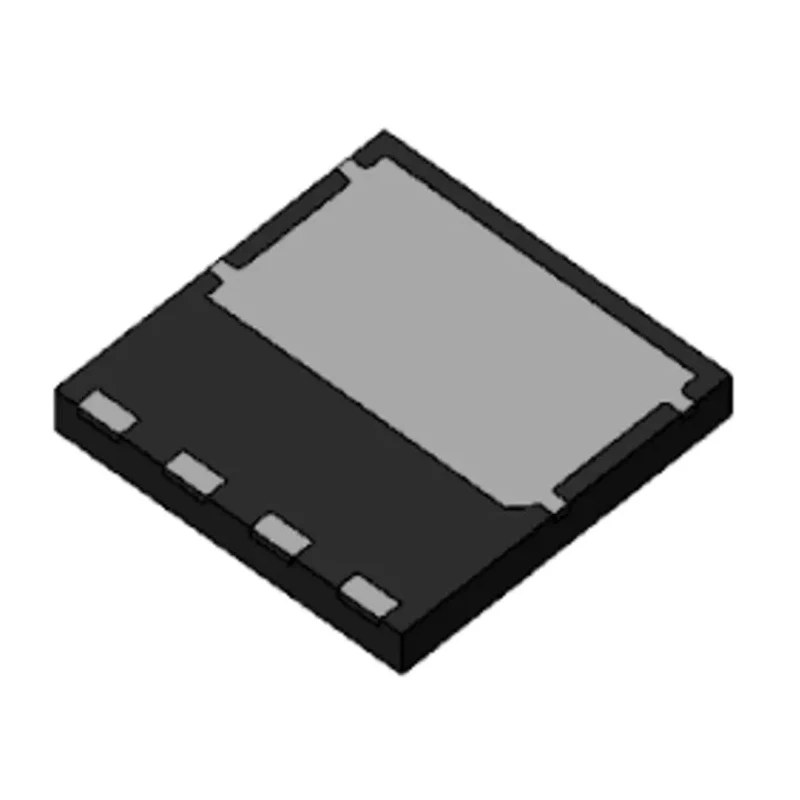

onsemi 650 V 10 A Surface Mount Schottky Diode PQFN Package FFSM1065B

Free Delivery in India | Lowest Global Shipping Charges

onsemi 650 V 10 A Surface Mount Schottky Diode PQFN Package FFSM1065B

Name: onsemi 650 V 10 A Surface Mount Schottky Diode PQFN Package FFSM1065B
Brand: onsemi
SKU: 287187
Price: 20.22 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.1mm
Length	8mm
Model	FFSM1065B
Width	8mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	PQFN
Minimum Operating Temperature	-55°C
Pin Count	5
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	650V
Rectifier Type	Schottky
Peak Reverse Current Ir	40μA
Peak Non-Repetitive Forward Surge Current Ifsm	42A
Maximum Forward Voltage Vf	1.7V

Key Features

Maximum continuous forward current of 10 A ensures robust load handling.
Peak reverse repetitive voltage rating of 650 V provides high voltage endurance.
Low maximum forward voltage of 1.7 V enhances energy efficiency.
Wide operating temperature range from -55°C to 175°C for demanding environments.
Compact 8 mm by 8 mm by 1.1 mm PQFN package optimizes board space.
Peak non-repetitive forward surge current of 42 A tolerates high transient currents.
Pin count of 5 enables efficient electrical connections.
Schottky rectifier type offers faster switching and reduced electromagnetic interference.

Product Description

onsemi FFSM1065B Schottky Diode is a silicon carbide (SiC) diode specifically designed for industrial and electronic applications requiring high efficiency and reliability. Featuring a 650 V peak reverse repetitive voltage and a maximum continuous forward current of 10 A, this diode is suitable for use in inverters, switched-mode power supplies (SMPS), uninterruptible power supplies (UPS), and other high-performance power conversion equipment.

This surface mount diode utilizes a 5-pin PQFN package with compact dimensions of 8 mm length, 8 mm width, and 1.1 mm height, allowing for optimized PCB layout and heat dissipation. The Schottky diode design ensures lower forward voltage drop (1.7 V max), resulting in improved power efficiency and reduced thermal losses.

Designed to operate reliably across a broad temperature range from -55°C to 175°C, the FFSM1065B can withstand harsh operating conditions frequently encountered in industrial and commercial electronic systems. Its peak non-repetitive forward surge current rating of 42 A enables handling of transient surges and pulses without damage, enhancing system robustness.

This diode does not carry automotive standards approval and has no specific certifications listed, emphasizing its general-purpose industrial usage.

Ideal for applications in electronics manufacturing, power supply design, and renewable energy conversion, this component offers a balance of performance, durability, and compact form factor essential for advanced electronic circuitry.

Maximum continuous forward current of 10 A for reliable performance under load. Peak reverse voltage rating of 650 V supports high voltage applications. Low forward voltage drop reduces power loss during conduction. Wide temperature tolerance ensures stable operation in varied environments.

Compact PQFN 5-pin package optimizes space and thermal management. Surge current capability protects against transient events. Schottky rectifier design minimizes switching losses and EMI. Surface mount configuration suited for automated PCB assembly.
