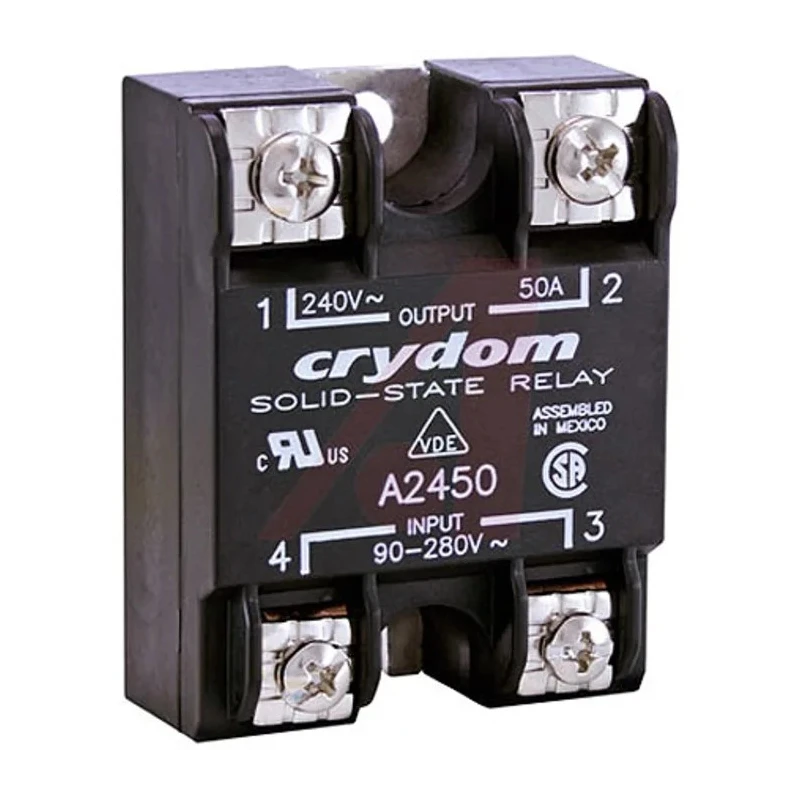

Crydom 1 Series Solid State Relay, 50 A Load Current, Panel Mount, 280 Vrms Load Voltage, 280Vrms Control A2450PG
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | A2450PG |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS |
| Minimum Load Voltage | 24V ac/dc |
| Minimum Control Voltage | 90V ac/dc |
| Off State Leakage Current | 10mArms |
Key Features
- Panel mount design provides easy and secure installation in control panels.
- Operates with a wide control voltage range up to 280 Vrms for versatile applications.
- Zero voltage switching minimizes electrical noise and extends component life.
- Equipped with screw terminal type for secure and stable wiring connections.
- Operates effectively within -40°C to 80°C for demanding industrial environments.
- Low off-state leakage current of 10 mArms ensures energy efficiency and safety.
- High dielectric strength of 4000 Vrms provides excellent voltage isolation.
- Low I/O capacitance of 8 pF supports high signal integrity.
Product Description
Crydom A2450PG is a 1 Series Solid State Relay designed for industrial-grade electrical and automation load control applications. It supports a maximum load current of 50 A and a load voltage of 280 Vrms, optimized for panel mounting configurations. This relay offers robust and reliable circuit control with no mechanical parts, ensuring long-term durability and resistance to wear.
This SSR provides high-performance switching with zero voltage switching functionality, which reduces electrical noise and wear on connected equipment. The device features an integrated input status LED for simplified monitoring and troubleshooting in complex control systems.
Operating within a wide temperature range from -40°C to 80°C, the Crydom A2450PG is suitable for harsh industrial environments such as manufacturing plants, automotive assembly lines, and HVAC control systems. It includes screw and saddle clamp terminals to facilitate easy and secure wiring.
With a high dielectric strength rating of 4000 Vrms and a very low off-state leakage current of 10 mArms, this relay ensures safe operation and signal integrity. The relay's low I/O capacitance of 8 pF further promotes high integrity of electrical signals, critical in sensitive electrical control circuits.
Panel mount design for space-efficient installation. 50 A maximum load current and 280 Vrms load voltage capability. Wide operating temperature range from -40°C to 80°C for extended reliability. Zero voltage switching for reduced electrical noise and improved durability.
High dielectric strength of 4000 Vrms for safe insulation. Low off-state leakage current of 10 mArms enhances energy efficiency. Low input-output capacitance of 8 pF supports signal integrity. Screw terminal type ensures secure and simple connections.
Lightweight design reduces mechanical stress on assemblies. RoHS compliant to meet environmental standards.
This Crydom solid state relay is ideal for use in industrial automation, electrical cabinets, process control systems, and manufacturing equipment where reliable solid-state switching is required.
Explore additional Crydom Solid State Relays and automation components on EnvMart for all your industrial electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 50 A.
It supports a load voltage of up to 280 Vrms.
This unit operates with a control voltage range starting from 90V up to 280V ac/dc.

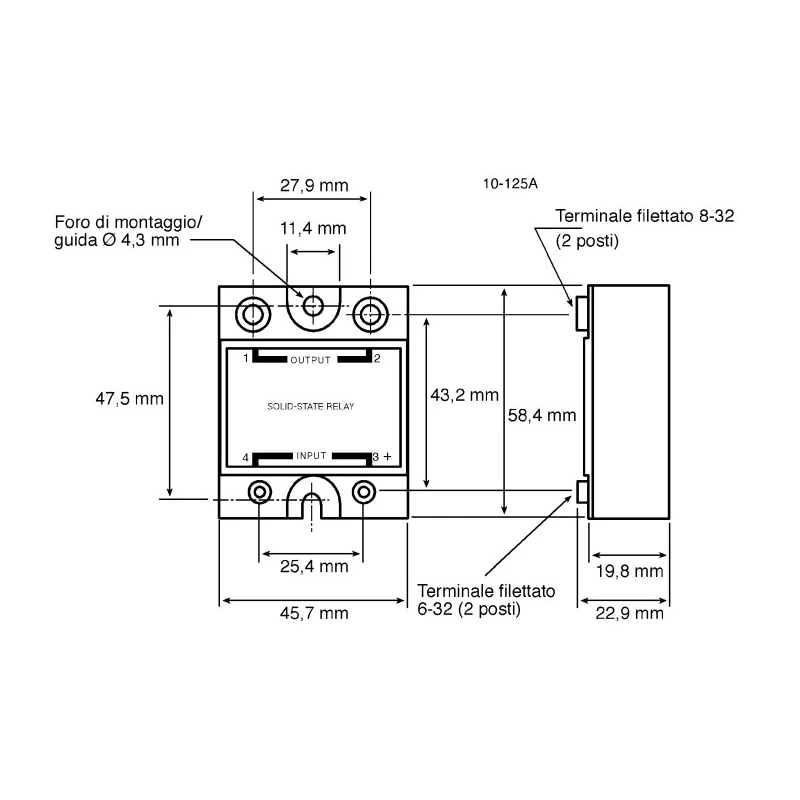

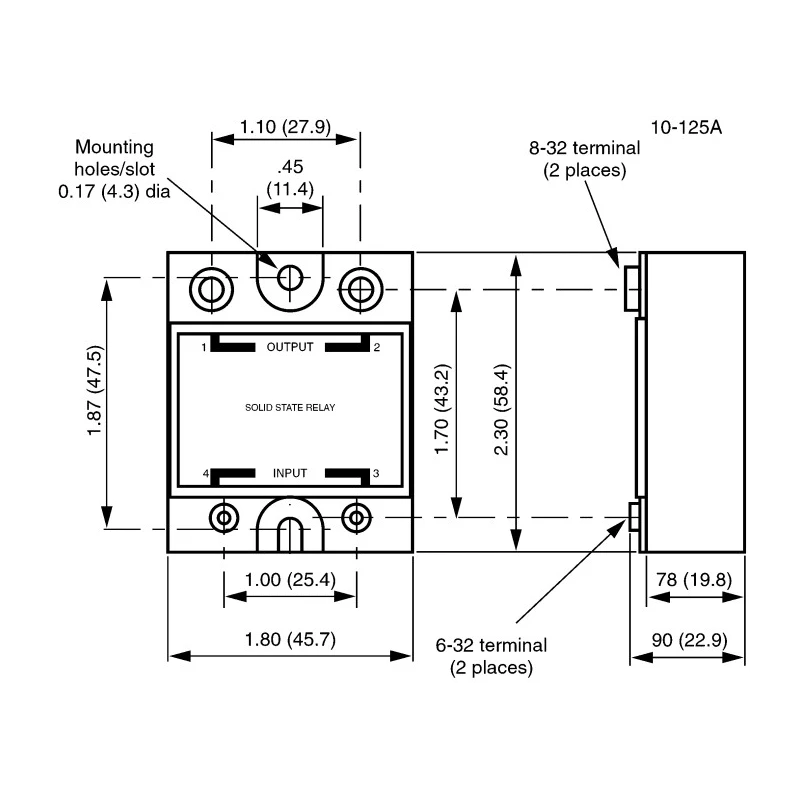

The dimensions are 58.4 mm in length, 22.6 mm in width, and 22.9 mm in height.
It features a panel mount design for easy and secure installation.
It operates effectively within a temperature range of -40°C to 80°C.
The off-state leakage current is 10 mArms, which enhances energy efficiency.
It is equipped with screw terminals for secure and stable wiring connections.
It features zero voltage switching, which minimizes electrical noise and extends component life.
The relay has a high dielectric strength of 4000 Vrms for excellent voltage isolation.
Yes, this model is RoHS compliant, meeting environmental standards.
This solid state relay is suitable for industrial automation, electrical cabinets, and process control systems.
