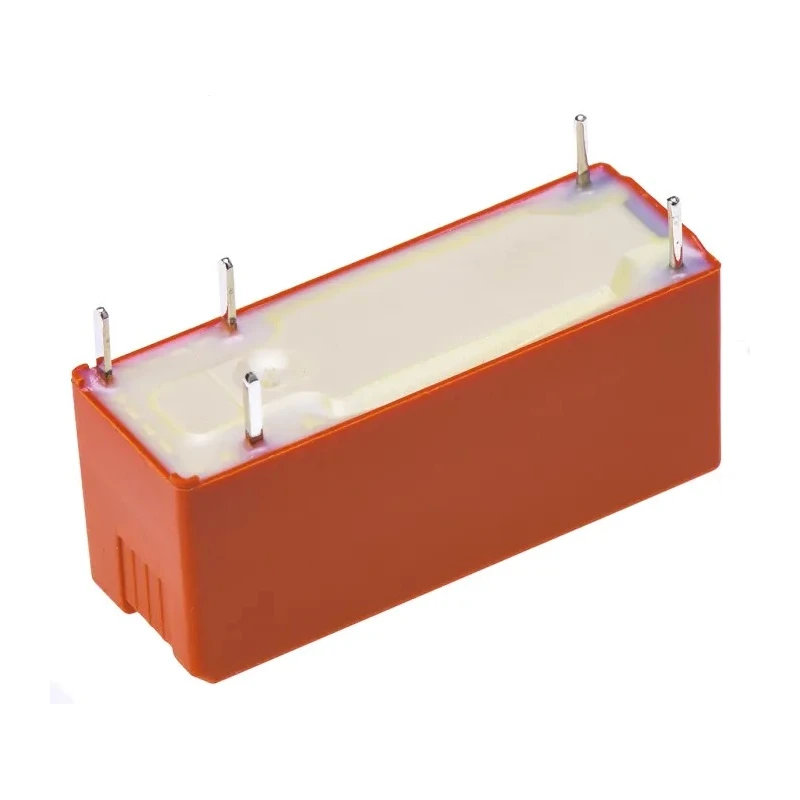

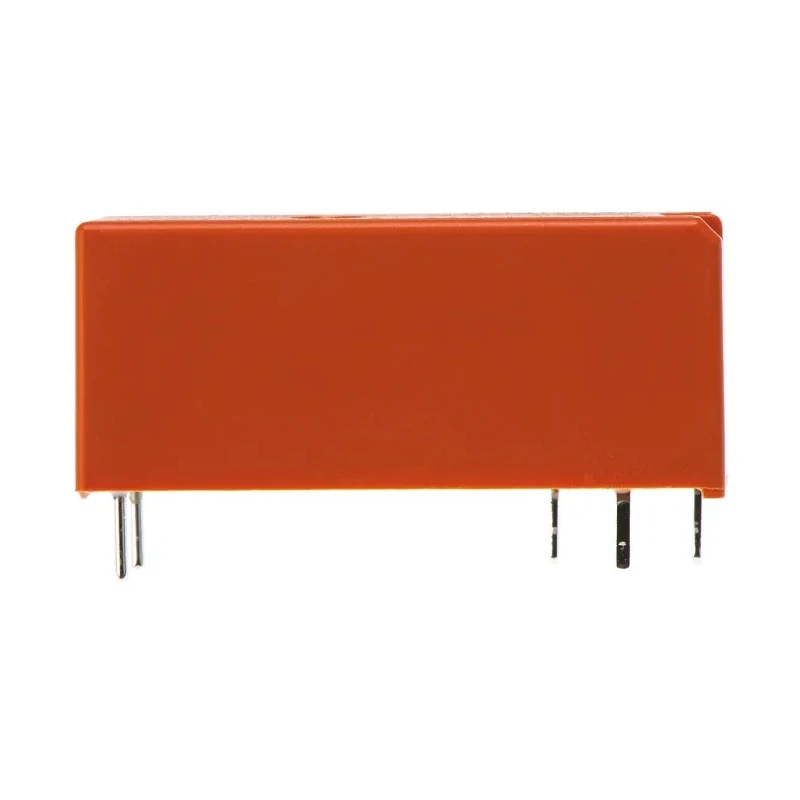

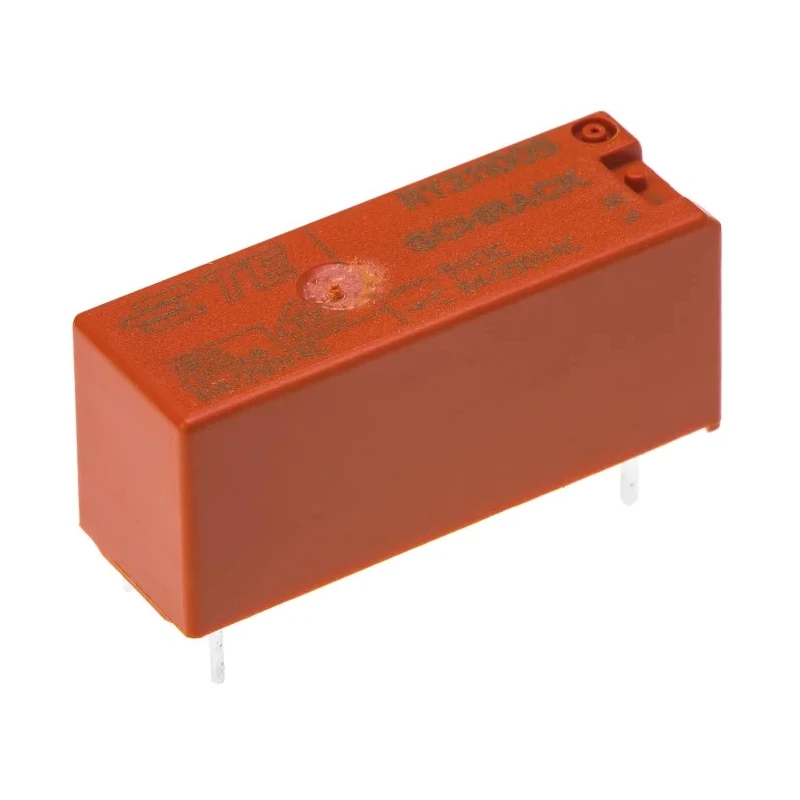

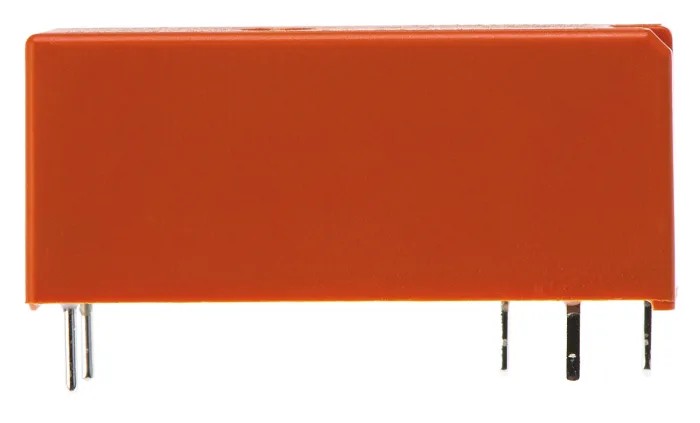

TE Connectivity PCB Power Relay 5V DC Coil 8A Switching Current SPDT RY211005

TE Connectivity RY211005 PCB Power Relay is a high-performance relay designed for industrial and electronic applications requiring dependable switching with a 5V DC coil and a switching current up to 8A in SPDT configuration.

Its compact dimensions of 12.3mm height, 28.5mm length, and 10.1mm width make it ideal for PCB mounting, with solder type terminals ensuring secure electrical connections. The device operates reliably over a wide temperature range from -40°C to 70°C, suitable for various industrial environments.

The relay employs silver alloy contacts that provide excellent conductivity and durability, supporting switching voltages up to 400V AC. With a low coil power consumption of 250mW and coil resistance of 112Ω, it is energy efficient for continuous operation.

Part of the RY II series, it features a 3.2mm pinning layout for compatibility with standard PCB designs. The relay meets multiple international standards including VDE, RoHS, IEC 60335-1, UL, and CSA, ensuring quality, safety, and environmental compliance.

This power relay is ideal for applications in industrial automation, electrical control systems, HVAC, manufacturing equipment, and other scenarios where precise and reliable single-pole double-throw switching is required.

Compact design with 28.5mm length and 12.3mm height. Suitable for PCB mounting with solder terminal type. Operates efficiently between -40°C and 70°C ambient temperatures. Silver alloy contact material ensures reliable conductivity.

Low coil power consumption of 250mW with 112Ω coil resistance. Rated for switching AC voltage up to 400V. RY II series relay with 3.2mm pinning for ease of installation. Conforms to VDE, RoHS, IEC 60335-1 standards and approvals including UL and CSA.
