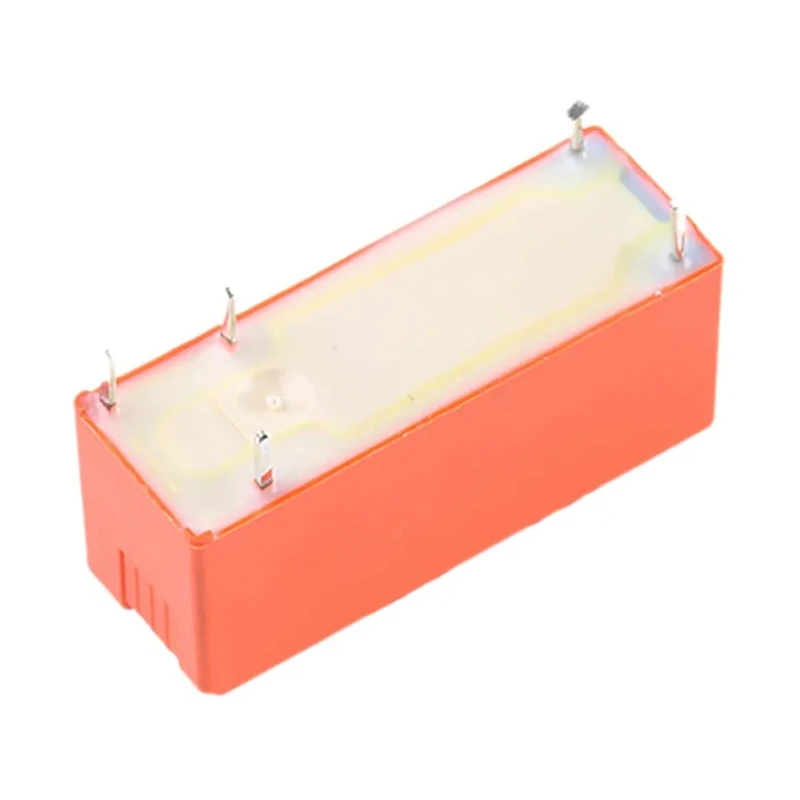

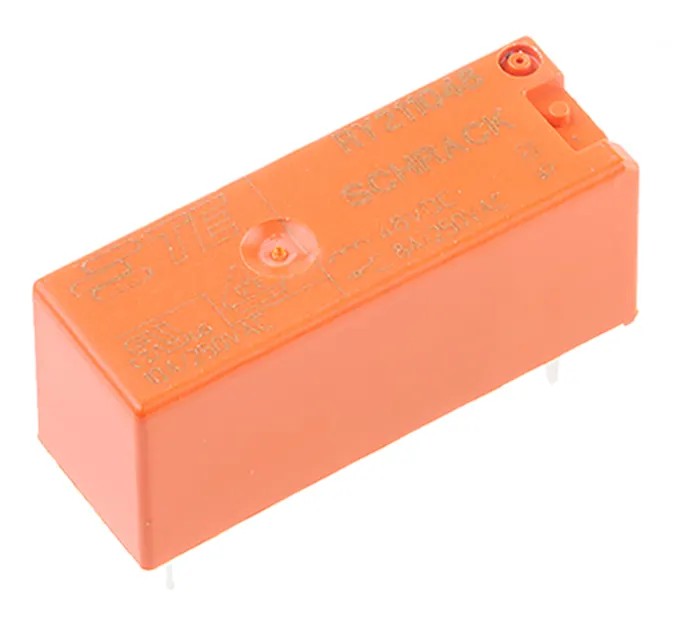

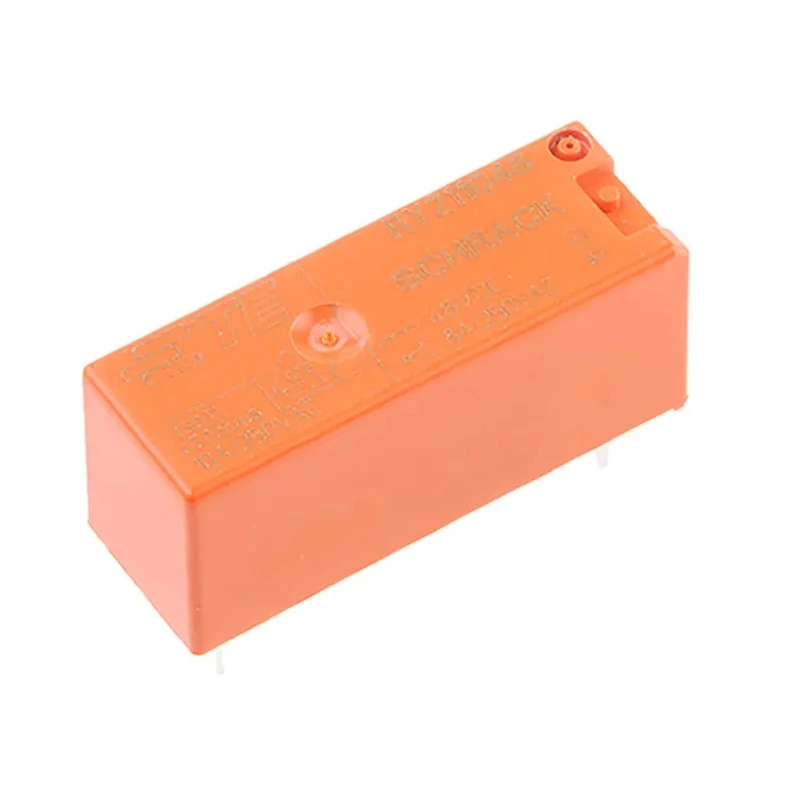

TE Connectivity Power Relay SPDT PCB Mount 48V DC Coil 8A Switching Current RY211048
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY211048 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 9.4kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- This SPDT relay provides efficient switching for power circuits.
- Coil voltage rated at 48V DC ensures consistent operational performance.
- Switching current of 8A supports moderate load control.
- Compact PCB mount design facilitates easy integration into electronic assemblies.
- Operating temperature range is from -40°C to 70°C, suitable for varied industrial environments.
- Coil resistance is 9.4kΩ with a coil power rating of 250mW for low power consumption.
- Contact material consists of silver alloy, enhancing durability and conductivity.
- Complies with IEC 60335-1, RoHS, and VDE standards ensuring safety and environmental compliance.
Product Description
TE Connectivity RY211048 power relay is a high-quality SPDT relay designed for PCB mounting applications requiring a 48V DC coil voltage and an 8A switching current. This relay is engineered to deliver reliable switching performance in a compact package, making it ideal for industrial, electrical, and automation uses.
The relay features a coil voltage rating of 48V DC and a coil resistance of 9.4kΩ, with a coil power consumption of 250mW. Its contact configuration is SPDT, with silver alloy contact material to ensure longevity and efficient current transfer. It supports switching AC voltages up to 400V AC and switching power up to 2kVA, accommodating a diverse range of power control requirements.
Designed to operate reliably within a temperature range of -40°C to 70°C, this relay is suited for harsh industrial environments. The dimensions of 28.5mm in length, 12.3mm in height, and 10.1mm in width enable versatile integration into compact PCB designs. It includes 3.2mm pinning with solder-type terminals for secure mounting.
The TE Connectivity RY series relay conforms to IEC 60335-1, RoHS, and VDE standards, certifying its compliance with safety and quality benchmarks. Manufactured in Czech Republic, this product represents precision engineering and robust construction.
This power relay is widely used in industrial automation, electrical equipment, HVAC controls, instrumentation, and other applications where reliable switching of power circuits is critical.
This SPDT relay provides efficient switching for power circuits. Coil voltage rated at 48V DC ensures consistent operational performance. Switching current of 8A supports moderate load control. Compact PCB mount design facilitates easy integration into electronic assemblies.
Operating temperature range is from -40°C to 70°C, suitable for varied industrial environments. Dimensions are 28.5mm length, 12.3mm height, and 10.1mm width, optimizing space usage. Coil resistance is 9.4kΩ with a coil power rating of 250mW for low power consumption.
Contact material consists of silver alloy, enhancing durability and conductivity. Complies with IEC 60335-1, RoHS, and VDE standards ensuring safety and environmental compliance. Manufactured in Czech Republic, assuring quality and precision engineering.
Explore the range of TE Connectivity Power Relays to find reliable solutions for your power switching needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this power relay is 48V DC.
This model supports a maximum switching current of 8A.
The dimensions of this relay are 28.5mm in length, 12.3mm in height, and 10.1mm in width.
The operating temperature range for this relay is from -40°C to 70°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance of this model is 9.4kΩ.
The coil power consumption for this relay is 250mW.
This relay can switch AC voltages up to 400V AC.
The contact material consists of silver alloy, enhancing durability and conductivity.
This relay complies with IEC 60335-1, RoHS, and VDE standards.
This relay is designed for PCB mounting, featuring solder-type terminals for secure installation.
This power relay is manufactured in the Czech Republic.
