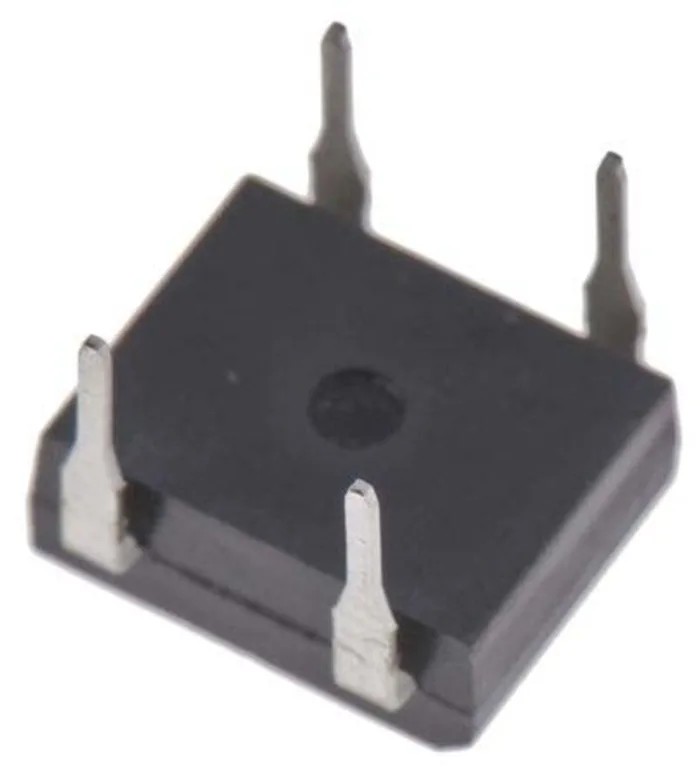

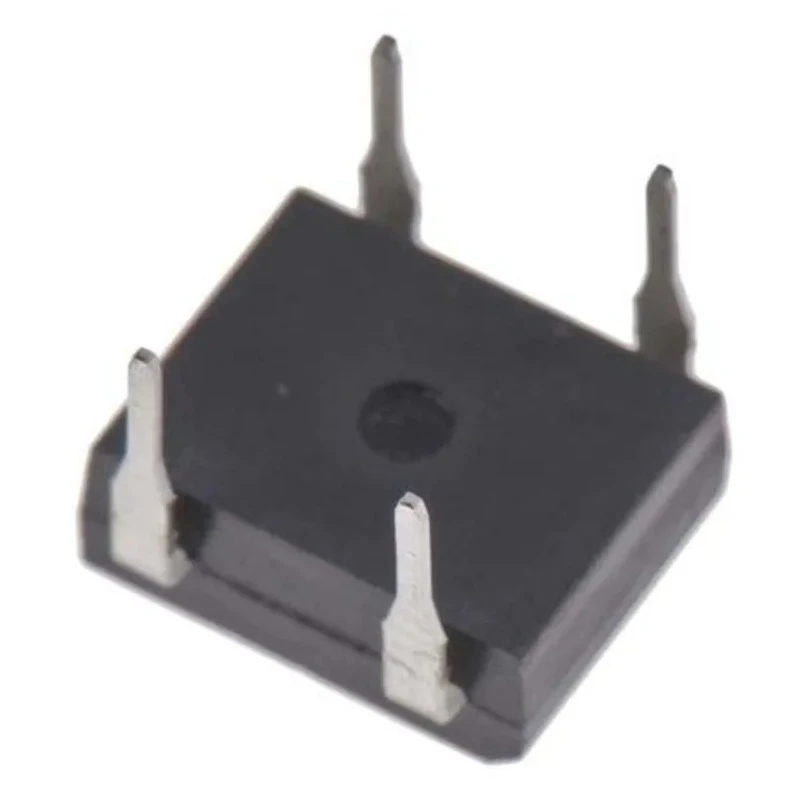

Vishay Bridge Rectifier, 400 V, 30 A, 4-Pin Single Through Hole Mount, Package DFM, DF Series DF04MA-E3/45
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 3.3mm |
| Length | 8.51mm |
| Model | DF04MA-E3/45 |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | DF |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFM |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- The bridge rectifier uses 4 pins for through-hole PCB mounting.
- It features a DFM package type from the DF series.
- Designed to operate at temperatures ranging from -55°C to 150°C.
- Offers a peak forward voltage of 1.1 V and low peak reverse current of 5 μA.
- Suitable for automated placement in electronic circuits for efficient AC to DC conversion.
- High surge current capability of 30 A for transient conditions.
- Manufactured in China with compliance to UL standard E54214.
Product Description
Vishay DF04MA-E3/45 Bridge Rectifier is a reliable electronic component designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification. It features a 4-pin single configuration suitable for through-hole mounting on printed circuit boards (PCBs), ensuring secure and robust installation for various electronic applications.
This device supports a peak reverse repetitive voltage of 400 V and a forward current of 30 A, accommodating heavy-duty electrical loads. It operates effectively in a temperature range from -55°C up to a maximum of 150°C, making it suitable for demanding industrial and commercial environments including power supplies and electronic control units.
The rectifier belongs to the DF series and is housed in a compact DFM package measuring 8.51 mm in length, 6.5 mm in width, and 3.3 mm in height. Its peak forward voltage is rated at 1.1 V and it exhibits a minimal peak reverse current of 5 microamperes, enhancing efficiency and reducing heat generation during use.
Key features include a high peak non-repetitive forward surge current of 30 A to handle transient spikes safely and reliable performance for single-phase applications. The miniature glass passivated chip junction technology and soldering pins design enable automated placement alignment in manufacturing processes.
The bridge rectifier converts AC input to DC output for seamless electrical operations. Compact through-hole mount DFM package facilitates easy PCB integration. Wide operating temperature range ensures versatility in various conditions.
Extensive surge current capability protects against voltage spikes. Accurate electrical characteristics minimize power loss and enhance durability. Manufactured with high-quality semiconductor materials for consistent performance.
Ideal for industrial machinery, power supplies, automotive electronics, and HVAC systems.
This component is manufactured in China and conforms to industry UL standard E54214. It is suited for use in electronic manufacturing, laboratory setups, and commercial power conversion units requiring reliable and efficient rectification.
Explore more electronic components and Bridge Rectifiers at EnvMart for your industrial and design needs.
