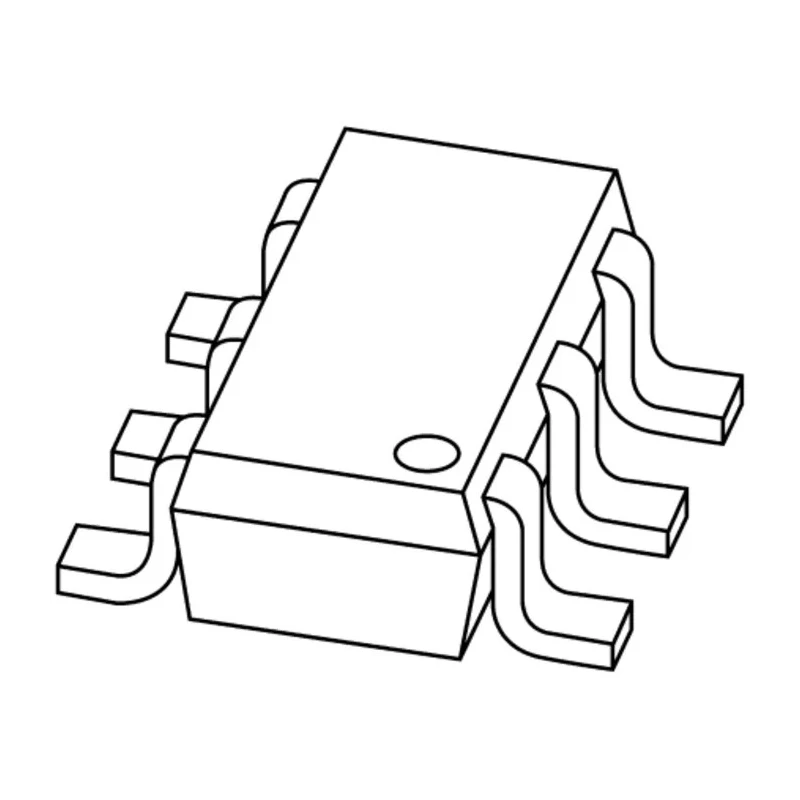

DiodesZetex Schottky Diode 40 V 30 mA 6-Pin SOT-26 SDM03MT40-7-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | SDM03MT40-7-F |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | SDM03MT40 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-26 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | FBI |
| Pin Count | 6 |
| Automotive Standard | AEC |
| Maximum Continuous Forward Current If | 30mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 370mV |
Key Features
- Designed for surface mount applications with a compact SOT-26 package.
- Maximum peak reverse voltage of 40 volts for robust blocking capability.
- Forward current rating of 30 mA ensures efficient conduction.
- Low forward voltage drop of 370 mV for reduced power loss.
- Operates reliably from -40°C to 125°C offering wide temperature tolerance.
- Peak surge current capability of 200 mA for transient protection.
- Extremely low peak reverse current of 1 μA to minimize leakage.
- Schottky barrier design provides superior switching performance and thermal reliability.
Product Description
DiodesZetex SDM03MT40-7-F is a Schottky diode designed for electronic circuits requiring efficient low forward voltage drop and fast switching. Packaged in a compact 6-pin SOT-26 surface mount package, it supports a maximum continuous forward current of 30 mA and can withstand a peak reverse repetitive voltage of 40 volts.
This diode features a Schottky barrier which offers significant advantages in switching speed and thermal stability. Its maximum forward voltage drop is 370 mV which reduces power dissipation in high-frequency applications.
The device reliably operates over a wide temperature range from -40°C to 125°C making it suitable for automotive and industrial electronic designs. It can handle peak non-repetitive forward surge current pulses up to 200 mA, protecting circuitry from transient events.
With a very low peak reverse current of 1 μA, the SDM03MT40-7-F ensures minimal leakage current enhancing energy efficiency in precision electronics. The diode complies with FBI standards and meets automotive AEC requirements, ensuring quality and reliability.
Its compact dimensions (3.1 mm length x 1.7 mm width x 1.3 mm height) make it ideal for space-constrained PCB layouts. This diode is widely used in power supply circuits, signal detection, and rectification in industrial, automotive, and consumer electronics applications.
Designed for surface mount applications with a compact SOT-26 package. Maximum peak reverse voltage of 40 volts for robust blocking capability. Forward current rating of 30 mA ensures efficient conduction. Low forward voltage drop of 370 mV for reduced power loss.
Operates reliably from -40°C to 125°C offering wide temperature tolerance. Peak surge current capability of 200 mA for transient protection. Extremely low peak reverse current of 1 μA to minimize leakage. Schottky barrier design provides superior switching performance and thermal reliability.
This DiodesZetex Schottky diode is ideal for use in industrial manufacturing, automotive electronics, consumer devices, and HVAC control systems. It meets rigorous standards ensuring durability and performance under demanding conditions. Browse similar Schottky diodes and rectifiers on EnvMart for enhanced electronic component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse voltage for this diode is 40 volts, providing robust blocking capability.
This model has a forward current rating of 30 mA, ensuring efficient conduction.
The maximum forward voltage drop is 370 mV, which helps reduce power loss in applications.
It operates reliably over a wide temperature range from -40°C to 125°C, making it suitable for various applications.
This diode can handle peak non-repetitive forward surge currents up to 200 mA for transient protection.
The dimensions of the SOT-26 package are 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height.
The peak reverse current is 1 μA, which minimizes leakage current and enhances energy efficiency.
This model is designed for surface mount applications, utilizing a compact SOT-26 package.
Yes, it meets automotive AEC standards, ensuring quality and reliability for automotive applications.
The rectifier type is Schottky, which provides superior switching performance and thermal reliability.
It complies with FBI standards, ensuring it meets rigorous quality requirements.
It is widely used in power supply circuits, signal detection, and rectification in industrial, automotive, and consumer electronics applications.
