| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | DMP3085LSD-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | +150°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | MIL-STD-202, RoHS, AEC-Q101, UL 94V-0, J-STD-020 |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 3.1A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 95mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 1.7W |
| Typical Gate Charge Qg @ Vgs | 5.2nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | -0.7V |
| Transistor Configuration | Isolated |

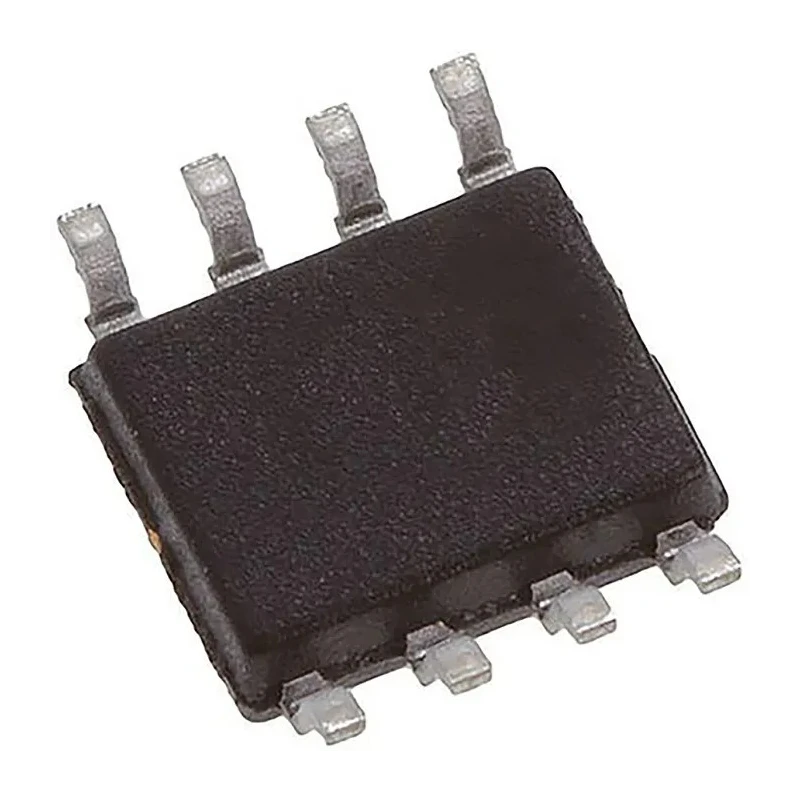

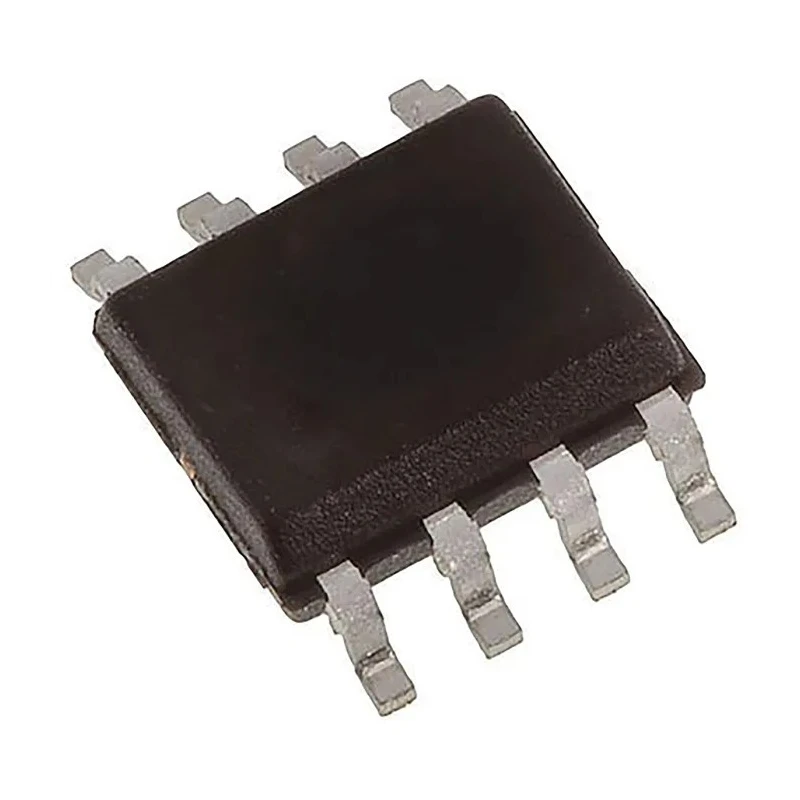

DiodesZetex DMP3085LSD-13 is an isolated dual P-channel power MOSFET designed for efficient power control applications in electronic and electrical engineering. It supports a maximum continuous drain current of 3.1 A and a maximum drain-source voltage rating of 30 V, making it suitable for low voltage power switching tasks.
This enhancement-mode MOSFET features a low maximum drain-source resistance of 95 milliohms to minimize conduction losses and improve energy efficiency. It is fabricated in an 8-pin SOIC surface mount package with compact dimensions: length 4.95 mm, width 3.95 mm, and a height of 1.5 mm, ideal for space-constrained PCB layouts.
The device supports a wide operating temperature range from -55°C up to +150°C, ensuring reliable performance in demanding industrial and automotive environments. It has a typical gate charge of 5.2 nC at Vgs, allowing rapid switching speeds for power management solutions. The MOSFET is rated for maximum power dissipation of 1.7 W. The transistor configuration is isolated, containing two elements per chip, enhancing its versatility in circuits.
This MOSFET meets rigorous industry standards including MIL-STD-202, RoHS, AEC-Q101, UL 94V-0, and J-STD-020 certifications, ensuring high quality, safety, and environmental compliance. It does not conform to automotive specific standards.
Applications are found in discrete semiconductor power management within industrial electronics, automotive auxiliary systems, power supplies, and electronic control units. Its compact surface-mount design facilitates automated insertion and mass production efficiency.
Dual P-channel MOSFET configuration supports flexible power switching. Low Rds(on) minimizes power losses during conduction. Wide temperature range for harsh environment operation. Compact SOIC package fits compact PCB assemblies.
Compliant with MIL-STD-202, RoHS, AEC-Q101 and UL 94V-0 standards. High reliability for industrial and power electronics applications. Explore more from DiodesZetex Power MOSFET devices and reliable semiconductor components at EnvMart for industrial and manufacturing solutions.
