Molex Nano-Fit Series Right Angle Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 2 Row, Shrouded 105314-1104

Free Delivery in India | Lowest Global Shipping Charges

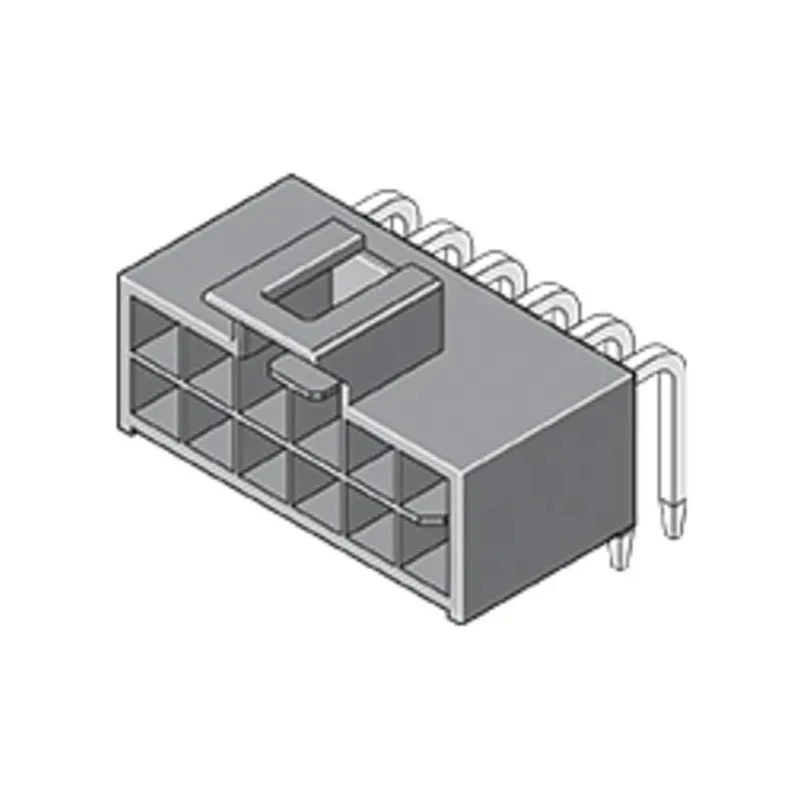

Molex Nano-Fit Series Right Angle Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 2 Row, Shrouded 105314-1104

Name: Molex Nano-Fit Series Right Angle Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 2 Row, Shrouded 105314-1104
Brand: Molex
SKU: 218984



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	6.5A
Mount Type	Through Hole
Contact Material	Brass
Series	Nano-Fit
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm

Key Features

Features a shrouded, dual row configuration for secure mating.
Supports operating voltage up to 250V and current up to 6.5A.
Constructed with brass contacts plated in tin for durability.
Designed for operating temperatures ranging from -40°C to 105°C.
Termination is by solder with a 3.2 mm tail pin length for strong PCB attachment.
Compact Nano-Fit series enables use on multi-layer boards without requiring through holes.
Includes positive-lock housing with anti-snag design to protect contacts.
Ideal for industrial, electronics, and power connector applications requiring compact, reliable interfaces.

Product Description

The Molex 105314-1104 Nano-Fit Series Right Angle Through Hole PCB Header is a shrouded, dual row connector designed for robust wire-to-board applications. Featuring 4 male brass contacts plated with tin, it supports up to 6.5 amperes of current and a voltage rating of 250 volts. Its 2.5 mm pitch and solder termination with 3.2 mm tail pin length enable secure connections on printed circuit boards.

This PCB header is engineered for demanding industrial and electronic uses, accommodating operating temperatures from -40°C to 105°C. The right angle orientation and through hole mounting facilitate optimal PCB layout and assembly. The Nano-Fit series is among the smallest fully isolated headers, enabling multi-layer board use without the need for through holes, which is advantageous in compact electronic designs.

The connector features a positive-lock housing with an anti-snag design to ensure reliable mated connections and prevent accidental dislodging, making it suitable for manufacturing and commercial electronic equipment. Fully isolated terminals and a 4-point contact interface enhance electrical performance and reliability.

Shrouded, dual row right angle PCB header. 4 male brass contacts plated with tin. 2.5 mm pitch suitable for compact PCB layouts. Supports 250V and 6.5A current ratings. Operating temperature range: -40°C to 105°C. Solder termination with 3.2 mm tail pins.

Positive-lock housing ensures secure connections. Compact size enables multi-layer board design use.

This Molex Nano-Fit header is ideal for electronics manufacturing, industrial control systems, and commercial electrical applications needing compact, high-performance PCB connectors. It supports enhanced assembly efficiency and durability for a wide range of electrical devices and systems.
