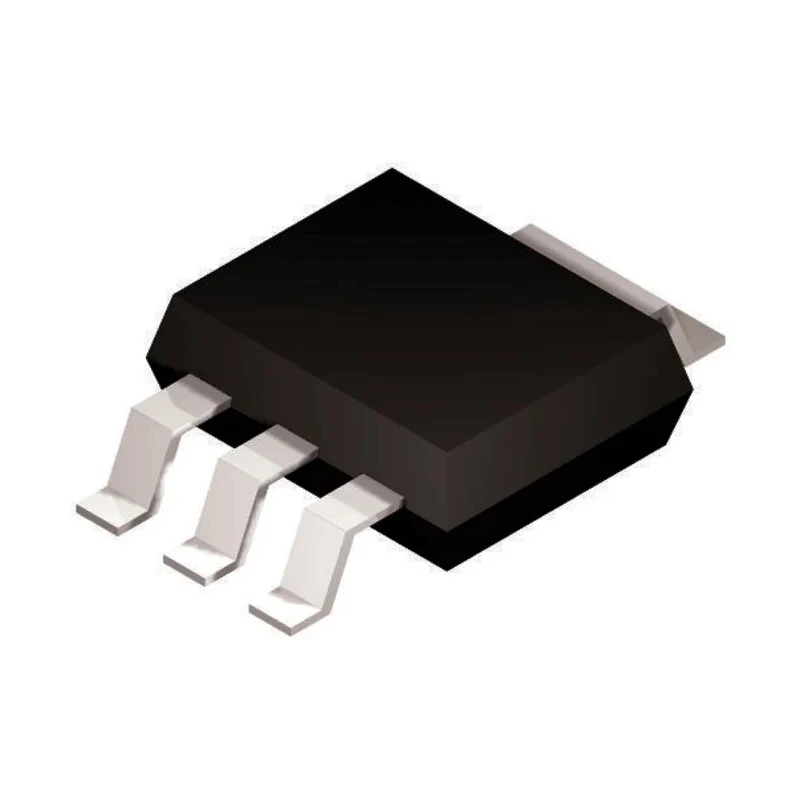

DiodesZetex Bipolar Power Transistor NPN 9A 20V 4-Pin SOT-223 ZXTN19020DGTA

DiodesZetex ZXTN19020DGTA is a bipolar power transistor designed for robust high-current applications requiring an NPN configuration. It supports a maximum collector current of 9 amperes and a maximum collector-emitter voltage of 20 volts, making it a reliable choice for electronic circuits needing good power handling.

The transistor comes in a 4-pin SOT-223 package, designed for surface mount technology on PCBs, enabling compact and efficient layouts. It offers a maximum power dissipation of 9.4 watts, which supports effective thermal management in demanding electrical environments.

Operating comfortably over a wide temperature range from -55°C to 150°C, this part is suitable for industrial, automotive, and commercial electronic applications. Its minimum DC current gain of 50 ensures efficient amplification and signal control.

The device meets the stringent AEC-Q101 automotive standard, attesting to its reliability and quality for automotive electronics systems. With a high transition frequency of up to 160 MHz, it can be used in high-speed switching and amplification functions.

Key features include its compact size dimensions of approximately 6.55 mm length, 7.1 mm width, and 1.65 mm height, making it suitable for space-constrained designs. The 4-pin layout supports secure soldering and circuit integration for discrete semiconductor projects.

This transistor supports a maximum DC collector current of 9 amperes. The maximum collector-emitter voltage rating is 20 volts. It has a transistor polarity of NPN type suitable for various switching applications. The package type is compact SOT-223 designed for surface mount technology.

Maximum power dissipation is rated at 9.4 watts allowing efficient heat handling. The device operates effectively within a temperature range from -55°C to 150°C. Featuring 4 pins, it offers reliable mounting and connectivity in circuits.

The transistor has a minimum DC current gain (hFE) of 50 supporting amplification tasks. It complies with the automotive standard AEC-Q101 ensuring high quality. The maximum transition frequency is 160 MHz, suitable for high-speed electronics.

This bipolar transistor is widely used in industrial electronics, automotive control modules, power management circuits, and semiconductor applications requiring reliable switching and amplification. It is also compatible with electronic development kits and design platforms requiring surface mount discrete components.
