DiodesZetex Bipolar PNP Transistor 1 A Maximum Collector Current 100 V Maximum Collector Emitter Voltage ZXTP25100CZTA

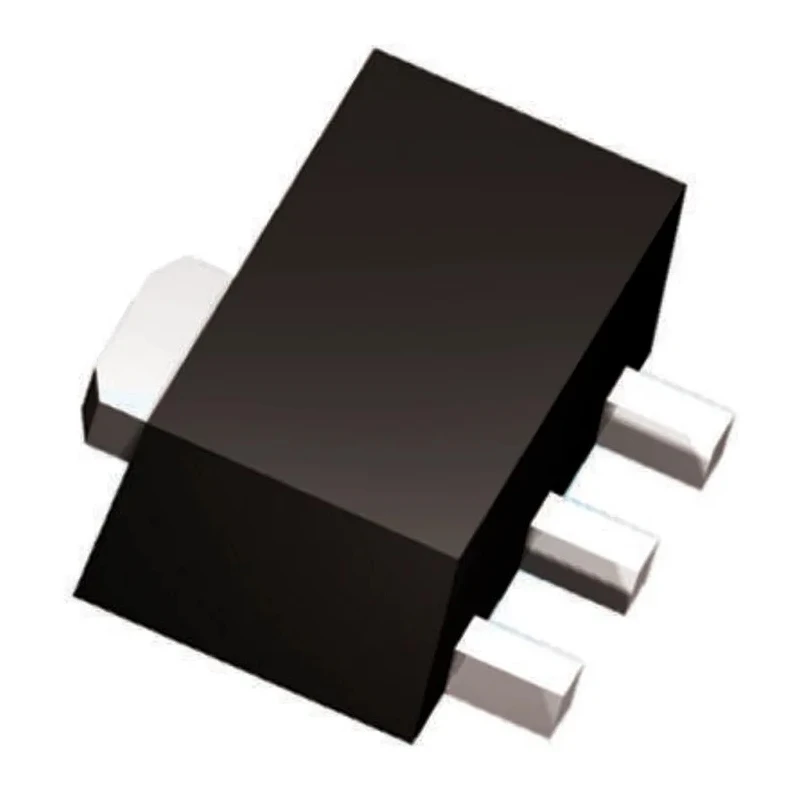

DiodesZetex ZXTP25100CZTA is a bipolar PNP transistor designed for discrete semiconductor applications requiring moderate current and voltage ratings. It supports a maximum DC collector current of 1 ampere and a maximum collector emitter voltage of 100 volts, packaged in a compact and reliable 3-pin SOT-89 surface mount device.

This transistor features a maximum power dissipation of 15.7 watts, allowing it to efficiently handle thermal loads in industrial, automotive, and consumer electronics circuits. With a maximum transition frequency of 180 MHz, it is suitable for medium to high-frequency amplification and switching tasks.

With a wide operating temperature range from -55°C to 150°C, the ZXTP25100CZTA ensures robust performance in demanding environments. It meets the stringent automotive AEC-Q101 qualification, confirming its suitability for automotive electronic control systems and other high-reliability applications.

The device’s compact dimensions - approximately 4.6 mm long, 4.25 mm high, and 1.6 mm wide - make it an excellent choice for space-constrained PCB layouts. Its single transistor configuration as a PNP type supports general-purpose amplification and switching in bipolar transistor circuits.

Designed for surface mount PCB assembly with SOT-89 package. Maximum collector current rating of 1 A for versatile power handling. Collector emitter voltage of 100 V for moderate voltage circuits. High maximum power dissipation of 15.7 W for thermal efficiency.

Transition frequency of 180 MHz suitable for fast switching and amplification. Operates reliably within -55°C to 150°C temperature range for tough industrial use. Complies with automotive standard AEC-Q101, suitable for automotive electronics.

Compact package dimensions aid in miniaturized electronic designs. Single PNP transistor configuration for general purpose use. Minimum DC current gain (hFE) of 20 for reliable performance.

This transistor is ideal for use in industrial electronic devices, automotive circuits, consumer electronic systems, and anywhere a robust PNP transistor is needed with moderate voltage and current ratings. Its surface-mount design facilitates automated assembly and space savings on modern PCBs.
