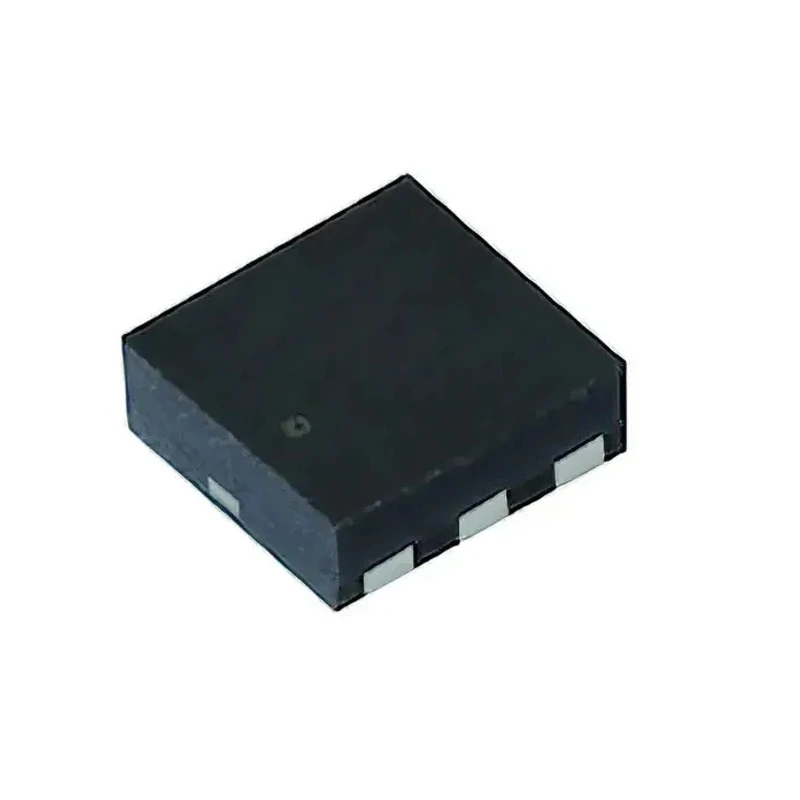

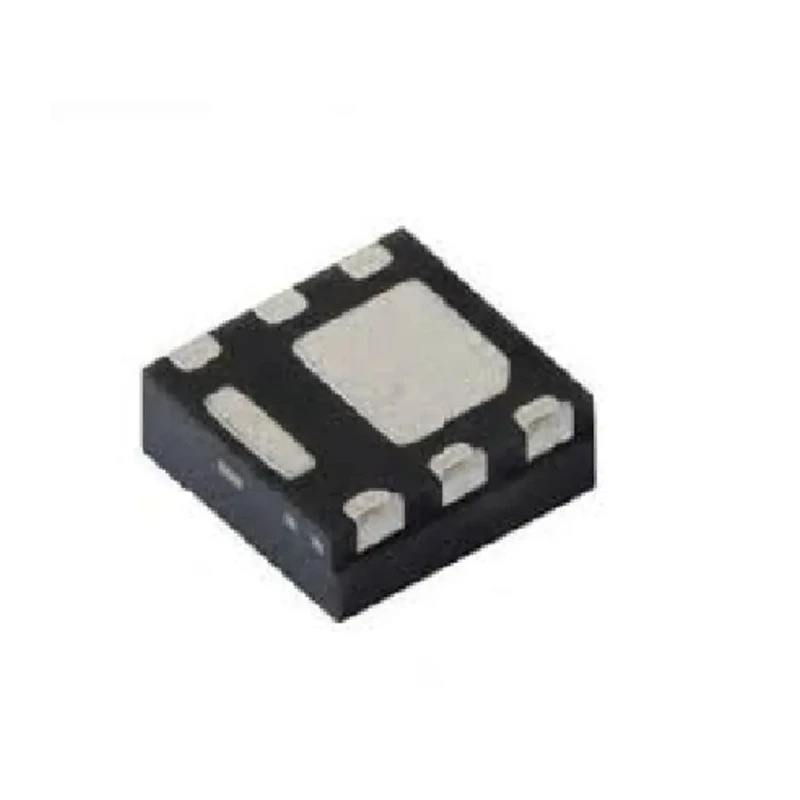

Vishay N-Channel MOSFET, 3.73 A Maximum Continuous Drain Current, 20 V Drain Source Voltage, Depletion SQA446CEJW-T1_GE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 2.05mm |
| Model | SQA446CEJW-T1_GE3 |
| Width | 2.05mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerPAK SC-70W-6L |
| Minimum Operating Temperature | -55°C |
| Pin Count | 7 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | -3.73A |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 0.02Ω |
| Channel Mode | Depletion |
| Maximum Power Dissipation Pd | 13.6W |
| Typical Gate Charge Qg @ Vgs | 5.1nC |
| Maximum Gate Source Voltage Vgs | 8V |
| Forward Voltage Vf | 1.2V |
Key Features
- This MOSFET supports surface mount technology for PCB assembly.
- It has a maximum power dissipation rating of 13.6 W.
- The device features a low maximum drain source resistance of 0.02 ohms.
- Typical gate charge is 5.1 nC, enabling fast switching performance.
- Operational temperature range extends from -55°C up to a maximum of 125°C.
- The maximum gate source voltage rating is ±8 V and forward voltage is 1.2 V.
- The MOSFET is AEC-Q101 qualified, making it suitable for automotive applications.
- The compact package dimensions are 2.05 mm length and 2.05 mm width.
Product Description
Vishay SQA446CEJW-T1_GE3 is a high-performance automotive grade N-Channel MOSFET designed for applications requiring reliable operation at 20 V and high temperatures up to 125°C. Packaged in a compact 7-pin PowerPAK SC-70W-6L surface mount configuration, it offers excellent power efficiency with a low maximum drain source resistance of 0.02 ohms and a maximum continuous drain current rating of 3.73 A.
The device operates in depletion mode and exhibits a typical gate charge of 5.1 nC at the gate-source voltage, facilitating fast and efficient switching suitable for power management and electronic control units. The maximum power dissipation rating of 13.6 W supports high power density circuits commonly found in automotive and industrial environments.
Designed according to the AEC-Q101 automotive standard, this MOSFET ensures robust performance under thermal and electrical stress. Its operating temperature range from -55°C to 125°C extends its usability to harsh environments, making it ideal for automotive electronics, industrial power supplies, and other demanding semiconductor uses.
The compact 2.05 mm by 2.05 mm PowerPAK SC-70W-6L package aids in space-constrained PCB layouts, supporting surface mount technology assembly. The maximum gate-source voltage of ±8 V and forward voltage of 1.2 V provide stable operation and reliable switching characteristics.
This MOSFET supports surface mount technology for PCB assembly. It has a maximum power dissipation rating of 13.6 W. The device features a low maximum drain source resistance of 0.02 ohms. Typical gate charge is 5.1 nC, enabling fast switching performance.
Operational temperature range from -55°C to 125°C. The maximum gate source voltage rating is ±8 V and forward voltage is 1.2 V. AEC-Q101 automotive qualification ensures reliability. Compact size with 2.05 mm length and width.
Suitable for automotive, industrial, and power management applications.
Choose Vishay SQA446CEJW-T1_GE3 for your high-reliability MOSFET requirements in automotive and industrial power electronics. Explore EnvMart’s extensive category for MOSFETs and related semiconductor components to find the ideal parts for your project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 3.73 A.
The maximum drain-source voltage rating is 20 V.
It operates within a temperature range of -55°C to 125°C.
The maximum power dissipation rating is 13.6 W.
The typical gate charge is 5.1 nC.
This model is packaged in a PowerPAK SC-70W-6L configuration.
The maximum gate-source voltage rating is ±8 V.
The dimensions are 2.05 mm in length and 2.05 mm in width.
It is AEC-Q101 qualified, making it suitable for automotive applications.
The maximum drain-source resistance is 0.02 ohms.
This model features an N-channel configuration and operates in depletion mode.
The forward voltage rating is 1.2 V.
