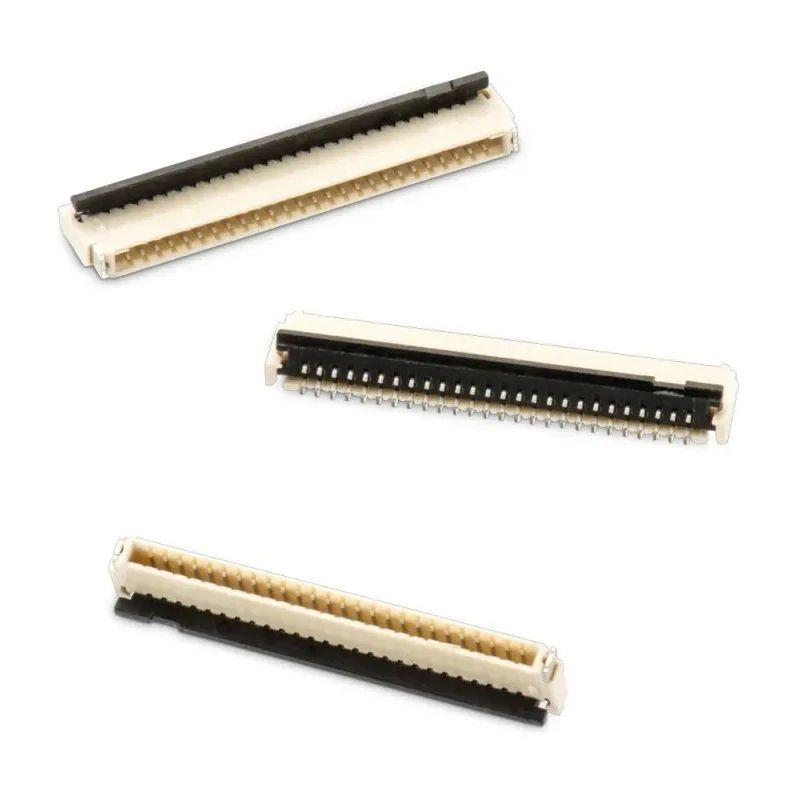

Wurth Elektronik 28 Way Horizontal Male FPC Connector 0.5 mm Pitch Surface Mount 687128182122

Wurth Elektronik 687128182122 is a 28 Way Horizontal Male FPC Connector designed with a 0.5 mm pitch and surface mount termination for advanced PCB assembly applications. This connector provides efficient signal and power transmission with a current capacity of 500mA and operational voltage of 250V AC.

The connector's contacts are made from phosphor bronze, offering excellent electrical properties, while the tin over nickel plating ensures reliable corrosion resistance. The housing is constructed from liquid crystal polymer, providing mechanical strength and thermal stability over the operating temperature range of -55°C to 85°C.

This component incorporates a zero insertion force (ZIF) mechanism to facilitate easy connection and disconnection without damage. It also features a locking mechanism for secure retention and dual contact positions arranged in a single row. The horizontal orientation and surface mount type termination are ideal for compact and dense PCB layouts.

Typical use cases of this FPC Connector include applications in industrial electronics, telecommunications, instrumentation, and consumer electronic devices requiring reliable and compact connector solutions.

Users should adhere to Wurth Elektronik's soldering profiles to maintain warranty and component integrity. Cleaning should avoid harsh agents and excessive force to prevent damage. This connector is not designed for washing or submersion in liquids.

Connector features 28 contact points made of phosphor bronze for optimal conductivity. Supports a current rating of 500mA and voltage up to 250V AC. Manufactured with a liquid crystal polymer housing for durability and stability.

Incorporates a ZIF insertion force and locking mechanism for reliable connection integrity. Designed for horizontal orientation with surface mount termination type. Operating temperature range from -55°C to 85°C ensures wide application versatility.

Contact plating utilizes tin over nickel to prevent corrosion and maintain performance. Features dual contact position and a single row configuration for compact design. Explore more Wurth Elektronik connectors and PCB assembly components on EnvMart to find qualified tools and parts for your industrial, electronic, and manufacturing projects.
