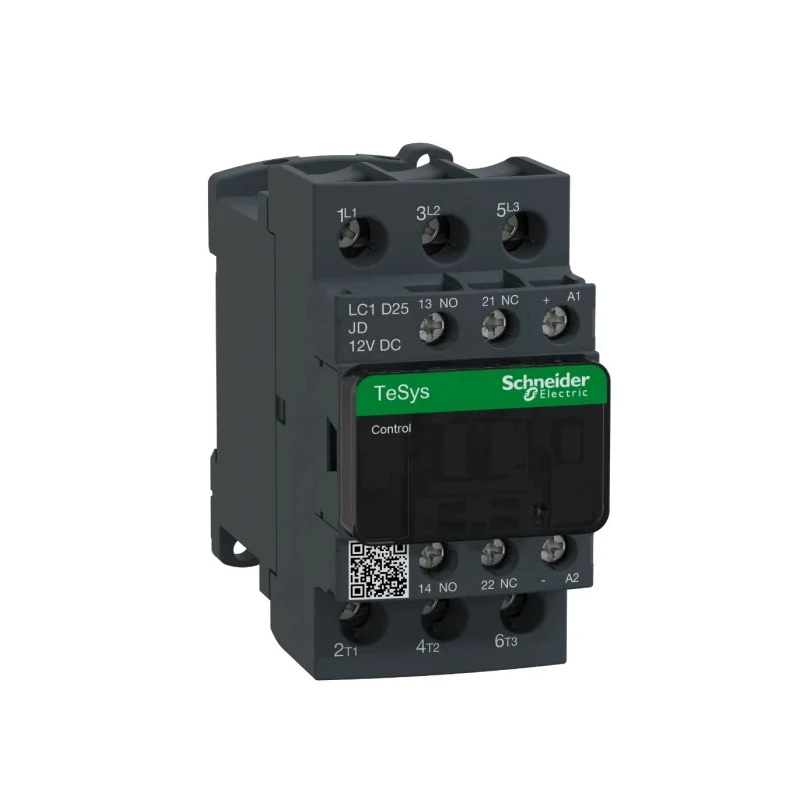

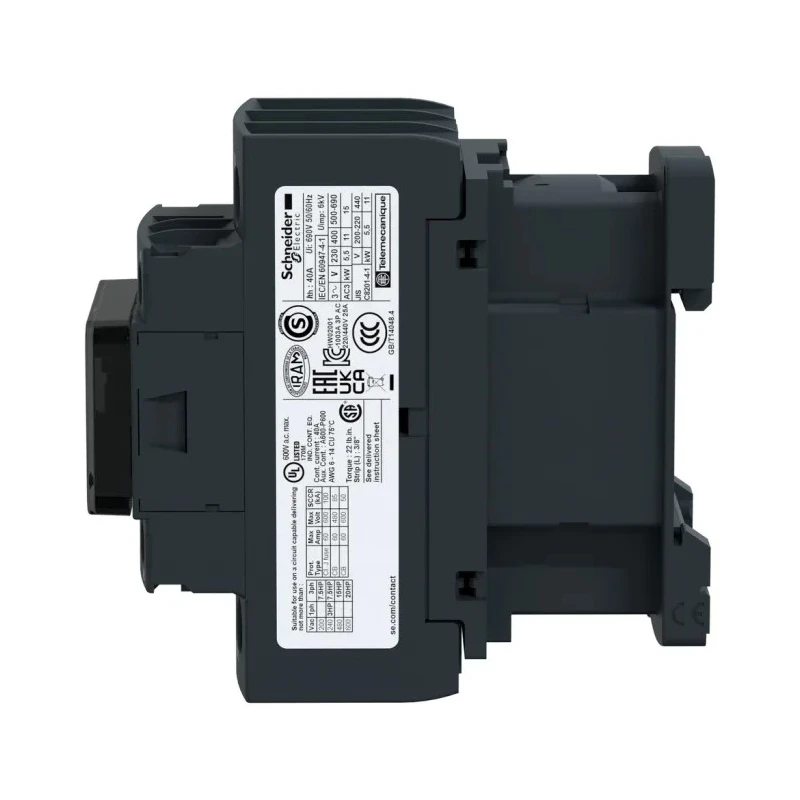

Schneider Electric TeSyS D Contactor, 12V DC Coil, 3-Pole, 25A, 3 HP, 3 NO, 690V AC/DC LC1D25JD

Schneider Electric LC1D25JD TeSyS D Contactor is a robust electrical device engineered for motor control and resistive load switching in industrial and commercial applications. Equipped with a 12V DC coil and rated for 25A contact current, this 3-pole contactor supports voltages up to 690V AC/DC and power ratings of 3 HP.

The contactor features a compact footprint with a width of 45mm and is suitable for DIN rail mounting or screw fixing, facilitating easy integration into control panels. Its screw clamp terminals enable secure and reliable wiring for both load and auxiliary circuits.

Designed to operate efficiently in demanding environments, the LC1D25JD reliably functions within an ambient temperature range from -5°C to 60°C and supports electrical durability with up to 3600 cycles per hour. The integrated auxiliary contacts provide 1 NO and 1 NC configuration, with the NC contact mirror certified for additional safety and reliability in complex control schemes.

This contactor meets multiple international certifications including UL, CSA, IEC, CCC, EAC, and Marine standards. It is qualified as a Green Premium product by complying with RoHS and REACh directives, enabling users to reduce environmental impact while maintaining high performance.

Typical applications include motor starters for various motor types, resistive load switching, and use in industrial automation setups. It can be combined with suitable circuit breakers and fuses to increase short circuit current ratings (SCCR) up to 85kA or 100kA depending on configurations.

The product dimensions are 85mm length, 101mm depth, and 45mm width, weighing approximately 0.37 kg. Its versatile features and certifications make it suitable for industries such as manufacturing, HVAC, water treatment, and industrial automation.

Rated for 3 HP power at 12V DC coil voltage. Features 3 normally open (NO) contacts for reliable switching. Compact design with 45mm width suitable for DIN rail mounting. Screw clamp terminals for secure load and auxiliary connections.

Operates reliably within -5°C to 60°C ambient temperature range. Includes 1 normally open and 1 normally closed auxiliary contact, with mirror certification on NC contact. Supports operating rates up to 3600 cycles per hour for high durability.

Certified compliant with international standards including UL, CSA, IEC, CCC, EAC, and Marine. Green Premium product complying with RoHS and REACh directives. Explore more Contactors and control gear from Schneider Electric and related products at EnvMart to meet diverse automation and motor control requirements.
