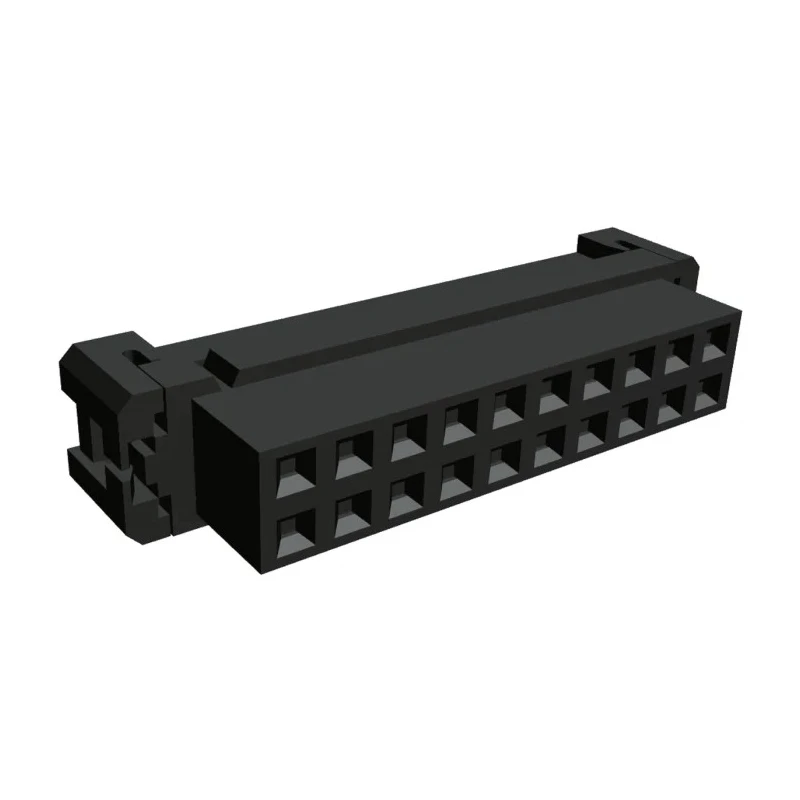

TE Connectivity 20-Way Shrouded IDC Connector Female for Cable, 2 Row, AMP-LATCH Series 1-111626-9

TE Connectivity 1-111626-9 is a 20-way, 2 row shrouded IDC (Insulation Displacement Connector) female connector designed for cable mounting applications requiring reliable electrical connections. It is part of the AMP-LATCH series, featuring a 2.0 x 2.0 mm mating grid compatible with 1.0 mm pitch ribbon cables.

This connector uses phosphor bronze contacts plated with gold, offering excellent conductivity and resistance to corrosion. The housing is composed of UL 94V-0 rated polyester, providing robust mechanical strength and flame retardant properties. It is designed with a right-angle orientation, facilitating installation in space-constrained environments.

With a current rating of 500mA and a voltage rating of 125V AC, this connector is suitable for low-power electronic applications. It operates reliably in a wide temperature range from -65°C to 105°C, making it ideal for various industrial, electronic, and telecommunications applications.

The AMP-LATCH termination style ensures a secure attachment to cables, supporting quick and robust assembly in manufacturing and repair processes. This non-polarized ribbon cable receptacle is widely used in electronic component assemblies where reliability and compliance with safety standards are paramount.

Manufactured in the United States, this component meets stringent quality requirements and is suitable for integration into electronic hardware, control systems, instrumentation, and industrial equipment wiring.

Supports a current rating of 500mA for reliable connectivity. Rated for 125V ac operational voltage ensuring safe usage. Constructed with phosphor bronze contacts plated in gold for durability and conductivity. Features right-angle orientation and AMP-LATCH style termination for secure cable connections.

Operates effectively between -65°C and 105°C temperature range for versatile applications. Housing made from durable polyester material compliant with UL 94V-0 flammability rating. Non-polarized design suitable for ribbon cables with 1.0mm pitch.

Manufactured in the United States ensuring quality standards. Explore more IDC Connectors and electronic components at EnvMart for your industrial, laboratory, construction, and manufacturing needs.
