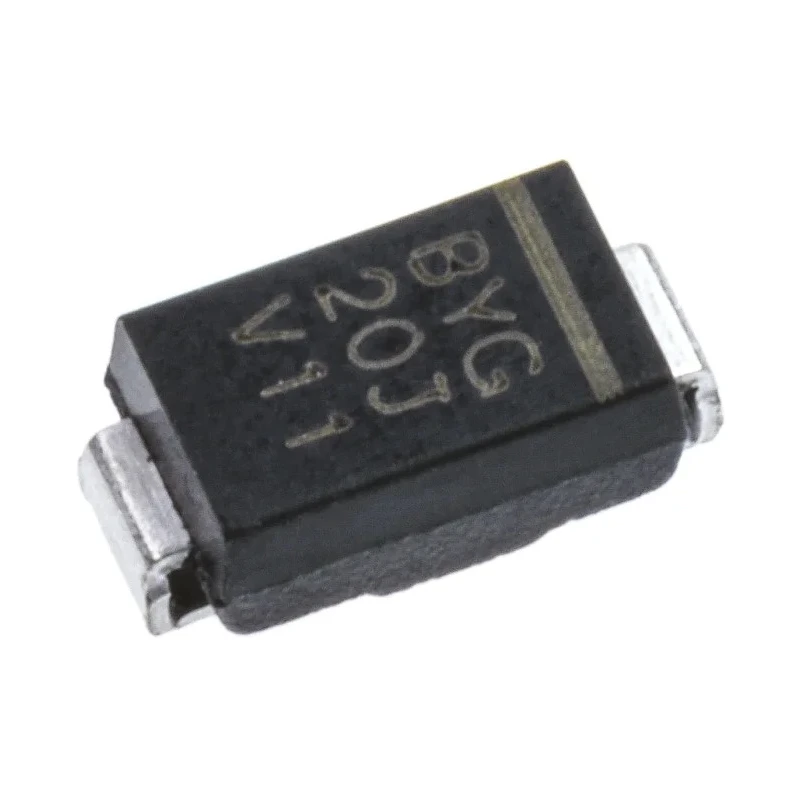

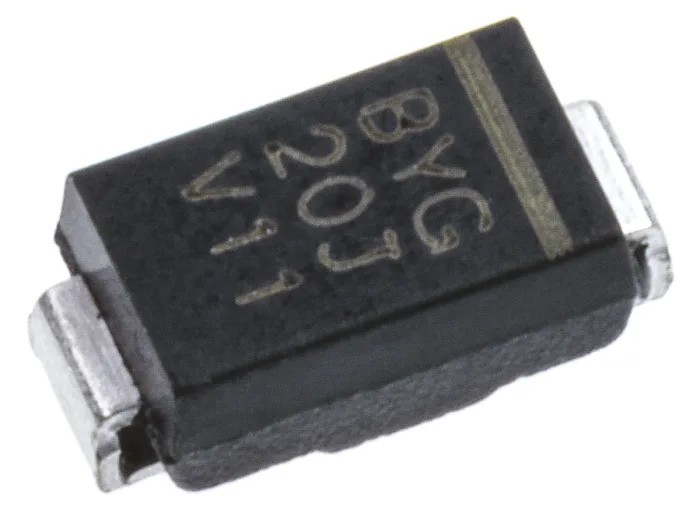

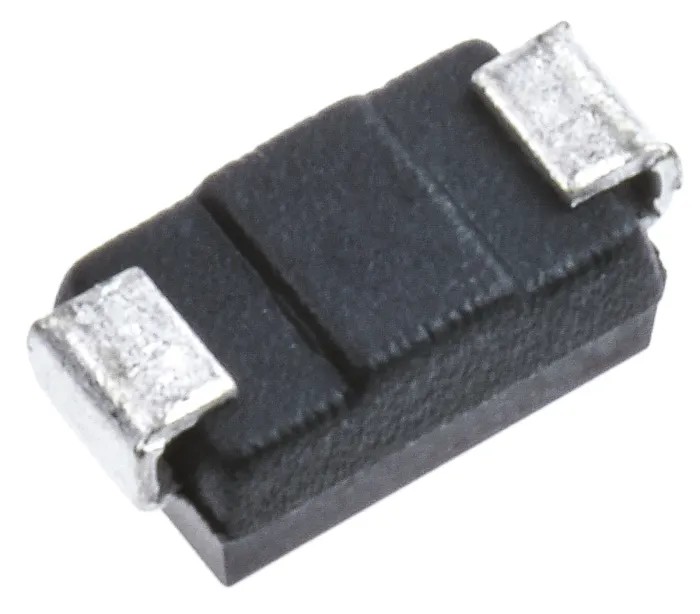

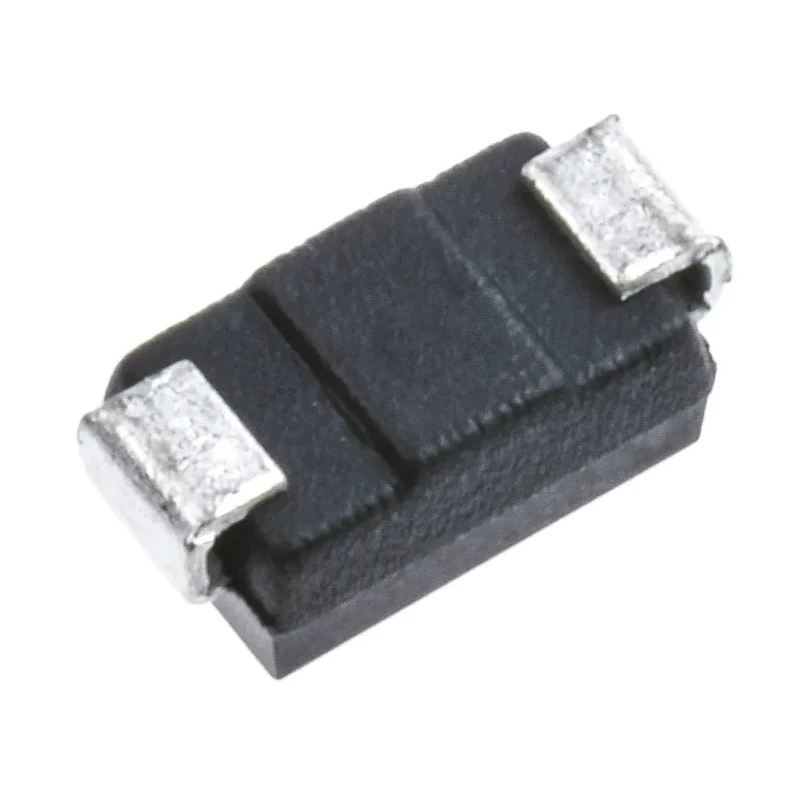

Vishay 600 V 1.5 A Avalanche Diode 2-Pin Surface Mount DO-214AC BYG20J-E3/TR3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | BYG20J-E3/TR3 |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | BYG20J |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Avalanche |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.4V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Designed for ultrafast recovery applications with a peak reverse recovery time of 75 ns.
- Supports a peak non-repetitive forward surge current of 30 A.
- Single diode configuration with 2-pin connection.
- Operating temperature range from -55°C up to 150°C.
- Complies with RoHS standards and AEC-Q101 automotive standard.
- Ideal for high-frequency switched mode power supplies, inverters, and freewheeling diodes.
- Manufactured in China with high quality assurance by Vishay.
Product Description
Vishay BYG20J-E3/TR3 avalanche diode is a high-quality semiconductor component packaged in a compact DO-214AC surface mount format. It is designed to handle a maximum continuous forward current of 1.5 A and a peak reverse repetitive voltage of 600 V, making it suitable for various industrial and electronic applications.
This single diode device features ultrafast reverse recovery times of 75 ns, enhancing switching efficiency in high-frequency circuits. It withstands high surge currents up to 30 A, ensuring robustness in transient conditions.
The diode's operating temperature range extends from -55°C to 150°C, allowing reliable performance across diverse environments. Its small form factor with dimensions 4.5 mm length, 2.79 mm width, and 2.09 mm height facilitates compact PCB layouts.
Certified under RoHS and automotive AEC-Q101 standards, this diode is well-suited for demanding applications including switched mode power supplies (SMPS), inverters, and freewheeling diode circuits in automotive and industrial equipment.
Designed for ultrafast recovery with 75 ns peak reverse recovery time. Rated continuous forward current of 1.5 A supports steady-state loads. Peak non-repetitive forward surge current of 30 A handles transient overloads effectively.
Compact surface mount package DO-214AC provides ease of installation on PCBs. Wide operating temperature range from -55°C to 150°C ensures versatile deployment. Meets RoHS and AEC-Q101 automotive quality standards for reliable performance.
Manufactured in China by Vishay with stringent quality controls.
This diode is integral to electronic design and manufacturing sectors, supporting applications in industrial automation, power conversion, automotive electronics, laboratory instrumentation, and other fields requiring robust avalanche diode performance.
For professionals seeking reliable diode solutions, Vishay's BYG20J-E3/TR3 presents a proven option combining performance, compliance, and compact design. Explore similar semiconductor components and Vishay products in the EnvMart catalog for comprehensive procurement needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the BYG20J-E3/TR3 is 1.5 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The peak reverse recovery time for this diode is 75 ns, which enhances its switching efficiency in high-frequency applications.
The dimensions of this diode are 4.5 mm in length, 2.79 mm in width, and 2.09 mm in height.
The operating temperature range for the BYG20J-E3/TR3 extends from -55°C to 150°C.
This diode can handle a peak non-repetitive forward surge current of up to 30 A.
The diode is packaged in a DO-214AC surface mount format, facilitating easy installation on PCBs.
Yes, it complies with RoHS standards and the AEC-Q101 automotive standard.
The BYG20J-E3/TR3 is classified as an avalanche rectifier.
The maximum forward voltage for this model is 1.4 V.
This diode is suitable for high-frequency switched mode power supplies, inverters, and freewheeling diodes.
The BYG20J-E3/TR3 has a 2-pin configuration.
