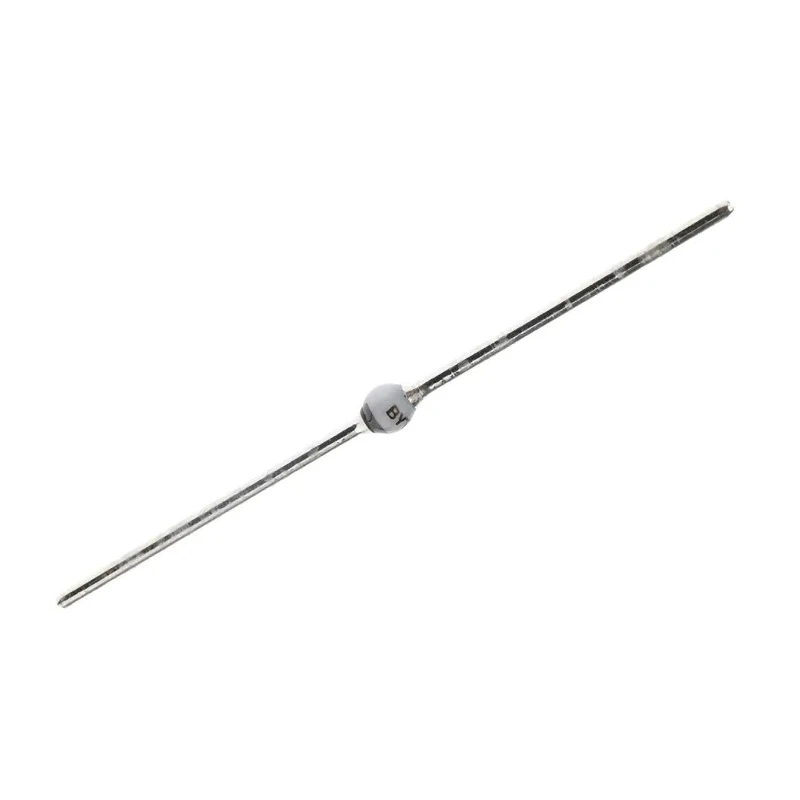

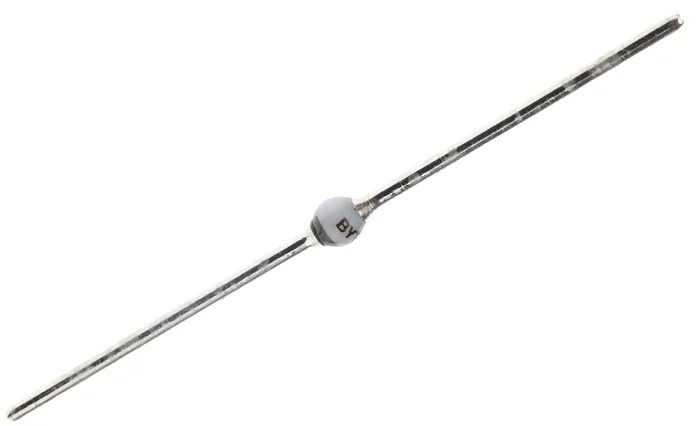

Vishay 1 kV 3 A Avalanche Diode 2-Pin SOD-64 BYT78-TAP

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1 kV 3 A Avalanche Diode 2-Pin SOD-64 BYT78-TAP

Name: Vishay 1 kV 3 A Avalanche Diode 2-Pin SOD-64 BYT78-TAP
Brand: Vishay
SKU: 217674
Price: 1.13 USD
Availability: InStock



Category Semiconductor Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	4.3mm
Length	4mm
Model	BYT78-TAP
Width	4.3mm
Mount Type	Through Hole
Series	BYT78
Maximum Operating Temperature	175°C
Package Type	SOD-64
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Avalanche
Peak Reverse Current Ir	1μA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	1.2V
Peak Reverse Recovery Time trr	250ns

Key Features

Features a maximum continuous forward current of 3 amperes.
Can withstand peak reverse repetitive voltage up to 1000 volts.
Utilizes avalanche rectifier technology for superior performance.
Compact dimensions of approximately 4.3 mm x 4 mm x 4.3 mm in SOD-64 packaging.
Capable of operating within a temperature range from -55°C to 175°C.
Peak non-repetitive forward surge current rating of 100 amperes.
Low maximum forward voltage of 1.2 volts ensures efficient conduction.
Quick peak reverse recovery time of 250 nanoseconds suitable for high-speed switching.

Product Description

Vishay BYT78-TAP is a high-performance avalanche diode designed for industrial and electronic applications requiring fast recovery and reliable voltage withstand. The diode features a robust maximum continuous forward current rating of 3 A and can tolerate peak reverse repetitive voltages up to 1 kV, making it suitable for power electronics, switching circuits, and protection applications.

This device is housed in a compact SOD-64 package with dimensions approximately 4.3 mm in height and width, and 4 mm in length, offering a small footprint ideal for densely packed PCBs. Its single diode configuration with two pins allows straightforward through-hole mounting for ease of integration.

The BYT78-TAP supports operation over a broad temperature range from -55°C to 175°C, accommodating harsh environments common in industrial and automotive settings. Its peak non-repetitive forward surge current is rated at 100 A, providing resilience against transient load conditions.

With a low maximum forward voltage of 1.2 V and a fast peak reverse recovery time of 250 ns, this diode contributes to efficient switching performance and power savings. It is designed and manufactured to Vishay’s quality standards, ensuring reliability in demanding semiconductor applications.

Maximum continuous forward current: 3A. Peak reverse repetitive voltage: 1000V. Avalanche rectifier type for enhanced voltage handling. Package: SOD-64, dimensions approx. 4.3 x 4 x 4.3 mm. Operating temperature range: -55°C to 175°C.

Peak non-repetitive forward surge current: 100A. Maximum forward voltage: 1.2V. Fast peak reverse recovery time: 250ns. Through-hole mount type.

This diode is well-suited for use in industrial electronics, power management systems, switching power supplies, and protection circuits. Its versatile specifications make it a dependable choice for semiconductors requiring fast, efficient avalanche diode operation.
