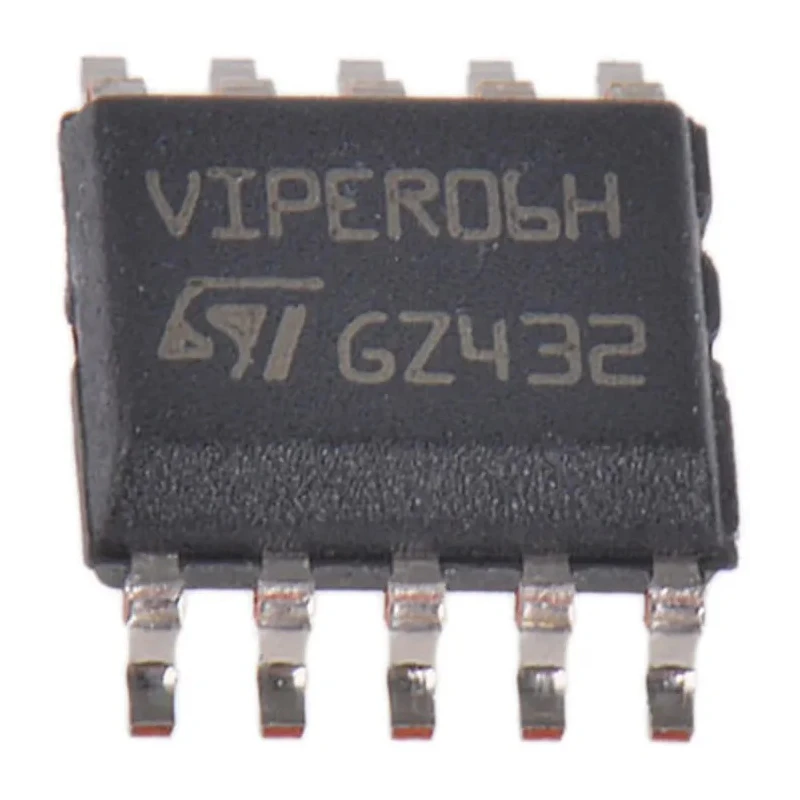

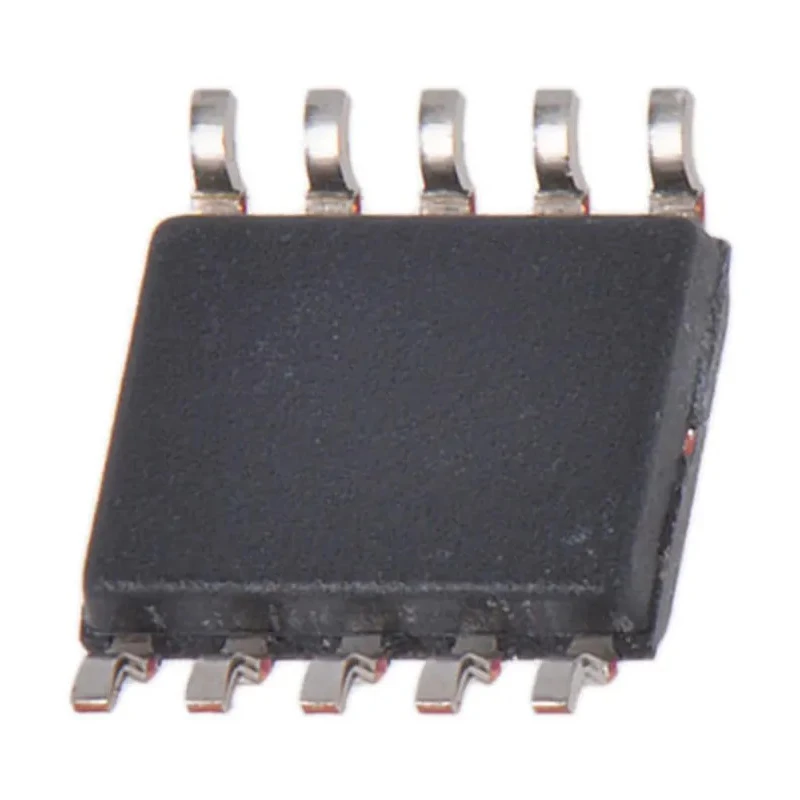

STMicroelectronics AC/DC Converter 380 mA, 800V 10-Pin DIP-7/SSO10 VIPER06XSTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics AC/DC Converter 380 mA, 800V 10-Pin DIP-7/SSO10 VIPER06XSTR

Name: STMicroelectronics AC/DC Converter 380 mA, 800V 10-Pin DIP-7/SSO10 VIPER06XSTR
Brand: STMicroelectronics
SKU: 136612
Price: 0.94 USD
Availability: InStock



Category AC/DC Converter Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.25mm
Length	5mm
Model	VIPER06XSTR
Width	4mm
Output Power	8W
Mount Type	Surface
Maximum Duty Cycle	80%
Series	VIPER06
Topology	Flyback
Maximum Operating Temperature	150°C
Package Type	DIP-7/SSO10
Minimum Operating Temperature	-40°C
Switching Frequency	60MHz
Maximum Input Voltage	23.5V
Maximum Output Current	380mA
Standards/Approvals	RoHS
Maximum Output Voltage	800V
Minimum Input Voltage	11.5V
Pin Count	10
Supply Current	1.45mA
STMicroelectronics AC-DC, PWM Controller 5-Channel 10-Pin, SSOPBrand	STMicroelectronics

Key Features

The converter supports a maximum input voltage of 23.5V and minimum of 11.5V.
It delivers an output power of 8W with a switching frequency of 60MHz for efficient power management.
Flyback topology and surface mount type provide reliability and compact design.
Operating temperature ranges from -40°C to 150°C, suitable for demanding applications.
Package dimensions include length 5mm, width 4mm, and height 1.25mm for easy PCB integration.
The device complies with RoHS standards ensuring environmental safety.
Supply current is low at 1.45 mA, enabling efficient operation.
The maximum duty cycle is 80%, enabling robust control during switching.

Product Description

STMicroelectronics VIPER06XSTR AC/DC Converter is a high-voltage off-line converter combining an 800V avalanche-rugged MOSFET with a leading-edge PWM controller. It supports ultra-wide range mains voltage input, enabling flexible power supply designs.

This 10-pin DIP-7/SSO10 package device delivers 380 mA maximum output current and 8W output power with a switching frequency of 60MHz. It uses flyback topology optimized for efficient power conversion in surface mount applications.

The converter operates reliably in harsh conditions, with minimum operating temperature -40°C and maximum of 150°C. Compact package dimensions of 5mm length, 4mm width, and 1.25mm height simplify integration on printed circuit boards.

Designed to meet the highest energy efficiency regulations, the VIPER06XSTR features extensive protection schemes for scalability and enhanced robustness. It is RoHS compliant ensuring adherence to environmental standards.

This product finds application in industrial and electronic power management systems, enabling safe and efficient AC-DC power conversion in consumer, industrial, and manufacturing environments.

The converter supports input voltages from 11.5V to 23.5V and delivers stable output voltage up to 800V. Its flyback topology and 80% maximum duty cycle enable precise power control. Low supply current of 1.45mA helps reduce overall power consumption.

Compact DIP-7/SSO10 packaging facilitates easy mounting and reliable soldering on PCBs. Wide operating temperature range allows deployment in diverse industrial applications. Compliance with RoHS standards guarantees environmentally safe manufacturing and disposal.

Explore more STMicroelectronics power electronics products and find the ideal components for your design needs in the Electronics & Electricals category at EnvMart.
