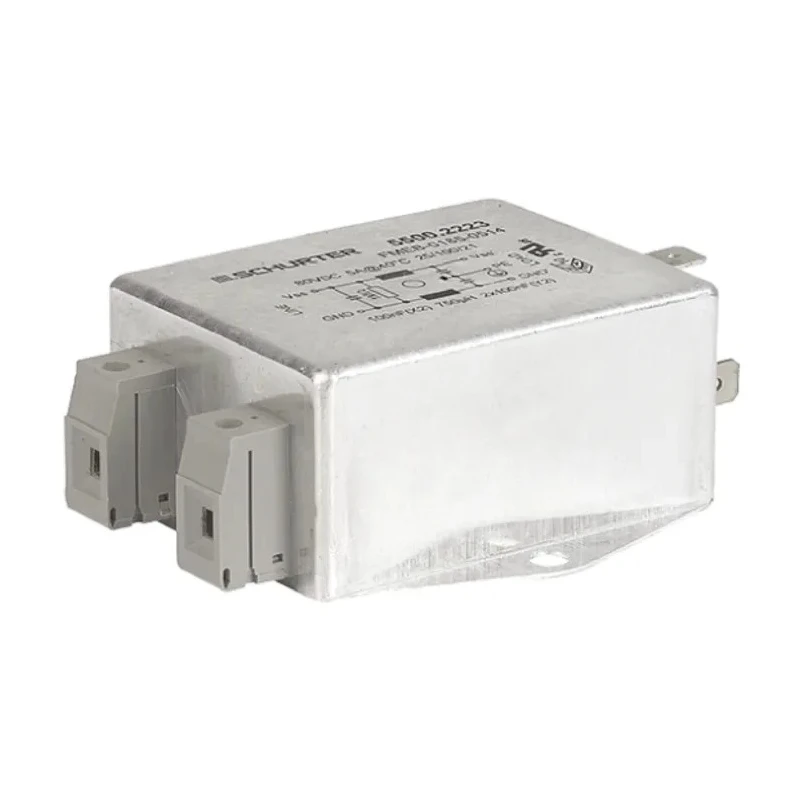

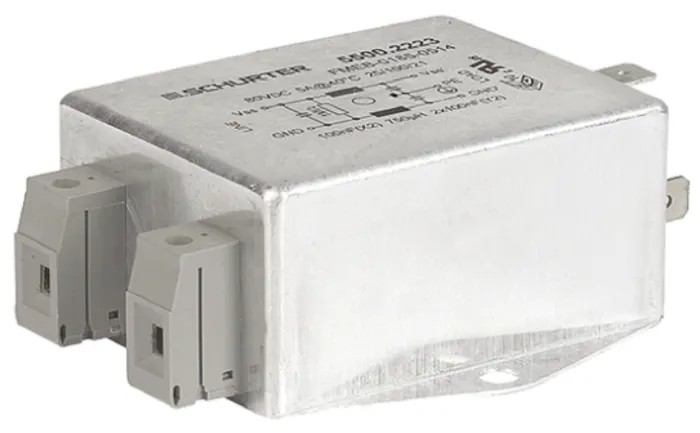

Schurter Chassis Mount EMC Filter 10 A 80V DC Screw Termination Single Phase FMEB 5500.2224
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 32mm |
| Length | 89mm |
| Depth | 71mm |
| Mount Type | Chassis Mount |
| Series | FMEB |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Maximum Voltage | 80V dc |
| Inductance | 2mH |
| Termination Style | Screw |
Key Features
- All purpose single stage filter housed in an aluminum case.
- Effectively reduces symmetrical and asymmetrical interference from 100 kHz to 30 MHz.
- Designed for screw termination ensuring secure and easy installation.
- Operating temperature range from -25°C to 100°C for reliable performance.
- Compact dimensions of 89mm length, 32mm height, and 71mm depth for space-efficient mounting.
- Low resistance of 1 mΩ enhances efficiency and reduces power loss.
- Inductance of 2 mH and capacitance of 100 nF tailored for power line noise filtering.
- Compliant with IEC/EN 60950 equipment standards for safety and reliability.
Product Description
Schurter 5500.2224 is a high-performance chassis mount EMC filter designed specifically for DC applications with a maximum current of 10 A and maximum voltage rating of 80V DC. Featuring a single stage FMEB series filter housed in a robust aluminum case, it effectively suppresses both symmetrical and asymmetrical electromagnetic interference within the 100 kHz to 30 MHz frequency range.
The filter is equipped with screw type termination for secure mounting and connection, optimized for single phase power lines. Its compact dimensions (89 mm length, 32 mm height, 71 mm depth) and low resistance of 1 mΩ allow for efficient integration into electronic and industrial equipment.
Operating reliably across a wide temperature range from -25°C to 100°C, the FMEB 5500.2224 filter complies with IEC/EN 60950 standards, making it suitable for use in power electronics, industrial machinery, and other applications requiring stringent electromagnetic compatibility.
This filter’s electrical characteristics include a capacitance of 100 nF and inductance of 2 mH, ensuring effective noise attenuation and equipment protection. The all-purpose single stage filter design guarantees dependable EMC filtering performance in chassis mount configurations.
All purpose single stage filter housed in an aluminum case. Effective attenuation of symmetrical and asymmetrical interference from 100 kHz to 30 MHz. Screw termination style for secure connection. Single phase, chassis mount design for versatile application.
Temperature range from -25°C to 100°C. Compact size suitable for space-constrained electronics. Low resistance improves efficiency and reduces losses. Conforms to IEC/EN 60950 standards for equipment safety and EMC compliance.
Widely used in industrial, laboratory, and power systems requiring EMI suppression.
Choose Schurter FMEB 5500.2224 EMC Filters for reliable electromagnetic interference protection enhancing equipment longevity and operational stability. Explore more EMC and power line filters on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 10 A.
This model has a maximum voltage rating of 80V DC.
It effectively reduces symmetrical and asymmetrical interference from 100 kHz to 30 MHz.
The filter has compact dimensions of 89 mm in length, 32 mm in height, and 71 mm in depth.
This model features a chassis mount design with screw termination for secure installation.
The operating temperature range is from -25°C to 100°C.
The inductance of this filter is 2 mH.
It has a capacitance of 100 nF, which is tailored for power line noise filtering.
The filter has a low resistance of 1 mΩ, which enhances efficiency and reduces power loss.
Yes, it complies with IEC/EN 60950 equipment standards for safety and reliability.
This filter is widely used in industrial, laboratory, and power systems requiring EMI suppression.
The Schurter FMEB 5500.2224 is a single stage filter.
