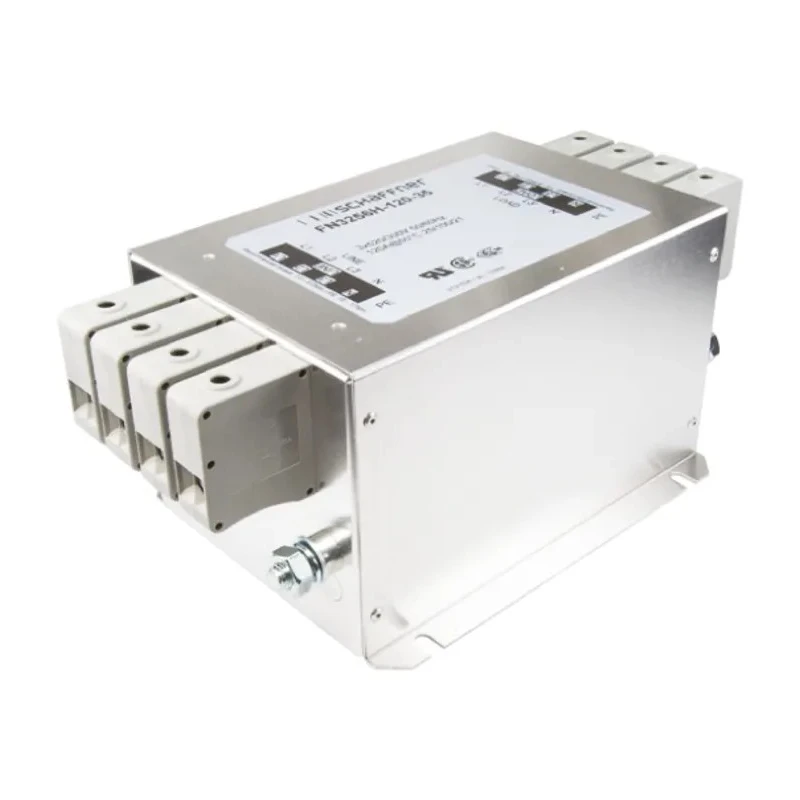

Schaffner Chassis Mount 3 Phase EMI Filter, Terminal Block, 120 A, 520V AC, 60Hz, Model FN3256
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Schaffner |
| Height | 125mm |
| Length | 210mm |
| Model | FN3256 |
| Depth | 170mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3256 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1500kΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 120A |
| Number of Phases | 3 |
| Leakage Current | 1mA |
| Maximum Voltage | 520V ac |
| Termination Style | Terminal Block |
| Power Loss | 25W |
Key Features
- Compact and space-efficient chassis mount design with a durable terminal block.
- Supports a maximum current rating of 120 amperes and voltage up to 520 volts AC.
- Operates reliably at 60 Hz frequency suitable for industrial electrical systems.
- Features low leakage current of 1 mA ensuring efficient power filtering.
- Designed to withstand temperatures from -25°C to 100°C for varied industrial environments.
- Power loss rated at 25 watts for energy-efficient operation.
- Robust resistance at 1500 kΩ for optimal EMI attenuation.
- Constructed in Hungary with high-quality manufacturing standards.
Product Description
Schaffner FN3256 EMI Filter is a chassis mount, 3 phase power line filter designed for applications requiring robust electromagnetic interference suppression in industrial and commercial electrical systems. Rated at 120 amperes maximum current and supporting up to 520 volts AC at 60 Hz frequency, this filter is optimized for compact installation with solid terminal block termination for reliable connections.
The FN3256 series features a single stage filter design with low leakage current of only 1 milliampere, minimizing interference impact on connected equipment. Its wide operating temperature range from -25°C to 100°C ensures endurance across different environmental conditions commonly encountered in manufacturing, motor drives, frequency inverters, and variable speed electrical drive systems.
With dimensions of 210 mm length, 170 mm depth, and 125 mm height, the compact chassis mount configuration saves cabinet space and allows easy installation. The device's power loss is efficiently maintained at 25 watts, and it delivers a stable resistance of 1500 kΩ contributing to effective EMI attenuation. This product is manufactured in Hungary under strict quality controls and does not have specific standards or approvals listed.
Typical industrial applications include automation systems, servo motor drives, power conversion, and other electrical equipment requiring EMI suppression in three phase power lines. Installation is facilitated by solid, touch-safe terminal blocks ensuring worker safety and durability during routine maintenance or upgrades.
Compact and space-efficient chassis mount design with a durable terminal block. Supports a maximum current rating of 120 amperes and voltage up to 520 volts AC. Operates reliably at 60 Hz frequency suitable for industrial electrical systems.
Features low leakage current of 1 mA ensuring efficient power filtering. Designed to withstand temperatures from -25°C to 100°C for varied industrial environments. Power loss rated at 25 watts for energy-efficient operation.
Robust resistance at 1500 kΩ for optimal EMI attenuation. Constructed in Hungary with high-quality manufacturing standards. Explore more Schaffner EMI Filters and power line filter solutions on EnvMart for reliable, efficient power quality management in your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN3256 EMI filter supports a maximum current rating of 120 amperes.
This model can handle voltages up to 520 volts AC.
The FN3256 operates reliably at a frequency of 60 Hz.
It features a low leakage current of only 1 milliampere.
The dimensions of this unit are 210 mm in length, 170 mm in depth, and 125 mm in height.
This model is designed to operate within a temperature range of -25°C to 100°C.
It utilizes a chassis mount design for installation.
This unit features a terminal block termination style for reliable connections.
The power loss for this EMI filter is rated at 25 watts.
It has a robust resistance of 1500 kΩ for optimal EMI attenuation.
Typical applications include automation systems, servo motor drives, and power conversion requiring EMI suppression in three phase power lines.
This EMI filter is constructed in Hungary under high-quality manufacturing standards.
