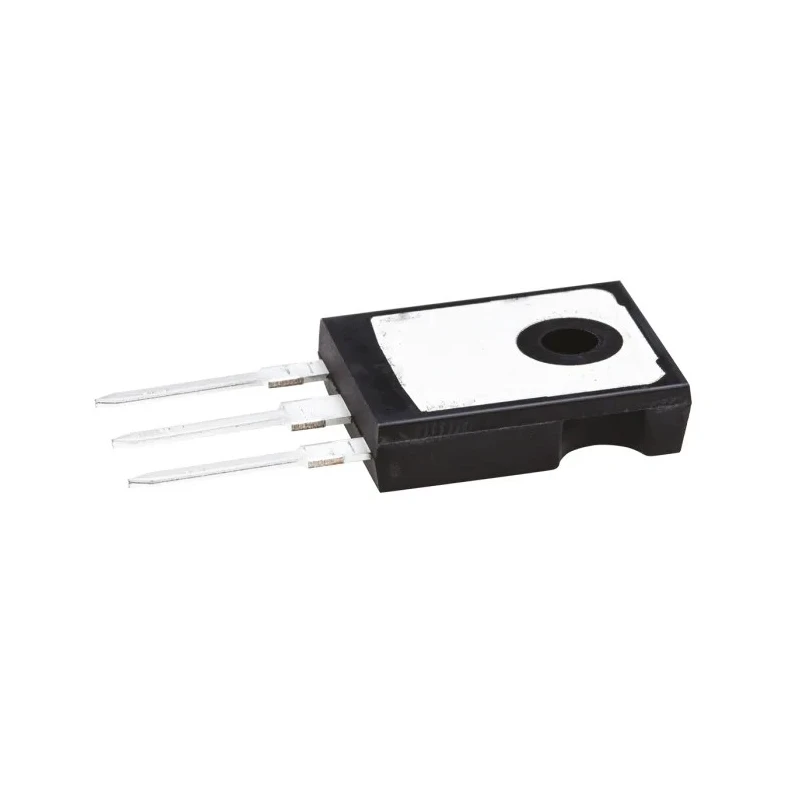

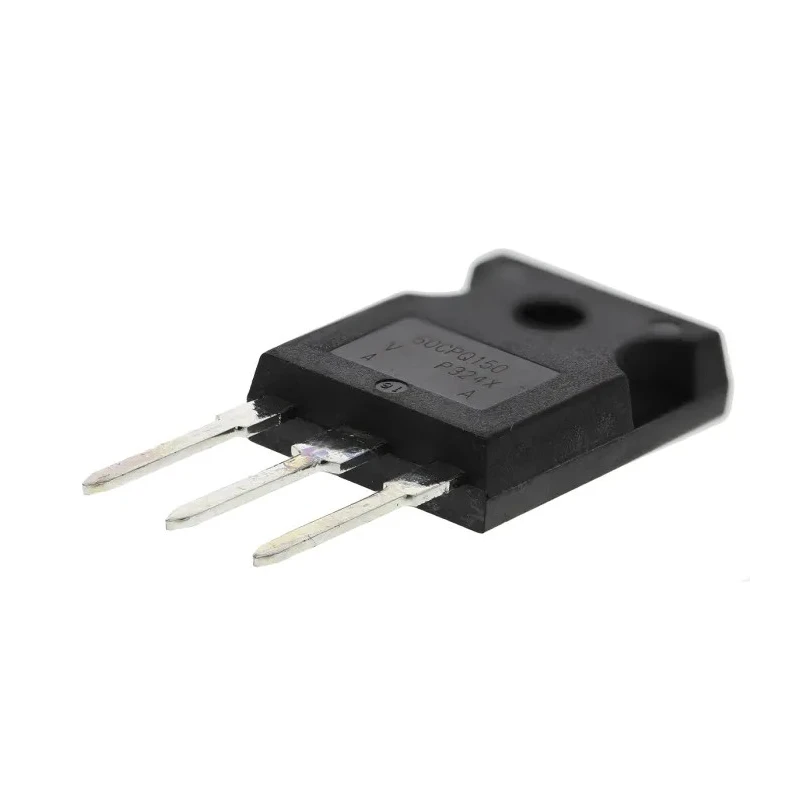

Vishay High-Performance 150 V 30 A Schottky Diode, 3-Pin TO-247AC Package VS-60CPQ150-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-60CPQ150-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.3kA |
| Maximum Forward Voltage Vf | 670mV |
Key Features
- High-performance Schottky diode suitable for fast switching.
- 3-pin TO-247AC mounting for secure through-hole installation.
- Maximum forward current of 30 amperes ensuring robust performance.
- Peak reverse voltage rating of 150 volts for reliability.
- Low forward voltage drop of 670 millivolts reduces power losses.
- Peak non-repetitive forward surge current of 2.3 kiloamperes.
- Operational temperature range from -55°C to +175°C for demanding environments.
- Common cathode diode configuration compatible with various circuits.
Product Description
Vishay VS-60CPQ150-N3 is a high-performance Schottky diode designed for applications requiring fast switching, low forward voltage drop, and reliable high current handling. This diode is housed in a 3-pin TO-247AC through-hole package making it suitable for mounting on printed circuit boards where space and robust mounting are important.
It features a maximum continuous forward current rating of 30 A and a peak reverse repetitive voltage of 150 V, catering to power electronics circuits such as power supplies, converters, and motor drives. The diode's low forward voltage of 670 mV ensures efficiency by minimizing power dissipation during conduction.
The device supports a peak non-repetitive forward surge current of 2.3 kA, providing resilience against transient overloads. It operates effectively within a broad temperature range from -55°C to 175°C, enabling use in industrial, automotive, and harsh environment applications.
The common cathode configuration and 3-pin arrangement facilitate compatibility with various circuit designs. The diode’s compact physical dimensions (length 15.87 mm, width 5.31 mm, height and diameter 20.7 mm) allow for integration into tight layouts without compromising thermal management.
This Vishay Schottky diode is ideal for industrial automation, power conversion, telecommunications equipment, and other commercial electronics requiring efficient and reliable rectification or protection components.
High-performance Schottky diode with fast switching capability. Robust 3-pin TO-247AC package for secure mounting. Maximum continuous forward current: 30 A. Peak reverse voltage rating: 150 V. Low forward voltage drop of 670 mV for enhanced efficiency.
Surge current capability of 2.3 kA peak non-repetitive forward surge. Wide operating temperature range from -55°C to 175°C. Common cathode diode configuration. Compact size with detailed dimensional specifications. Suitable for power electronics, rectification, and protection in industrial and electronic applications.
Explore more quality Schottky diodes and rectifiers from Vishay and browse our Electronics & Electricals catalog for diverse semiconductor components to support your industrial and commercial projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 30 amperes.
This diode has a peak reverse repetitive voltage rating of 150 volts.
The forward voltage drop for this Schottky diode is 670 millivolts.
It supports a peak non-repetitive forward surge current of 2.3 kiloamperes.
This diode operates effectively within a temperature range from -55°C to 175°C.
It uses a through-hole mounting type, housed in a 3-pin TO-247AC package.
The diode features a common cathode configuration, allowing compatibility with various circuit designs.
The dimensions are as follows: length 15.87 mm, width 5.31 mm, and height 20.7 mm.
The peak reverse current is specified as 100 microamperes.
This diode is suitable for applications such as power supplies, converters, and motor drives.
This model belongs to the VSX series of Schottky diodes.
The country of origin for this diode is India.
