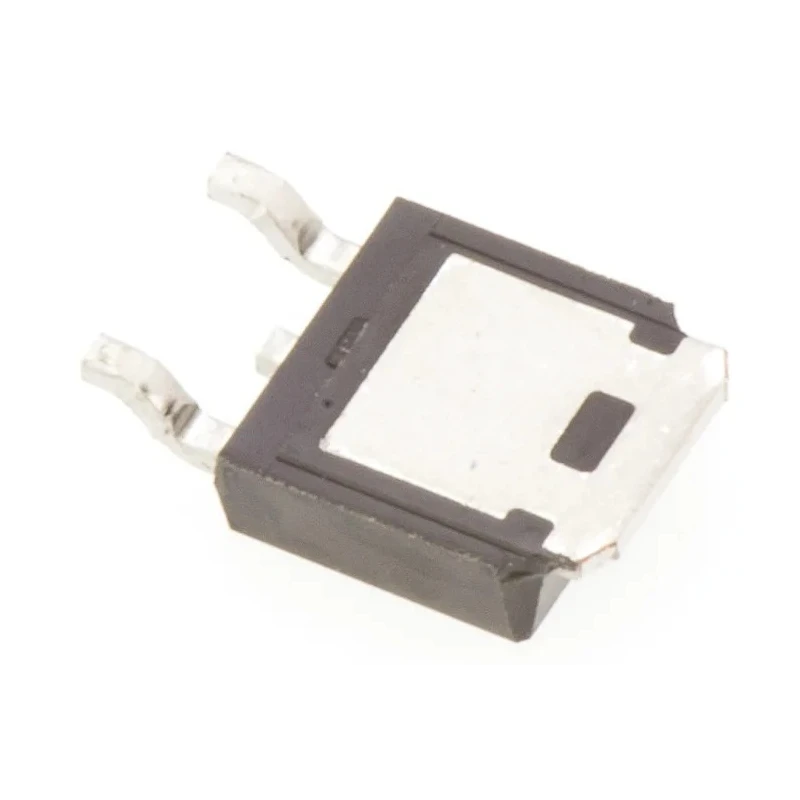

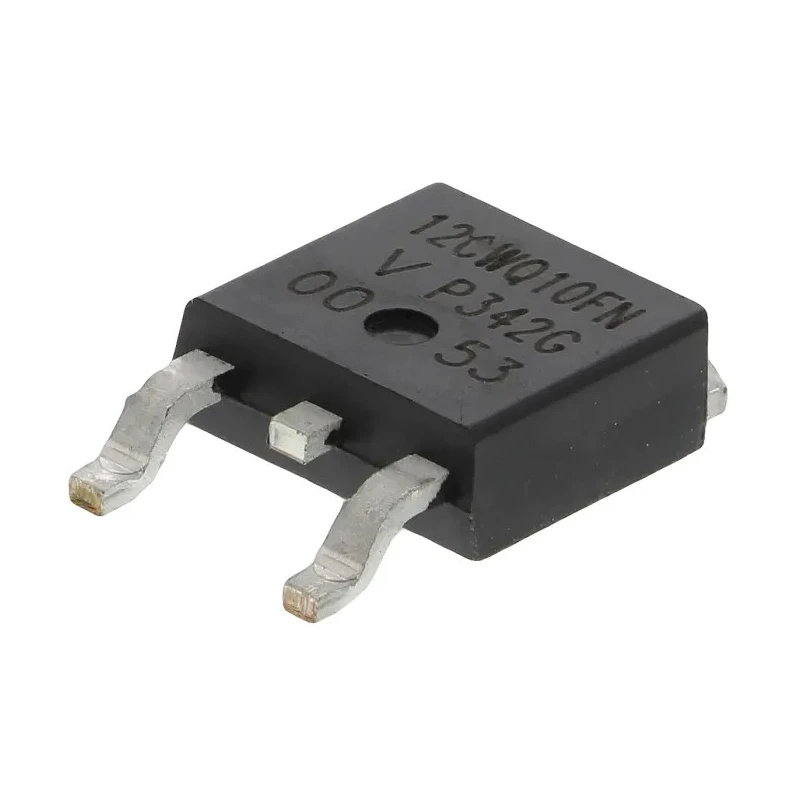

Vishay High-Performance 100 V 12 A Schottky Diode 3-Pin DPAK VS-12CWQ10FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.73mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ10FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VS-12CWQ10FN |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 650mV |
| Vishay 100V 12A, Dual Schottky Diode, 3-Pin DPAK VS-12CWQ10FNPBFBrand | Vishay |
| Vishay 100V 6A, Dual Schottky Diode, 3-Pin D-PAK 12CWQ10FNBrand | Vishay |
Key Features
- The diode features a TO-252 (DPAK) package with 3 pins for easy surface mounting.
- Maximum continuous forward current rating is 12 amperes ensuring robust performance.
- Peak reverse repetitive voltage is 100 volts, suitable for low voltage rectification.
- Forward voltage drop is low at 650 millivolts to minimize power losses.
- Operates efficiently between -55°C and 150°C ambient temperatures.
- Peak non-repetitive forward surge current rating is 330 amperes for transient tolerance.
- Physical dimensions include length 6.73 mm, width 6.22 mm, and height 2.39 mm.
- The diode has a common cathode configuration and is a single Schottky rectifier type.
Product Description
Vishay VS-12CWQ10FN-M3 is a high-performance Schottky Diode designed for quick switching and low voltage drop applications. Rated at 100 V peak reverse voltage and 12 A continuous forward current, this surface-mount diode in a 3-pin DPAK (TO-252) package is ideal for power conversion, rectification, and switching in electronic circuits.
The device offers a low forward voltage of 650 mV, significantly reducing power loss and improving efficiency in high-frequency switching environments. Its peak non-repetitive forward surge current capacity of 330 A ensures durability against transient conditions.
With operating temperature capabilities from -55°C to 150°C, the diode is suitable for harsh industrial and commercial environments. The common cathode configuration supports various circuit designs requiring Schottky rectifiers.
The compact dimensions (6.73 mm length, 6.22 mm width, 2.39 mm height) facilitate efficient PCB layout and heat dissipation. This diode does not carry automotive certification but is a reliable component for general electronics and power management systems in laboratory, industrial manufacturing, HVAC, and other commercial applications.
The diode package type is TO-252 (DPAK) with 3-pin configuration. Maximum peak reverse repetitive voltage is 100 V. Maximum continuous forward current is 12 A. Forward voltage drop is 650 mV. Peak non-repetitive forward surge current is 330 A.
Operating temperature ranges from -55°C to 150°C. Dimensions are 6.73 mm length, 6.22 mm width, and 2.39 mm height. Pin count is 3 with a common cathode diode configuration. The product is designed for surface mounting on PCBs for power semiconductor applications.
Explore more quality Vishay semiconductor products at EnvMart for robust industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 12 amperes.
The peak reverse repetitive voltage is 100 volts.
The forward voltage drop is low at 650 millivolts.
It operates efficiently between -55°C and 150°C ambient temperatures.
This diode comes in a TO-252 (DPAK) package with 3 pins for surface mounting.
The peak non-repetitive forward surge current rating is 330 amperes.
The physical dimensions are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
It has a common cathode configuration.
This model is suitable for power conversion, rectification, and switching in electronic circuits.
The peak reverse current is 1 milliampere.
This diode is designed for surface mounting on PCBs.
This diode belongs to the VS-12CWQ10 series.
