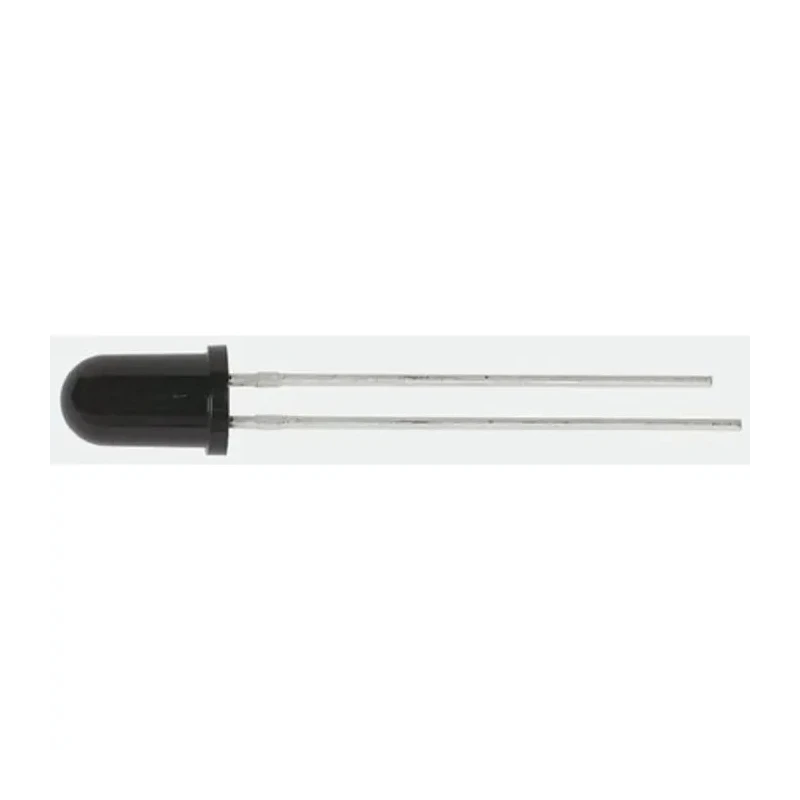

Vishay 60 ° Infrared Phototransistor, Through Hole 2-Pin T-1 Package TEFT4300

Free Delivery in India | Lowest Global Shipping Charges

Vishay 60 ° Infrared Phototransistor, Through Hole 2-Pin T-1 Package TEFT4300

Name: Vishay 60 ° Infrared Phototransistor, Through Hole 2-Pin T-1 Package TEFT4300
Brand: Vishay
SKU: 217504
Price: 0.39 USD
Availability: InStock



Category Phototransistor Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	3mm
Brand	Vishay
Operating Temperature	-40 to +100 °C
Height	4.5mm
Length	3.2mm
Model	TEFT4300
Packaging	Bulk
Width	3.9mm
Mount Type	Through Hole
Series	TEFT4300
Maximum Operating Temperature	100°C
Package Type	T-1
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Number of Pins	2
Typical Rise Time	2μs
Typical Fall Time	2.3μs
Peak Wavelength	925nm
Spectrums Detected	Infrared
Angle of half intensity	30°
Angle of Half Sensitivity	60 °
Collector Current	50mA
Maximum Light Current	3200μA
Maximum Dark Current	200nA
Collector Emitter Voltage	70V
Emitter Collector Voltage	5V

Key Features

The 3mm black plastic package includes a daylight blocking filter to minimize ambient light interference.
Provides high radiant sensitivity and fast response times suitable for optical switches and encoders.
Operates reliably within a temperature range of -40 °C to +100 °C.
Features a maximum collector current of 50 mA and maximum collector-emitter voltage of 70 V.
Commonly used in optical counters, position sensors, and interrupters in industrial and electronic applications.

Product Description

Vishay TEFT4300 is a silicon NPN infrared phototransistor housed in a 3mm (T-1) through-hole package with a daylight filter that blocks visible light to enhance infrared detection precision.

This 2-pin phototransistor offers a wide viewing angle of 60 ° and supports fast switching with typical rise and fall times of 2 μs and 2.3 μs respectively, enabling accurate optical sensing in diverse environments.

The device operates efficiently over an extended temperature range from -40 °C to +100 °C, ensuring robustness for industrial, laboratory, and manufacturing uses. Its electrical limits include a collector current of up to 50 mA and collector-emitter voltage up to 70 V, supporting reliable performance in optoelectronic circuits.

Typical applications include optical switches, counters, sorters, encoders, and position sensing in automated machinery and instrumentation systems. The black plastic T-1 package blocks ambient visible light using a daylight filtering technology.

High radiant sensitivity enhances its detection capabilities in infrared light spectrums. Compact size: diameter 3 mm, height 4.5 mm, width 3.9 mm, length 3.2 mm. Bipolar NPN transistor in through-hole format facilitates easy PCB integration.

Explore Vishay Phototransistors and related optoelectronic components at EnvMart for use in electronics design, industrial automation, and sensor applications.
