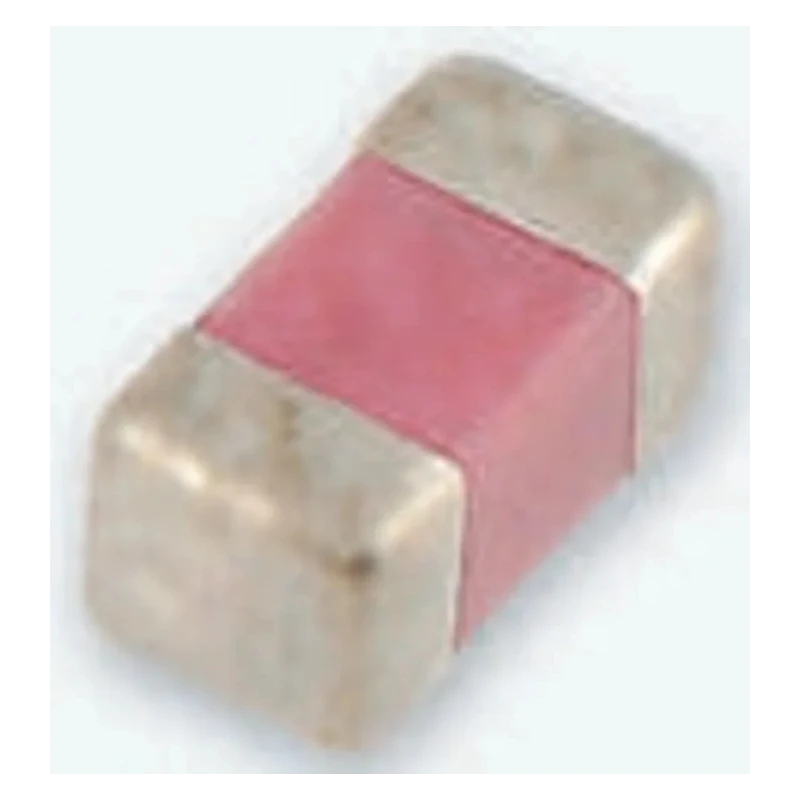

Yageo 220 pF Multilayer Ceramic Capacitor 50V DC ±10 % Tolerance Surface Mount 0603 X7R 223858615614
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V dc |
| Brand | Yageo |
| Height | 0.8mm |
| Length | 1.6mm |
| Packaging | 7 in Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | Standard |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 220pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | X7R |
| Suppression Class | Class II |
Key Features
- Compact 0603 package suitable for surface mount technology.
- Capacitance value of 220 pF ideal for general purpose circuit use.
- Tolerance of ±10% ensuring consistent performance.
- Operating temperature range from -55°C to 125°C.
- X7R dielectric type provides stable characteristics under temperature variations.
- Stacked construction with nickel barrier end termination.
- Supplied in a 7 inch reel for automated assembly.
- Meets IEC 60384-1, IEC 60384-21/22, and RoHS standards.
Product Description
Yageo 223858615614 is a high-quality 220 pF multilayer ceramic capacitor designed for surface mount applications in electronics. This 0603 case size capacitor features a stacked construction with X7R dielectric, providing a stable capacitance value over a wide temperature range from -55°C to 125°C.
Rated at 50 volts DC with a tolerance of ±10%, this capacitor offers reliable operation for general-purpose electronic circuits. The nickel barrier end termination ensures effective surface mount soldering and mechanical durability. It is supplied on a 7 inch reel suitable for automated PCB assembly processes.
The capacitor complies with IEC 60384-1 and IEC 60384-21/22 standards, as well as RoHS directives, guaranteeing environmental compliance and quality assurance. Its Class II suppression capability makes it suitable for noise suppression and filtering in many electronic devices.
Common applications include power supply filtering, signal conditioning, and coupling/decoupling in consumer electronics, industrial machinery, automotive electronics (non-automotive certified), and communication equipment.
The compact 1.6 mm length by 0.8 mm width and height dimensions make it ideal for dense PCB layouts requiring small size components with dependable electrical parameters. Compact 0603 package suitable for surface mount technology.
Capacitance value of 220 pF ideal for general purpose circuit use. Rated voltage of 50 volts DC for reliable operation. Tolerance of ±10% ensuring consistent performance. Operating temperature range from -55°C to 125°C. X7R dielectric type provides stable characteristics under temperature variations.
Stacked construction with nickel barrier end termination. Supplied in a 7 inch reel for automated assembly. Meets IEC 60384-1, IEC 60384-21/22, and RoHS standards. Class II suppression classification suitable for various electronic filtering applications.
Explore EnvMart's extensive electronics components catalog for more high-quality multilayer ceramic capacitors and other passive components for your electronic design and manufacturing needs.
Explore more products in our MLCCs - Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 220 pF, making it suitable for general-purpose circuit use.
It is rated for 50 volts DC, ensuring reliable operation in electronic circuits.
The capacitor has a length of 1.6 mm, a width of 0.8 mm, and a height of 0.8 mm, making it compact for dense PCB layouts.
The operating temperature range is from -55°C to 125°C, which allows for stable performance in various environments.
It utilizes an X7R dielectric type, which provides stable characteristics under temperature variations.
It is supplied in a 7 inch reel, making it suitable for automated PCB assembly processes.
This model features a surface mount termination type, allowing for effective soldering on PCBs.
The capacitor has a tolerance of ±10%, ensuring consistent performance across applications.
It has a stacked construction, which contributes to its compact size and performance.
It meets IEC 60384-1, IEC 60384-21/22 standards, and is RoHS compliant, ensuring environmental compliance and quality assurance.
Common applications include power supply filtering, signal conditioning, and coupling/decoupling in consumer electronics and industrial machinery.
The country of origin for this capacitor is India.
