Vishay Bridge Rectifier 600 V 60 A 4-Pin Single 2W06G-E4/51

Free Delivery in India | Lowest Global Shipping Charges

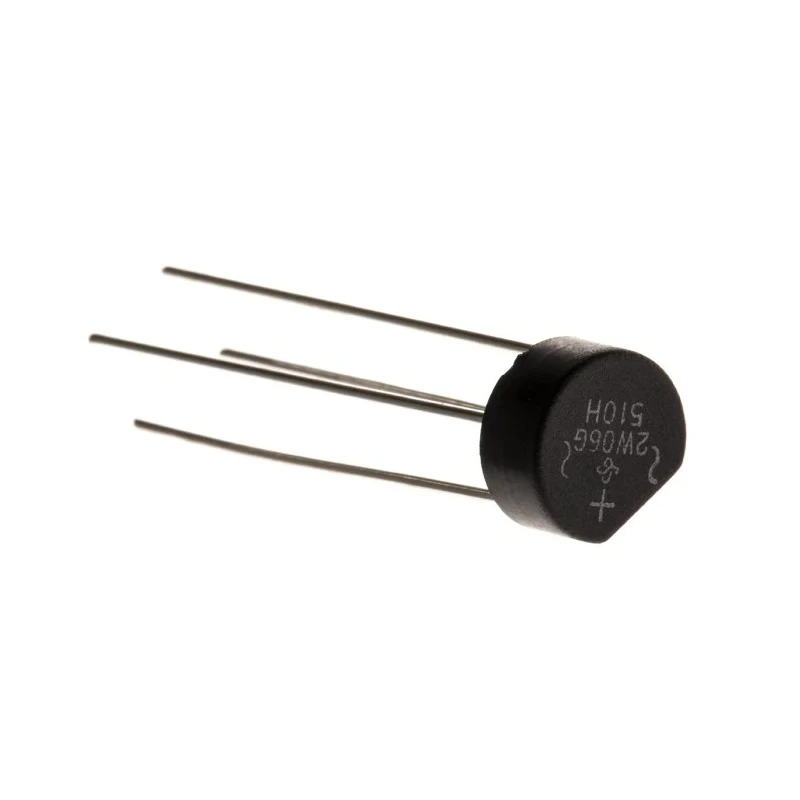

Vishay Bridge Rectifier 600 V 60 A 4-Pin Single 2W06G-E4/51

Name: Vishay Bridge Rectifier 600 V 60 A 4-Pin Single 2W06G-E4/51
Brand: Vishay
SKU: 217494
Price: 0.56 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	9.86mm
Brand	Vishay
Height	5.6mm
Length	9.86mm
Model	2W06G-E4/51
Width	8.84mm
Mount Type	Through Hole
Series	2W0
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	WOG
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Forward Current If	2A
Peak Forward Voltage Vf	1.1V

Key Features

Provides a peak reverse repetitive voltage of 600 V.
Supports a forward current rating of 2 A for continuous operation.
Compact package designed for through hole mounting on PCBs.
Operating temperature ranges from -55°C up to 150°C ensuring wide temperature tolerance.
Peak non-repetitive forward surge current capability of 60 A.
Features a low forward voltage drop of 1.1 V for efficient conduction.
Employs a 4-pin single configuration for reliable power conversion.
Constructed with high dielectric strength case and wire lead structure.

Product Description

Vishay 2W06G-E4/51 Bridge Rectifier 600 V 60 A 4-Pin Single is a high-performance semiconductor device engineered for converting alternating current (AC) into direct current (DC) through full-wave rectification. It is ideal for applications requiring reliable DC power supply from AC sources. The bridge rectifier's diode arrangement ensures consistent output polarity regardless of AC input polarity.

Designed with a wire lead structure and WOG package, this device supports through-hole PCB mounting and offers superior mechanical and thermal performance in a compact form factor measuring 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height. Operating temperature ranges from -55°C to 150°C allow stable functionality in challenging environments.

The device supports a maximum forward current (If) of 2 A and can handle peak non-repetitive surge currents (Ifsm) up to 60 A, making it suitable for transient load conditions. Its peak forward voltage is a low 1.1 V, optimizing efficiency in power conversion applications. Reverse repetitive peak voltage rating of 600 V ensures robustness against voltage spikes.

This bridge rectifier is part of Vishay’s 2WxxG series and features a 4-pin single configuration optimized for industrial, laboratory, HVAC, manufacturing, and power electronics use cases where efficient AC to DC conversion is critical.

Provides a peak reverse repetitive voltage of 600 V. Supports a forward current rating of 2 A for continuous operation. Compact package designed for through hole mounting on PCBs. Operating temperature ranges from -55°C up to 150°C ensuring wide temperature tolerance.

Peak non-repetitive forward surge current capability of 60 A. Features a low forward voltage drop of 1.1 V for efficient conduction. Employs a 4-pin single configuration for reliable power conversion. Constructed with high dielectric strength case and wire lead structure.

Dimensions: length 9.86 mm, width 8.84 mm, height 5.6 mm. Manufactured in China adhering to stringent quality standards. Search our EnvMart collection for Vishay Bridge Rectifiers to find matching power components and accessories for your electronic and electrical engineering projects.
