DiodesZetex 60 V 1 A Schottky Diode 2-Pin PowerDI123 Package DFLS160-7

Free Delivery in India | Lowest Global Shipping Charges

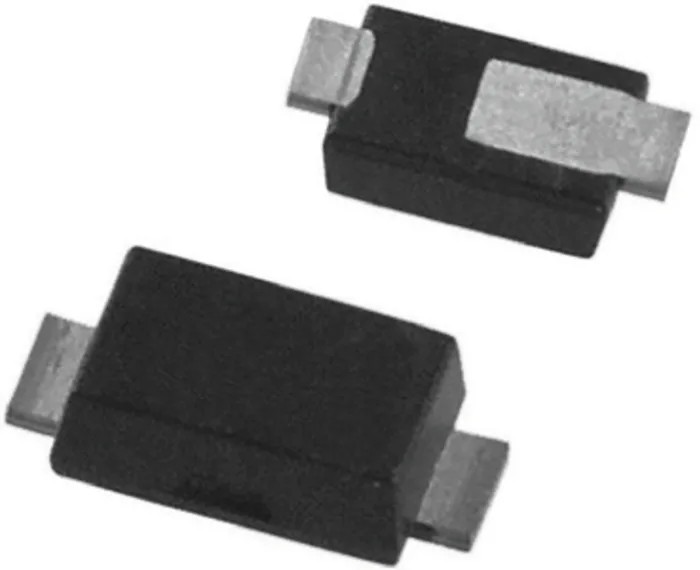

DiodesZetex 60 V 1 A Schottky Diode 2-Pin PowerDI123 Package DFLS160-7

Name: DiodesZetex 60 V 1 A Schottky Diode 2-Pin PowerDI123 Package DFLS160-7
Brand: DiodesZetex
SKU: 217455
Price: 0.21 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1mm
Length	3mm
Model	DFLS160-7
Width	1.93mm
Mount Type	Surface
Series	DFLS160-7
Maximum Operating Temperature	150°C
Package Type	PowerDI123
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	500mV

Key Features

This diode uses a PowerDI123 package for surface mounting.
It has a maximum forward voltage of 500 mV, ensuring efficient operation.
The device operates from a minimum temperature of -65°C up to 150°C maximum.
It supports peak non-repetitive forward surge current up to 50 A for robustness.
The diode is designed for automotive applications meeting AEC-Q101 standards.
The compact dimensions of 3 mm length, 1.93 mm width, and 1 mm height support space-efficient circuit design.
The Schottky diode's low forward voltage drop provides energy saving in power conversion.
Typical peak reverse current is 100 μA, suitable for precision rectifier applications.

Product Description

DiodesZetex DFLS160-7 is a high-performance Schottky diode designed for surface mount applications in a PowerDI123 package. It offers a peak reverse repetitive voltage of 60 V and a maximum continuous forward current of 1 A, making it ideal for power rectification in industrial, automotive, and electronic circuits.

The diode features a low forward voltage of 500 mV, which reduces power loss and increases efficiency in voltage-sensitive applications. Its robust thermal capabilities allow operation from -65°C to 150°C, suitable for harsh environments. The device can handle peak surge currents up to 50 A, providing durable performance during transient events.

With compact dimensions (3 mm length, 1.93 mm width, 1 mm height), the DFLS160-7 supports space-saving designs on printed circuit boards. It complies with automotive standard AEC-Q101, ensuring quality and reliability for automotive systems and other demanding applications.

This diode uses a PowerDI123 surface mount package for easy PCB assembly. Maximum continuous forward current is 1 A with low forward voltage drop. Peak reverse voltage of 60 V provides protection against voltage spikes. Wide operating temperature range from -65°C to 150°C for diverse environments.

Peak surge current rating of 50 A enhances transient load tolerance. Compact size enables dense circuit layouts. Low peak reverse current (100 μA) ensures minimal leakage during operation. Manufactured in China, ensuring compliance with high-quality standards.

This Schottky diode is suitable for use in industrial electronics, automotive equipment, power supply rectification, and general-purpose electronic devices. Its PowerDI123 package and reliable electrical characteristics make it valuable for modern electronics requiring efficient diode performance.

Explore more semiconductor components and Schottky diodes with DiodesZetex and other premium brands on EnvMart for your electronic design and manufacturing needs.

Explore more products in our Schottky Diodes & Rectifiers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current of this model is 1 A.

The peak reverse repetitive voltage rating for the DFLS160-7 is 60 V.

This diode has a maximum forward voltage drop of 500 mV.

The dimensions of this model are 3 mm in length, 1.93 mm in width, and 1 mm in height.

It operates within a temperature range of -65°C to 150°C.

The DFLS160-7 can handle a peak non-repetitive forward surge current of up to 50 A.

The typical peak reverse current for this model is 100 μA.

Yes, it is designed for automotive applications and meets AEC-Q101 standards.

This diode uses a PowerDI123 package for surface mounting.

The DFLS160-7 has a pin count of 2.

The DFLS160-7 is a Schottky rectifier type diode.

Key features include a low forward voltage drop of 500 mV, a peak reverse voltage of 60 V, and a wide operating temperature range from -65°C to 150°C.
