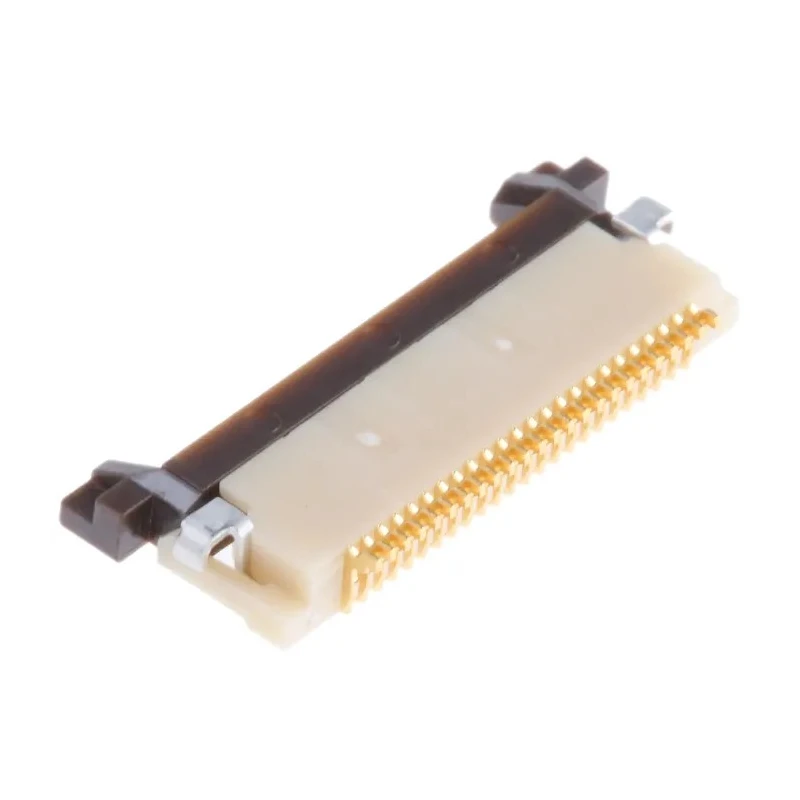

Hirose FH12 0.5 mm Pitch 24 Way Right Angle Female FPC Connector, Solder FH12

Hirose FH12 0.5 mm Pitch 24 Way Right Angle Female FPC Connector, Solder is a high-quality PCB connector from the FH12 series featuring a 0.5 mm pitch and a top contact position. This connector employs a one-touch rotating Zero Insertion Force (ZIF) actuator that ensures easy and damage-free connection with a tactile click signaling secure mating.

The connector uses phosphor bronze contacts plated with gold for optimal electrical performance and corrosion resistance. It is designed for surface mount technology with a right-angle orientation that saves PCB space and accommodates compact layouts. The polyamide housing provides robust insulation and durability suitable for various industrial and commercial environments.

With 24 contact positions arranged in a single row, this connector supports current up to 500 mA and voltage of 50V AC, suitable for low power electronic signal transmission. The operating temperature range of -40°C to 70°C makes it reliable for diverse applications.

This connector is ideal for use in mobile phones, GPS units, notebook computers, data terminals, LCD TVs, digital and video cameras, and other small handheld electronic devices that require compact and dependable display connections.

24 contact positions with gold-plated phosphor bronze contacts for reliable conductivity. Zero Insertion Force (ZIF) one-touch rotating actuator for easy and damage-free connector operation. Right-angle female connector with surface mount termination and top contact layout.

Durable polyamide housing ensuring excellent insulation and mechanical strength. Rated for 50V AC and 500mA current with operating temperature from -40°C to 70°C. Compact design enables high density PCB mounting and space saving.

Suitable for consumer electronics and other small handheld devices requiring FPC interface.

This Hirose FH12 series FPC Connector exemplifies engineering excellence for electronics manufacturing, providing robustness and ease of assembly. It supports high-density mounting with a space-saving design and is widely used in industrial, consumer electronics, telecommunications, and computing device assembly.
