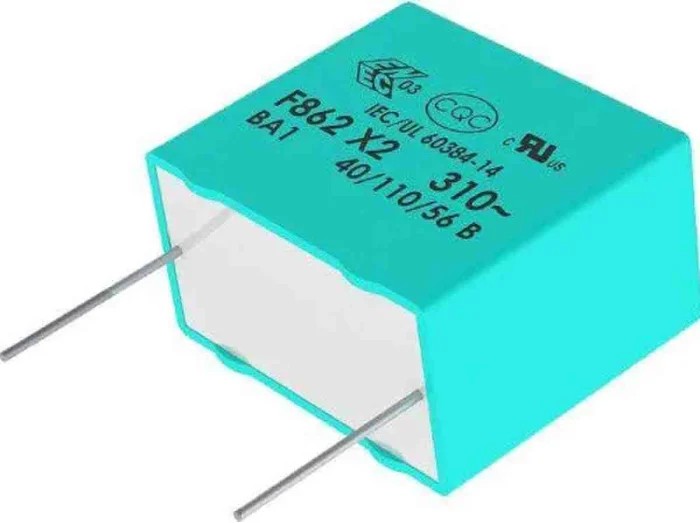

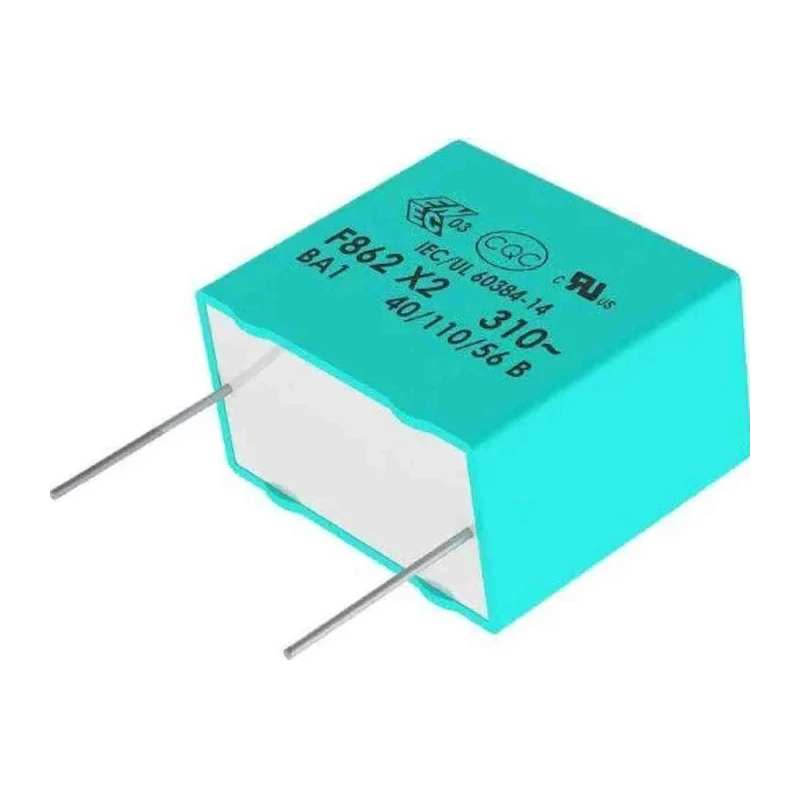

KEMET Film Capacitor X2, 10%, 680 nF, 630V DC, 310V AC, Through Hole, F862DP684K310ZV054

The KEMET F862DP684K310ZV054 is a high-performance X2 class film capacitor designed specifically for EMI suppression and electronic filtering in AC and DC power lines. With a capacitance of 680 nF and a tolerance of 10%, it ensures dependable filtering and noise suppression in a wide range of electrical and electronic circuits.

This capacitor is made from polypropylene film and is encapsulated in a molded plastic case filled with self-extinguishing resin, offering both safety and long operational life. It is rated for up to 630V DC and 310V AC, allowing use in circuits where both high voltage endurance and reliability are essential. The X2 class suppression makes it suitable for direct connection across the mains, providing critical protection against electrical noise and surges.

Mounting is achieved via through-hole leads, with a lead pitch of 22.5 mm and a 4 mm lead length, ensuring secure mechanical and electrical attachment to PCBs. Its compact design, measuring 26 mm in length, 20 mm in height, and 11 mm in width, allows it to be used efficiently within dense circuit boards or limited spaces, while still maintaining electrical performance.

Designed for superior durability, this component operates within an extensive temperature range from -40°C to +110°C, making it ideal for challenging automotive, industrial, and commercial applications. The KEMET F862DP684K310ZV054 conforms to the AEC-Q200 automotive standard, further supporting its application in critical automotive electronic modules. Safety approvals including UL, ENEC, cUL, and CQC underline its suitability for global markets and stringent regulatory environments.

Low dissipation factor (0.2%) and robust EMI suppression performance ensure efficient and stable filtering. The X2 class construction is tailored for use in capacitive power supplies, energy meters, and applications where devices are connected in series with mains voltage. Its two-pin configuration and high suppression class ensure safe, EMI-compliant power management for sensitive electronics.

The KEMET F862DP684K310ZV054 Film Capacitor is an essential component for OEMs and engineers seeking reliable, safety-rated EMI filtering and surge protection in appliance control boards, motor drives, lighting ballasts, and energy metering. Explore more KEMET Film Capacitor solutions and robust EMI suppression products in the EnvMart electronics components catalog.
