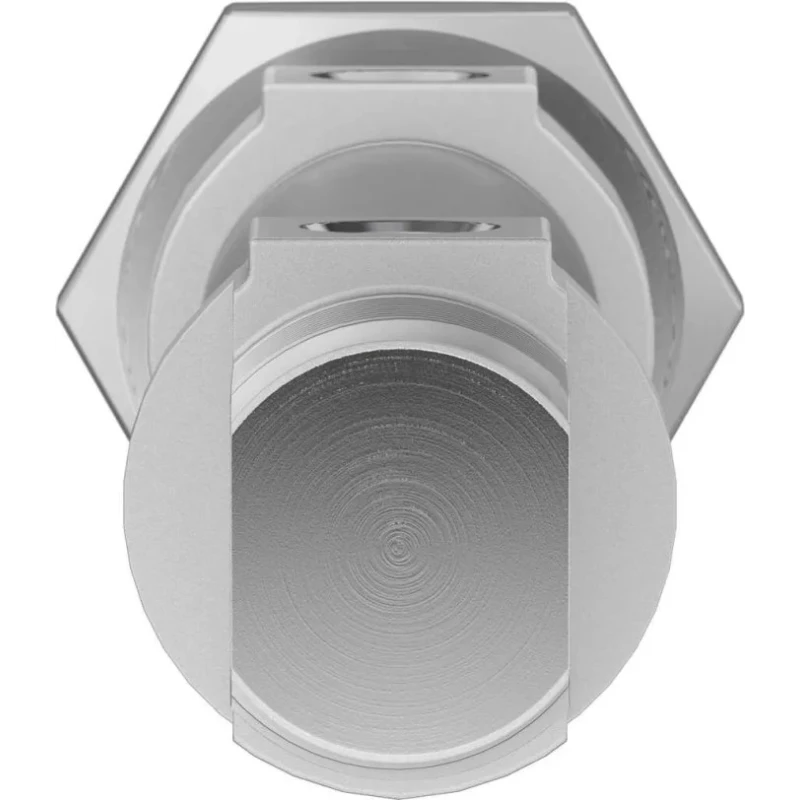

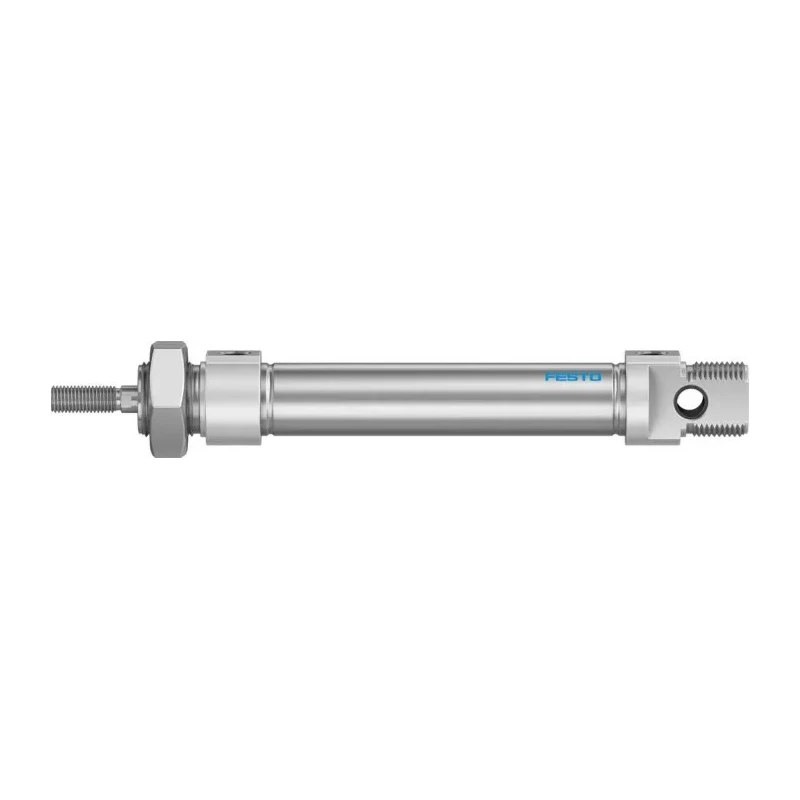

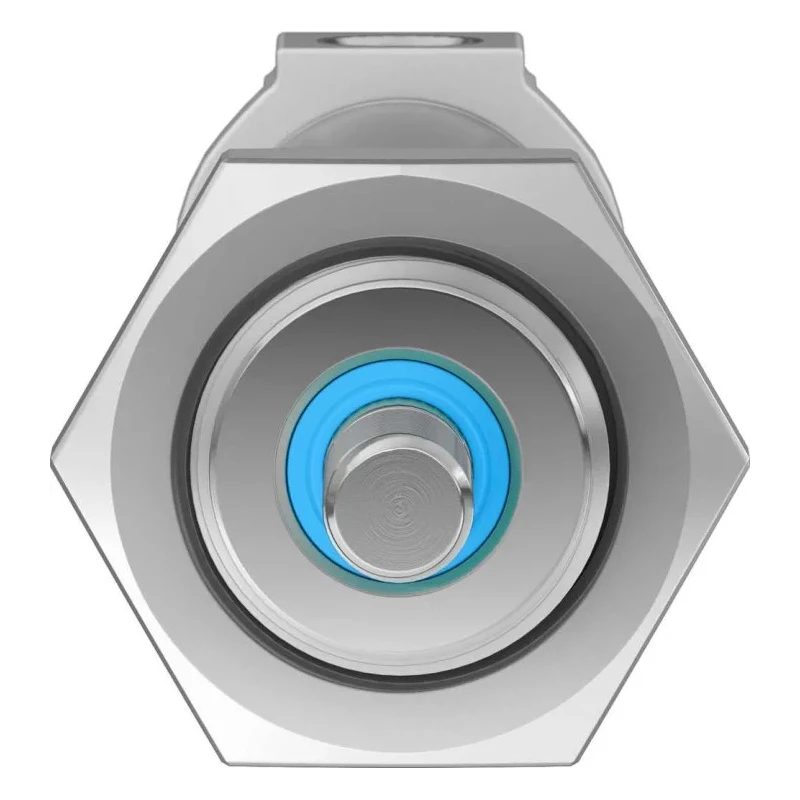

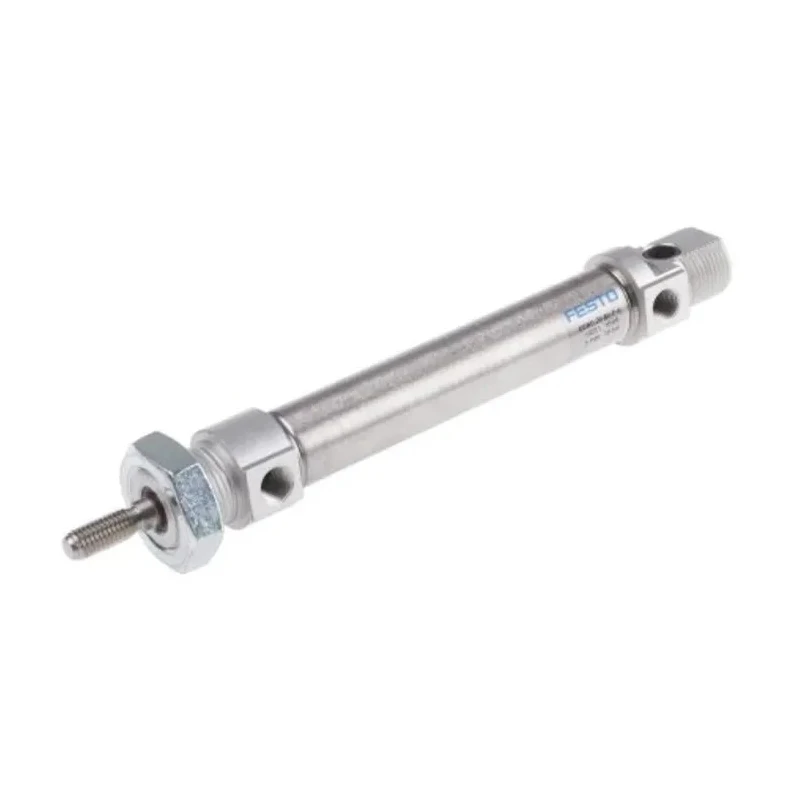

Festo 20 mm Bore 70 mm Stroke Aluminium Body Double Acting Pneumatic Cylinder DSNU-20-70-P-A

Festo DSNU-20-70-P-A pneumatic cylinder is a double acting actuator with a 20 mm bore and 70 mm stroke length, constructed with a robust aluminium body for strength and durability. It operates within a maximum temperature of 80°C and is designed according to ISO 6432 standards, enabling standardized metric mounting dimensions for compatibility and interchangeability.

The cylinder’s design incorporates a single piston rod of male configuration with an M8 thread (1/8 inch G) connection, offering a secure attachment point for tooling or fixtures. Flexible elastomer cushioning rings integrated at both ends of the actuator provide smooth deceleration and extended service life, absorbing energy in low speed and small load applications.

This actuator allows assembly in any orientation, enhanced by optional mounting accessories such as swivel brackets or foot mounts, making it adaptable for a wide variety of industrial automation requirements. Both the piston rod and the cylinder barrel are crafted from high alloy steel with corrosion-resistant properties, ensuring long-lasting performance in demanding environments.

The DSNU series pneumatic cylinders feature dual connection ports for compressed air to advance and retract the piston rod in precise linear motion. Its compact overall length of 202 mm combined with a 70 mm stroke makes it suitable for applications requiring space-efficient pneumatic actuation.

The cylinder operates with double acting action for accurate linear movement control. It features flexible elastomer cushioning rings to minimize impact wear. The piston rod is single type with a male thread size of 1/8 inch G for easy attachments.

Designed according to ISO 6432 standard for metric mounting movement. Constructed with corrosion-resistant high alloy steel for durability. Supports G 1/8 pneumatic connections for reliable fluid power integration. Flexible mounting options with accessories allow versatile installation.

Suitable for industrial automation, manufacturing, and pneumatic tooling.

Festo pneumatic cylinders are widely used in industrial tools and equipment, hydraulic and pneumatic systems, manufacturing automation, and various pneumatic actuation tasks. This DSNU-20-70-P-A model offers robust construction, flexible mounting, and reliable double acting operation, making it suitable for use in laboratories, commercial production environments, automotive assembly, and fluid power machinery.
