Molex 12-Way IDC Connector Female for Surface Mount, 1 Row, 250V ac, 1.2A Current 90816-0012

Free Delivery in India | Lowest Global Shipping Charges

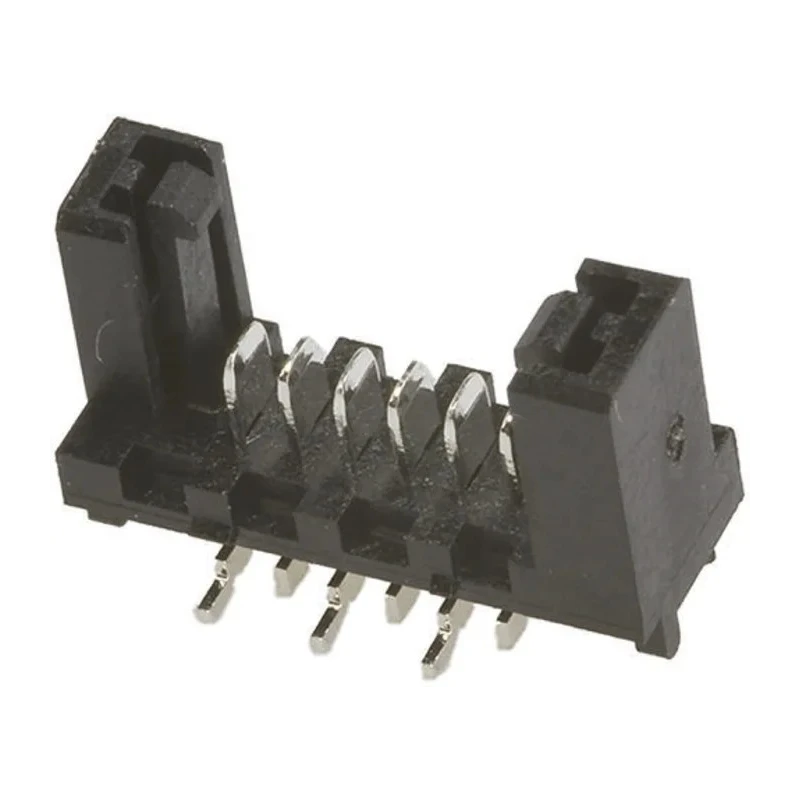

Molex 12-Way IDC Connector Female for Surface Mount, 1 Row, 250V ac, 1.2A Current 90816-0012

Name: Molex 12-Way IDC Connector Female for Surface Mount, 1 Row, 250V ac, 1.2A Current 90816-0012
Brand: Molex
SKU: 215666
Price: 2.08 USD
Availability: InStock



Category IDC Connector Brand Molex Condition New

Specifications

Country of Origin	Ireland
Voltage	250V ac
Brand	Molex
Orientation	Straight
Current	1.2A
Mount Type	Surface
Housing Material	Polyphthalamide
Contact Material	Brass
Series	Picoflex
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Unshrouded

Key Features

This connector features a current rating of 1.2A and a voltage rating of 250V ac.
Designed with a 1.27mm pitch for compact PCB mounting.
Constructed from brass contacts with tin plating and polyphthalamide housing for durability.
Capable of operating in temperatures ranging from -40°C to 105°C, suitable for harsh environments.
Surface mount termination type with a straight orientation for easy assembly.
Unshrouded female connector, compatible with Molex Picoflex PF-50 Series connectors.
Designed with positive latch and polarization for secure retention and correct mating.
Ideal for automotive, consumer electronics, industrial, laboratory, and manufacturing applications.

Product Description

The Molex 90816-0012 12-Way IDC Connector Female for Surface Mount is a high-quality electrical connector designed for reliable wire-to-board connections. It features 12 female contacts arranged in a single row with a 1.27mm pitch, supporting a maximum current of 1.2 amperes and a voltage rating of 250V ac.

Constructed with brass contacts plated with tin, the connector ensures excellent conductivity and corrosion resistance. The housing material is polyphthalamide, which provides mechanical strength and thermal stability, allowing operation over a wide temperature range from -40°C to 105°C.

This connector has an unshrouded design with a straight orientation and surface mount termination type, allowing for efficient PCB assembly and compact footprint. The Picoflex series design includes a positive latch mechanism and polarized side posts with PC pegs that enhance mating reliability and retention, reducing risk of disconnections in vibration-prone environments.

The connector is compatible with the Molex 90327 series connectors, commonly used in automotive, consumer electronics, industrial, laboratory, manufacturing, and HVAC sectors for secure and compact wiring solutions. Its low profile and 50% space saving compared to traditional pitch connectors make it suitable for high-density applications. The connector is designed and manufactured in Ireland, adhering to strict quality standards to ensure performance and durability.

This 12-way female IDC connector supports reliable 1.2A current and 250V ac voltage ratings. It utilizes a 1.27mm pitch and surface mount technology for PCB applications. The housing is made of robust polyphthalamide with brass tin-plated contacts.

Operates effectively within -40°C to 105°C temperature range. Features positive latch retention and polarization for secure mating. Ideal for automotive, consumer electronics, and industrial environments. Provides 50% space savings and low profile in high-density setups.

Manufactured in Ireland for assured quality compliance.
